神钢零件查询(SK160LC-6E) - DYNAMIC ACERA EXCAVATOR 08/2004 ASN YM03U0523 (8/04-12/07) (01-060) - DRYER ASSY, AIR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
949 次

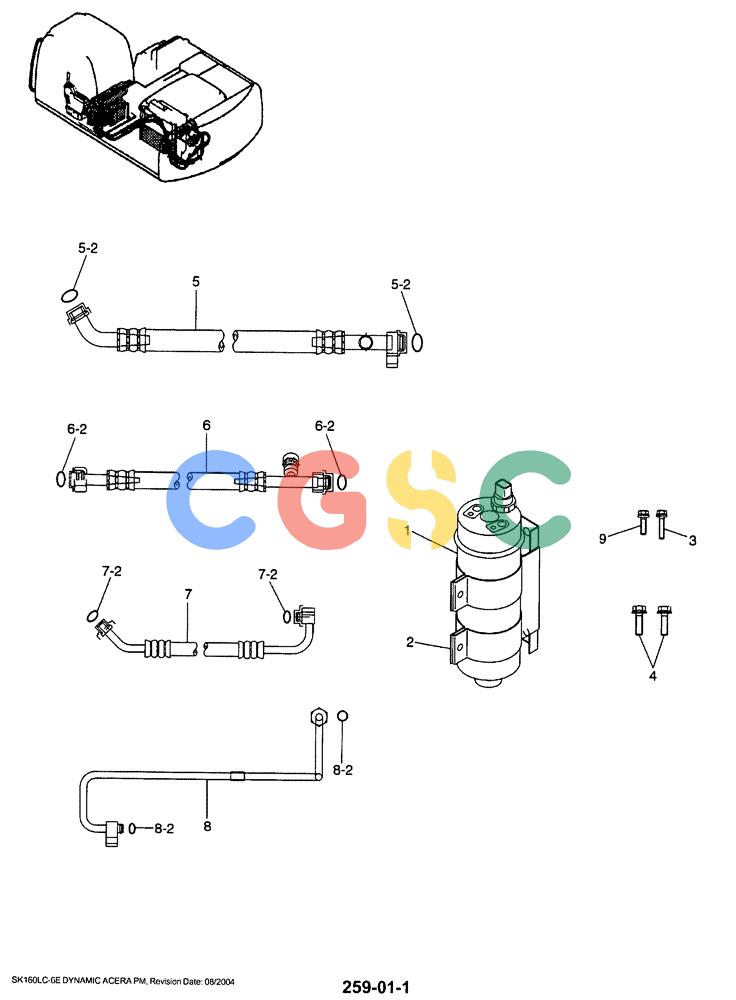

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YM96V00003F1 | [1] | RECEIVER-DRYER,Air Conditioner | KOBDRYER ASSY, AIR |
| 1. | YT54S00002P1 | [1] | RECEIVER-DRYER | KOBSensor NSS |
| 2. | YN20M01355P1 | [1] | BRACKET | KOB |
| 3. | YT96V00001S010 | [1] | CAP | KOBScrew -- M06x25mm Long -- Receiver |
| 4. | YT96V00001S009 | [2] | SCREW | KOBScrew -- M08x25mm Long -- Compressor |
| 5. | YM20M01024F1 | [1] | HOSE ASSY. | KOB(S-HOSE) |
| 5-2. | 2445Z1604D5 | [2] | O-RING | KOB5/8 in |
| 6. | YM20M01025F1 | [1] | HOSE ASSY. | KOB(D-HOSE) |
| 6-2. | 2445Z1604D4 | [2] | O-RING | KOB1/2 in |
| 7. | YM20M01026F1 | [1] | HOSE ASSY. | KOB(L-HOSE) |
| 7-2. | 2445Z1604D6 | [2] | O-RING | KOB08mm |
| 8. | YM20M01020F1 | [1] | RIGID TUBE | KOB(L-HOSE) |
| 8-2. | 2445Z1604D6 | [2] | O-RING | KOB08mm |
| 9. | YT20M00009S005 | [1] | BOLT | KOB(FOR RECEVER) |
