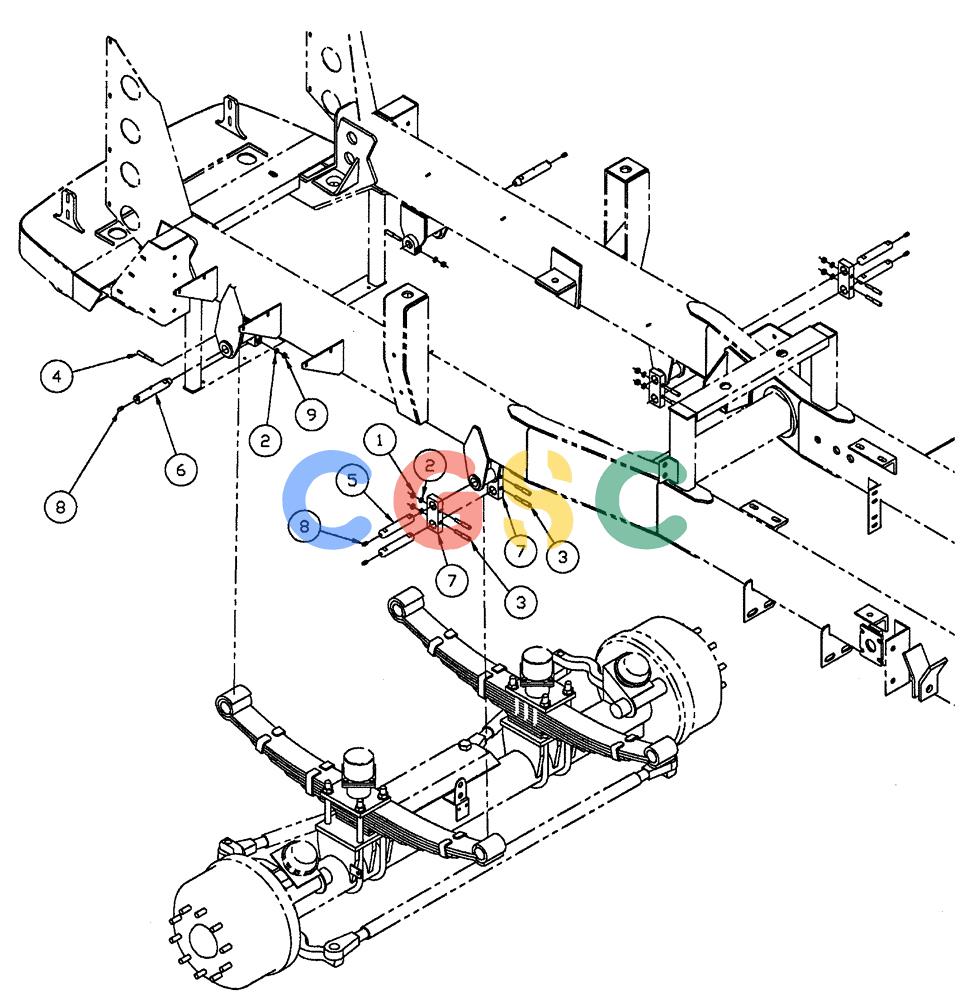

凯斯零件查询(FLX4010) - FLOATER (8/04-8/06) (04-002) - FRONT AXLE INSTALL KIT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
868 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
88902
|
[8] |
NUT,3/8"-16
|
NH
|
| 2. |
86632588
|
[10] |
WASHER,0.41" ID x 0.81" OD x 0.07" Thk
|
FOR
|
| 3. |
BN2294181
|
[8] |
KEY
|
BN
Draw, #113
|
| 4. |
BN2294185
|
[2] |
KEY
|
BN
Draw LP#107 Flagg
|
| 5. |
BN2391613
|
[4] |
PIN,31.7mm OD x 165.1mm L
|
BN
Shackle B1367-55
|
| 6. |
BN2391614
|
[2] |
PIN,31.7mm OD x 178.82mm L
|
BN
Front B1366-55 Flagg
|
| 7. |
BN2394958
|
[4] |
SHACKLE
|
BN
Front, E397-55
|
| 8. |
BN2651850
|
[6] |
LUBE NIPPLE
|
BN
1/8 STR 5000 Superseded by part number: 80710
|
| 9. |
87343675
|
[2] |
NUT
|
BN
Hex, 3/8"-24, G5
|
