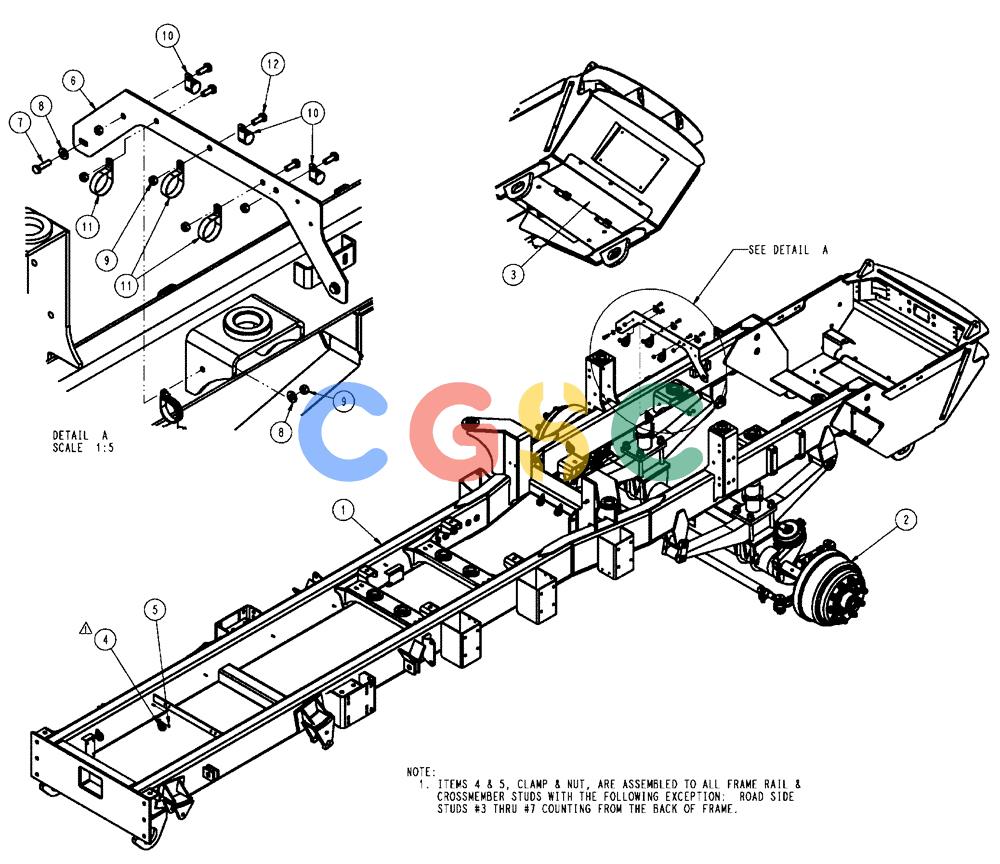

凯斯零件查询(FLX4010) - FLOATER (8/04-8/06) (04-013) - FRAME GROUP Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
946 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
342556A1
|
[1] |
FRAME
|
BN
complete
|
| 2. |
87267220
|
[1] |
Axle Group, Front, Complete
|
|
| 2A. |
NS
|
[1] |
NOT SERVICED
|
BAS
Axle Spring Group, Front
|
| 4. |
BN2399320
|
[15] |
CLAMP
|
BN
Loom, Del City #2032
|
| 5. |
353308
|
[15] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 6. |
87268764
|
[1] |
PLATE
|
BN
Harness/SOL, Mount
|
| 7. |
9706704
|
[2] |
BOLT,Hex, M10 x 1.5 x 41.58mm, Cl 8.8
|
NH
|
| 8. |
86625253
|
[4] |
WASHER,11mm ID x 24mm OD x 2mm Thk
|
FAR
|
| 9. |
100037
|
[7] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 10. |
9827902
|
[3] |
CLAMP,25.4mm, Coat, 10.3mm Bolt Hole, P Type
|
WIN
|
| 11. |
515-23508
|
[3] |
CLAMP,2", Insul, 3/8" Bolt
|
CAS
Superseded by part number: 87552805
|
| 12. |
11106231
|
[5] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9
|
LEC
|
