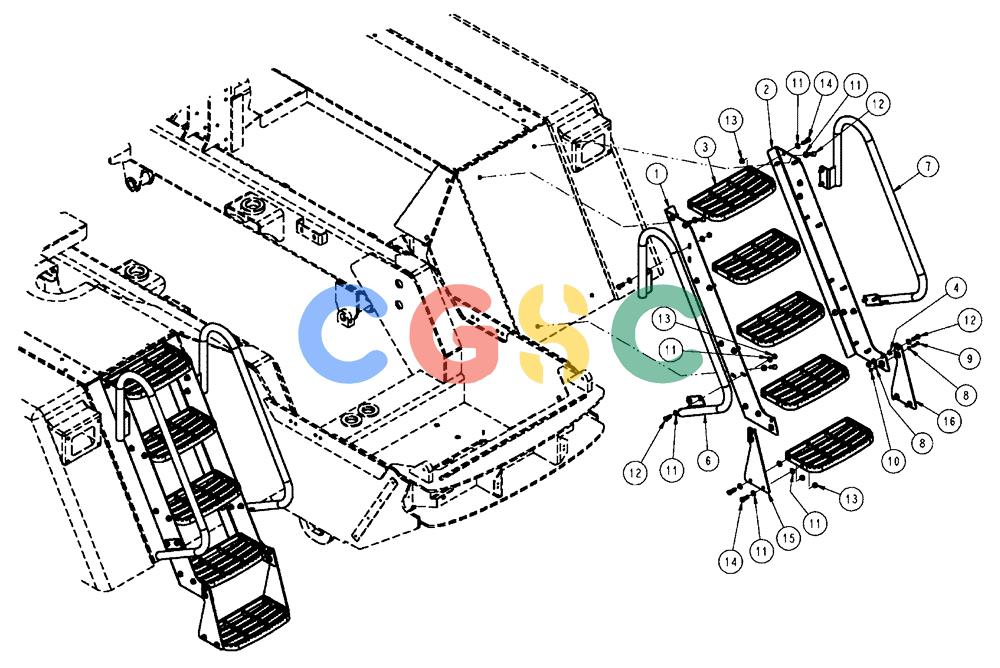

凯斯零件查询(FLX4010) - FLOATER (8/04-8/06) (04-012) - LADDER GROUP, FRONT Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
377 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87267055
|
[2] |
RAIL ASSY.
|
BN
RH
|
| 2. |
87267056
|
[2] |
RAIL ASSY.
|
BN
LH
|
| 3. |
87270245
|
[10] |
STEP
|
CAS
Black Aluminum
|
| 4. |
343810A1
|
[4] |
SPACER
|
BN
step extension hinge
|
| 6. |
344137A1
|
[2] |
HANDRAIL
|
BN
ladder
|
| 7. |
344138A1
|
[2] |
HANDRAIL
|
BN
Ladder
|
| 8. |
86588450
|
[8] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 9. |
814-6030
|
[4] |
BOLT,Hex, M6 x 1 x 30mm, Cl 8.8
|
CAS
Superseded by part number: 87317695
|
| 10. |
353308
|
[4] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 11. |
86625252
|
[120] |
WASHER,10.8mm ID x 21.5mm OD x 2.5mm Thk
|
FAR
|
| 12. |
11106231
|
[20] |
BOLT,Hex, M10 x 1.5 x 25mm, Cl 10.9
|
LEC
|
| 13. |
100037
|
[60] |
LOCK NUT,M10 x 1.5, Cl 8
|
NH
|
| 14. |
43140
|
[40] |
BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8
|
NH
|
| 15. |
87268760
|
[2] |
SIDE RAIL
|
TYR
Step Extension, RH
|
| 16. |
87268761
|
[2] |
SIDE RAIL
|
TYR
Step Extension, LH
|
