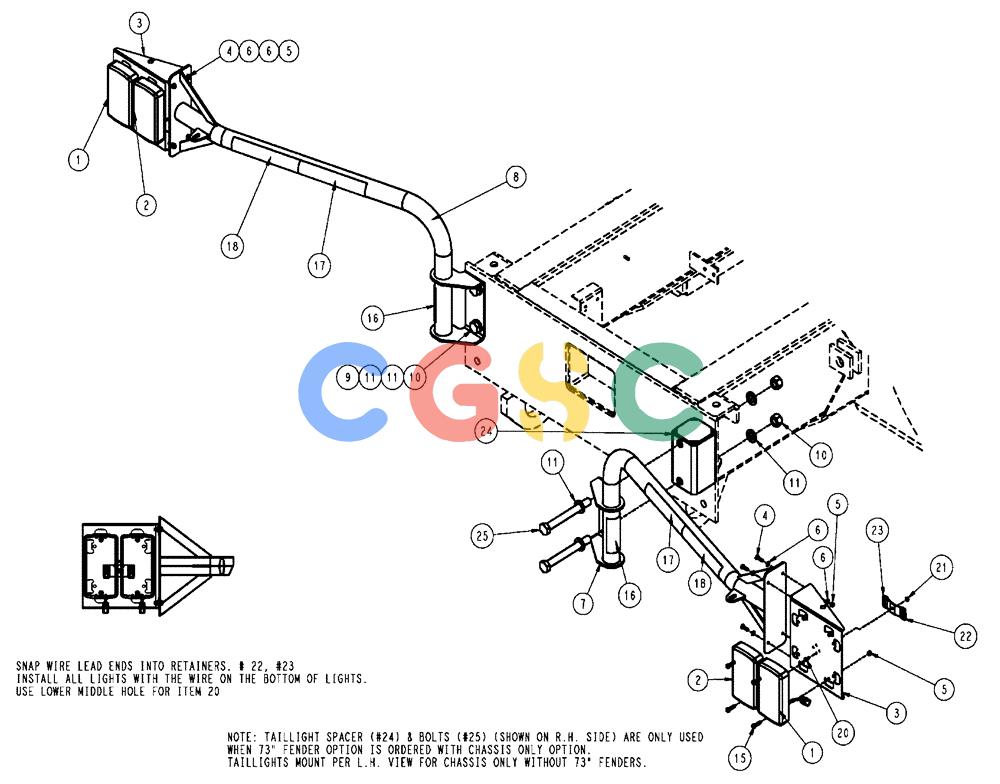

凯斯零件查询(FLX4010) - FLOATER (8/04-8/06) (04-015) - TAIL LIGHT ASSEMBLY Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
186 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
BN325078
|
[2] |
LIGHT
|
BN
Turn, Led Amber, 12V, 36 LED Pattern Superseded by part number: 84385299
|
| 1. |
84385299
|
[2] |
LAMP
|
BN
Turn, LED Amber, 12V, 24 LED Pattern
|
| 2. |
BN325077
|
[2] |
LAMP, TAIL
|
BN
LIGHT, TAIL Led Red, 12V, 36 LED Pattern Superseded by part number: 84385294
|
| 2. |
84385294
|
[2] |
LAMP
|
BN
LED Red, 12V, 24 LED Pattern
|
| 3. |
87267089
|
[2] |
MOUNTING PLATE
|
BN
Tail Light, (LED)
|
| 4. |
120100
|
[8] |
BOLT,M6 x 20mm, Cl 8.8
|
NH
|
| 5. |
353308
|
[16] |
NUT,M6 x 1.0, Cl 8
|
NH
|
| 6. |
86588450
|
[16] |
WASHER,6.6mm ID x 12mm OD x 1.6mm Thk
|
ZED
|
| 7. |
BN322544
|
[1] |
ARM
|
TYR
Taillight, CS
|
| 8. |
BN322545
|
[1] |
ARM
|
TYR
Tail light, RS
|
| 9. |
86503156
|
[4] |
BOLT,Hex, M20 x 2.5 x 55mm, Cl 8.8, Full Thd
|
NH
|
| 10. |
87024336
|
[4] |
NUT,M20 x 2.5, Cl 10
|
GI
|
| 11. |
86625260
|
[8] |
WASHER,21.8mm ID x 37.5mm OD x 4mm Thk
|
FAR
|
| 15. |
311863A1
|
[8] |
REFLECTOR
|
CAS
Retroreflective Red
|
| 17. |
311865A1
|
[2] |
REFLECTOR
|
CAS
fluorescent orange
|
| 20. |
BN52348
|
[2] |
BOLT,Phil Pan Hd, #10 - 32 x 1/2", Stainless
|
CUR
10-32 X 1/2 SSOH, Phillip
|
| 21. |
BN50050
|
[2] |
NUT
|
CUR
10-32 Hex Superseded by part number: 225-30210
|
| 22. |
87267087
|
[2] |
RETAINER
|
BN
Assembly, Deutsch LH Superseded by part number: 87029192B, 87716495, 87267086
|
| 23. |
87267088
|
[2] |
RETAINER
|
BN
Assembly, Deutsch RH Superseded by part number: 87716495, 87267086, 87029192B
|
| 24. |
87269749
|
[2] |
TUBE
|
BN
Spacer
|
| 25. |
87310605
|
[4] |
BOLT,M20 x 180, 10.9, DOR
|
BN
|
