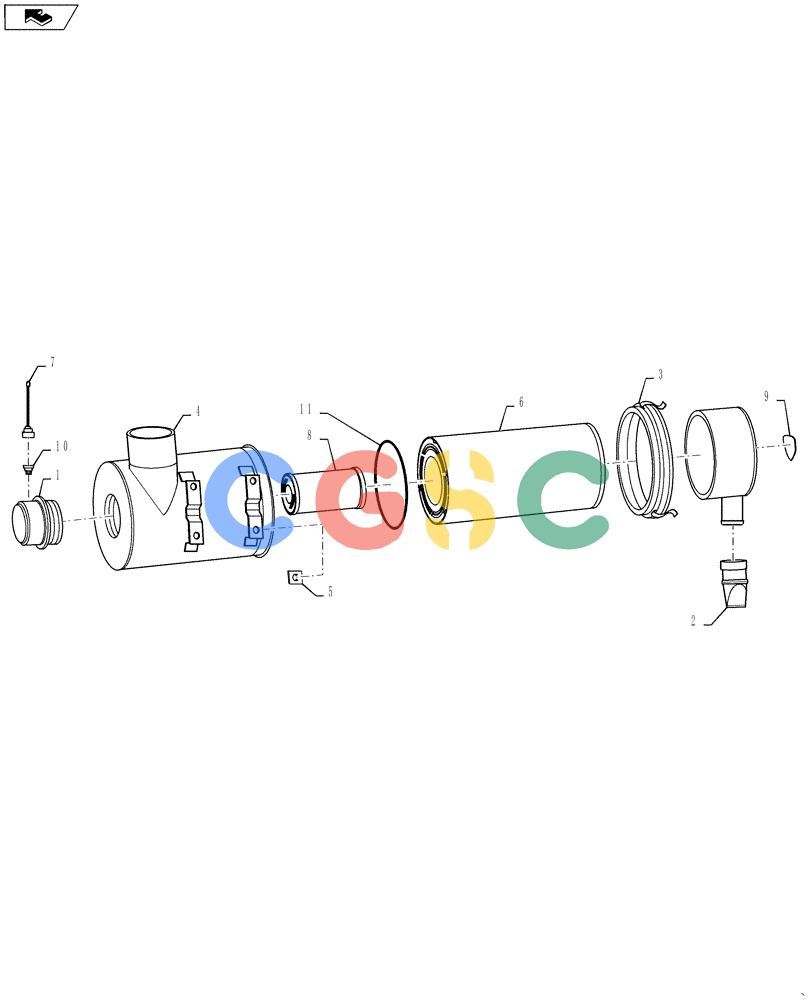

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (10.202.AB) - AIR CLEANER, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
893 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | 87570248 | [1] | AIR FILTER | SMAssembly (YM11P00009F1) |
| 1. | 87600533 | [1] | COVER | SMBody Assembly (YM11P00009S001) |
| 2. | 72211065 | [1] | VALVE | SMValve Assembly (YM11P00009S002) Superseded by part number: 8604231 |
| 3. | 87600534 | [1] | CAP | SMCover Assembly (YM11P00009S003) |
| 4. | YM11P00009S004 | [1] | BODY | KOBBody Assembly |
| 5. | YM11P00009S005 | [4] | NUT | KOBNut |
| 6. | 87577657 | [1] | AIR FILTER | SMElement, Outer (Primary) (YM11P01033P1) Superseded by part number: 87704248 |
| 7. | 72211062 | [1] | SENSOR | SMIndicator, Air Filter Restriction (YM11P00009S007) |
| 8. | 87577656 | [1] | AIR FILTER | SMElement, Inner (Secondary) (YM11P01032P1) Superseded by part number: 87683000 |
| 9. | YM11P00009S009 | [1] | LABEL | KOBLabel |
| 10. | EB11P00001S006 | [1] | ADAPTER | KOBFilter |
| 11. | YE11P00005S005 | [1] | O-RING | KOBO-Ring |
