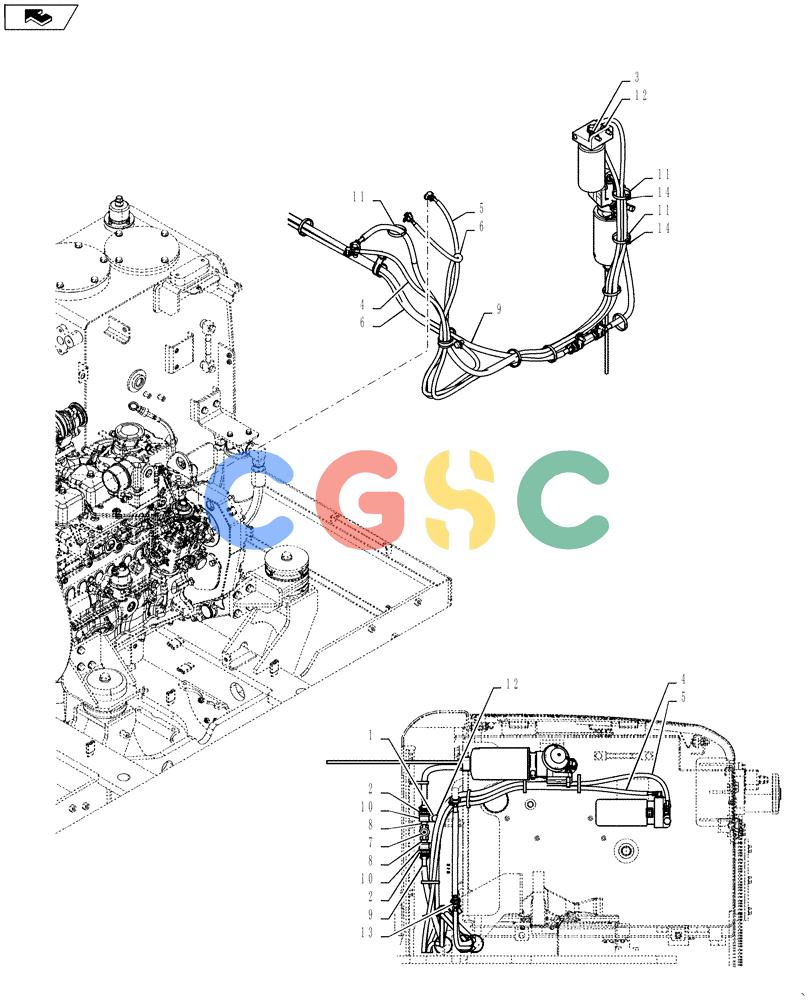

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (10.210.AF[02]) - FUEL LINE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
882 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 11106034 | [4] | BOLT,Hex, M10 x 20, 10.9, Full Thd | BUR(ZS18C10020) Superseded by part number: 11106031 |
| 2. | 8602542 | [5] | ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID | FAR(LB21P01005P1) Superseded by part number: 47728714 |
| 3. | 11106434 | [4] | BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd | LEC(ZS18C10030) Superseded by part number: 11106431 |
| 4. | YN21P01044P1 | [1] | FUEL HOSE,6mm ID x 2200mm L | KOB |
| 5. | YM21P01006P1 | [1] | FUEL HOSE,6mm ID x 2350mm L | KOB |
| 6. | YM21P01002P1 | [1] | FUEL HOSE,6mm ID x 2800mm L | KOB |
| 7. | YN25V00006P1 | [1] | SHUT-OFF VALVE | KOB |
| 8. | YN21P01062P1 | [2] | HYD CONNECTOR | KOB |
| 9. | YB21P01029P1 | [1] | FLEXIBLE HOSE,10mm ID x 2090mm L | SM |
| 10. | 71405770 | [2] | CLAMP,25mm ID, 15mm Bolt Hole, P Type | LEC(EW02E01026D5) Superseded by part number: 84551318 |
| 11. | 72951499 | [10] | CLIP | IMO(PY01P01043D8) Superseded by part number: PY01P01043D8 |
| 12. | 14496631 | [8] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LEC(ZW16X10000) Superseded by part number: 14496621 |
| 13. | YN21P01141P1 | [1] | HYD CONNECTOR,M12 x 1.5 | SM |
| 14. | 87526680 | [2] | RETAINER COLLAR | SM(YN13E01375P1) Superseded by part number: YN13E01375P1 |
