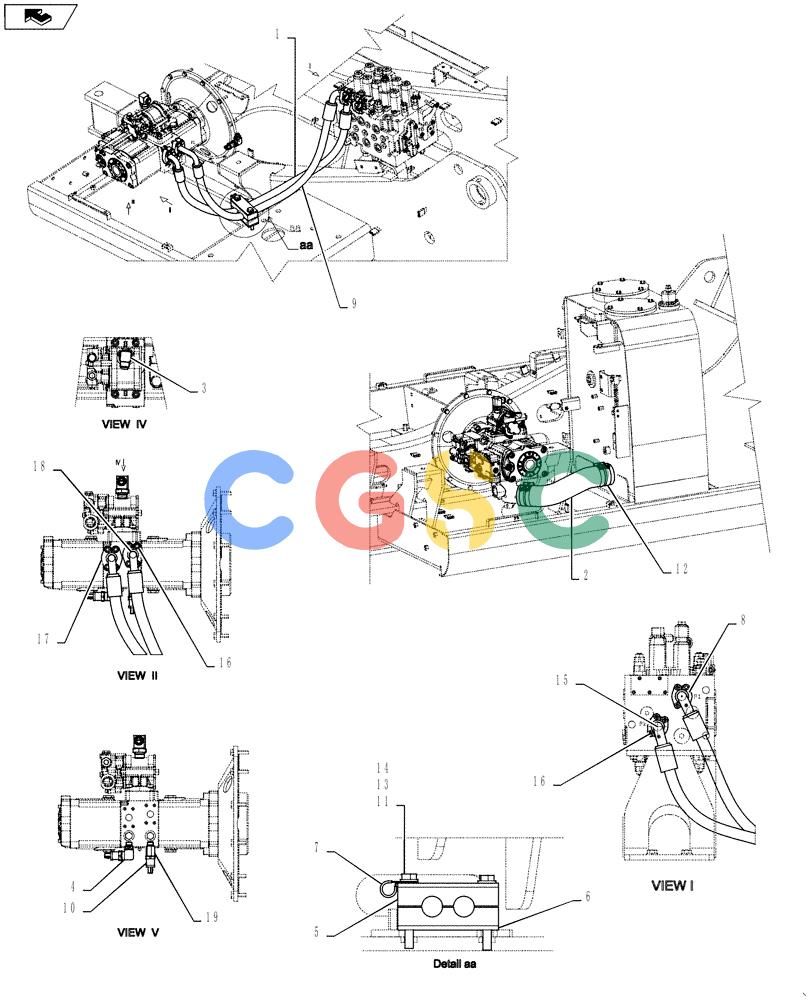

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.310.AJ[01]) - HYD. LINE, PUMP (BASE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
209 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM30H01044P1 | [1] | HOSE,19.05mm ID x 1250mm L, SAE 100R13 | KOB(CNH 87661160) |
| 2. | YB30H01036P1 | [1] | FLEXIBLE HOSE | SM |
| 3. | ZH32X12000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 3/4" x PF 3/4", O-Ring | KOB(CNH 72214734) |
| 4. | YN52S00048P1 | [2] | SENSOR | SMPump P1 & P2, Pressure (High Pressure) (Incls. O-Ring ZD12P01400) (CNH 87524903) Superseded by part number: LS52S00015P1 |
| 5. | YB30H01037P1 | [2] | GASKET | SM |
| 6. | YB30H01038P1 | [2] | PLATE | SM |
| 7. | EW02E01026D4 | [1] | CLIP | KOB(CNH 71405745) Superseded by part number: 84553276 |
| 8. | ZE12X16000 | [4] | CLAMP | KOB(CNH 71404311) |
| 9. | YM30H01045P1 | [1] | HOSE,19.05mm ID x 1250mm L | KOB(CNH 87661161) |
| 10. | 72150540 | [1] | ELBOW | IMO(YT42H01128P1) Superseded by part number: YT42H01128P1 |
| 11. | ZY26X06056 | [2] | SPACER | KOB(CNH 87338503) |
| 12. | YB05P01167D7 | [4] | CLAMP | KOB(CNH 87338503) |
| 13. | ZS18C12100 | [2] | SCREW,Hex, M12 x 100mm | KOB(CNH 11114234) |
| 14. | ZW16H12000 | [2] | WASHER | KOB(CNH 14496731) ID 13 x OD 26 x Th 3.2mm |
| 15. | 45Z91D150 | [2] | O-RING | KOB(CNH 70924200) |
| 16. | HM83C10035G1 | [16] | BOLT | KOB |
| 17. | ZE13X12000 | [4] | CLAMP | KOB(CNH 71418893) |
| 18. | ZD12P02600 | [2] | O-RING | KOB(CNH 70924110) |
| 19. | 87688353 | [1] | HYD CONNECTOR | SM(LS30H01024P1) Superseded by part number: LS30H01024P1 |
