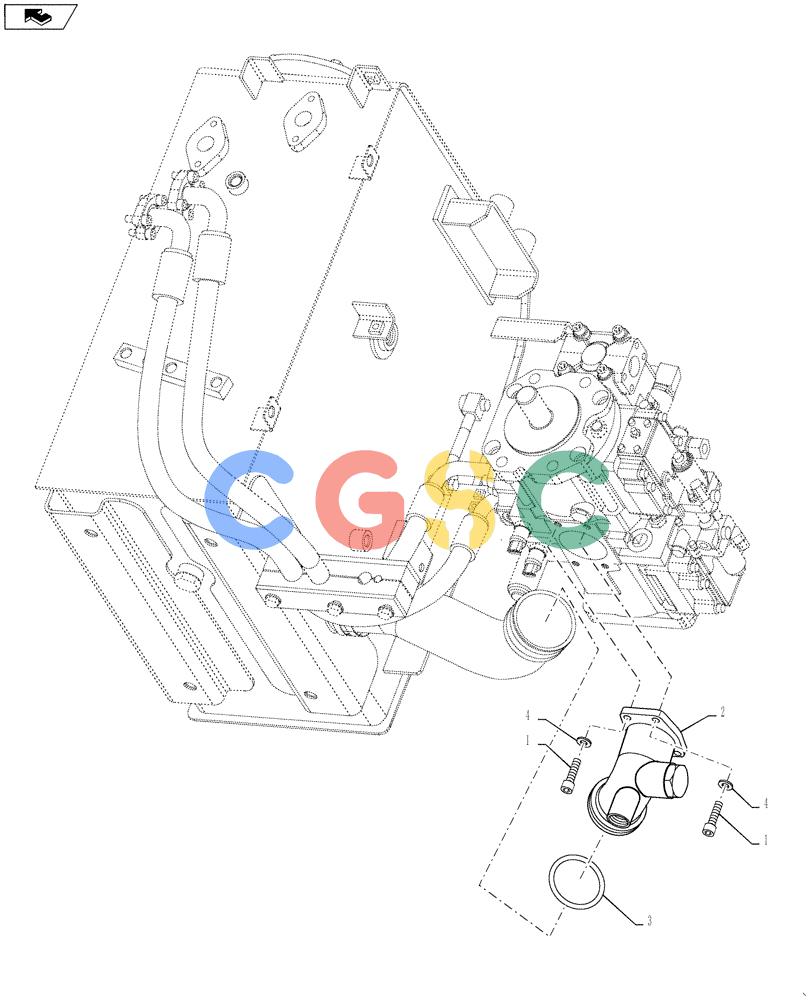

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.310.AJ[02]) - HYD. LINE, PUMP (BASE) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
506 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 14422034 | [4] | HEX SOC SCREW,M12 x 1.75 x 30mm, Cl 10.9, Full Thd | LEC(14422034) |
| 2. | 87530582 | [1] | ELBOW | SM(YN30H01208P1) Superseded by part number: YN30H01208P1 |
| 3. | 87397561 | [1] | O-RING,69.44mm ID x 3.53mm Width | SM(45Z91D104) Superseded by part number: 923582 |
| 4. | 10517074 | [4] | LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk | TTF(ZW26K12000) Superseded by part number: 412123 |
