神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.354.AA[01]) - SWIVEL CONNECTION, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
336 次

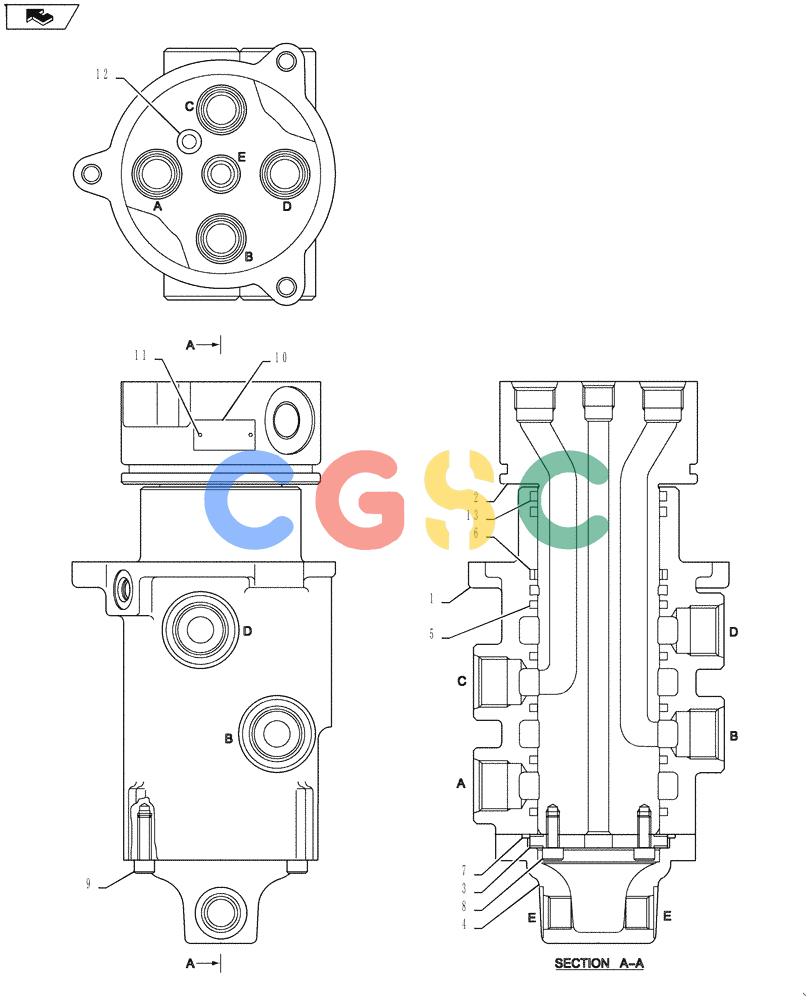

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN55V00053F1 | [1] | CENTER JOINT | KOBSwivel, Incl 2 - 14 |
| 2. | NSS | [1] | NOT SOLD SEPARAT | CONBody |
| 3. | NSS | [1] | NOT SOLD SEPARAT | CONStem |
| 4. | 2414T1991 | [1] | THRUST PLATE | KOB Superseded by part number: YN55V01115P1 |
| 5. | YN55V01062P1 | [1] | GUARD | SM |
| 6. | YN55V01057P1 | [5] | SEAL,80.5mm ID x 91mm OD x 4.9mm Thk | KOB |
| 7. | YN55V01049P1 | [1] | SEAL,80.15mm ID x 91mm OD x 6mm Thk | KOB |
| 8. | ZD11G09500 | [1] | O-RING,94.40mm ID x 100.60mm OD x 3.10mm | KOB |
| 9. | ZS23C08020 | [2] | SCREW,Hex Socket Head, M8 x 20mm | KOBCap |
| 10. | ZS23C08030 | [3] | SCREW,Hex Socket Head, M8 x 30mm | KOBCap Superseded by part number: ZS28C08030 |
| 11. | YN22T00194P1 | [1] | TYPE PLATE | KOBName |
| 12. | 2420Z1036D3 | [2] | CLEVIS | KOB |
| 13. | PV52D01007P1 | [1] | PLUG | KOB |
| 14. | 2445R152D1 | [2] | O-RING,5.7mm Thk x 79.6mm ID, 70 Duro | KOB |
