神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.357.AJ) - SOLENOID VALVE, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
323 次

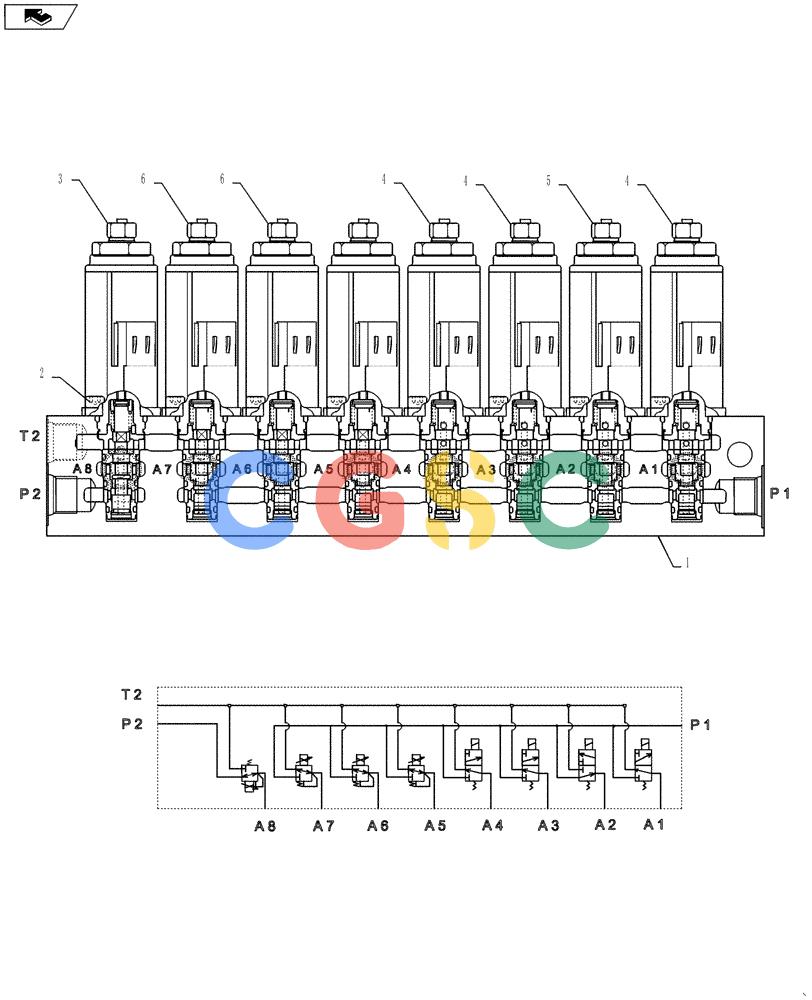

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN35V00047F2 | [1] | HYDRAULIC VALVE | SMValve Assy, Solenoid Superseded by part number: YN35V00047F3 |
| 1. | YN35V00047S101 | [1] | CASE | KOB |
| 2. | YN35V00047S171 | [16] | SCREW,Hex Socket Head, M5 x 12mm | SM Superseded by part number: ZS23C05012 |
| 3. | YN35V00049F1 | [1] | SOLENOID VALVE | KOBArm 2 Speed Solenoid, Includes Refs 7 - 11 |
| 4. | YN35V00050F1 | [3] | SOLENOID VALVE,Cartridge W/Coil | KOBAttachment Boost, Travel 1, 2 Speed, Lever Lock, Solenoid, Includes Refs 7 - 11 Superseded by part number: YN35V00061F1 |
| 5. | YN35V00051F1 | [1] | SOLENOID VALVE | KOBSwing Parking Solenoid, Incl Refs 7 - 11 |
| 6. | YN35V00048F2 | [3] | SOLENOID VALVE | SMSolenoid ( P2 Unload, Travel Priority, P1 Unload) |
| 7. | YN35V00004S361 | [1] | O-RING | KOBNot Shown |
| 8. | YN35V00004S362 | [1] | O-RING | KOBNot Shown |
| 9. | YN35V00004S363 | [1] | O-RING | KOBNot Shown |
| 10. | ZD12P02000 | [1] | O-RING,2.4mm Thk x 19.8mm ID, 90 Duro | KOBNot Shown |
| 11. | 72209824 | [1] | O-RING | IMONot Shown Superseded by part number: ZD12P02000 |
