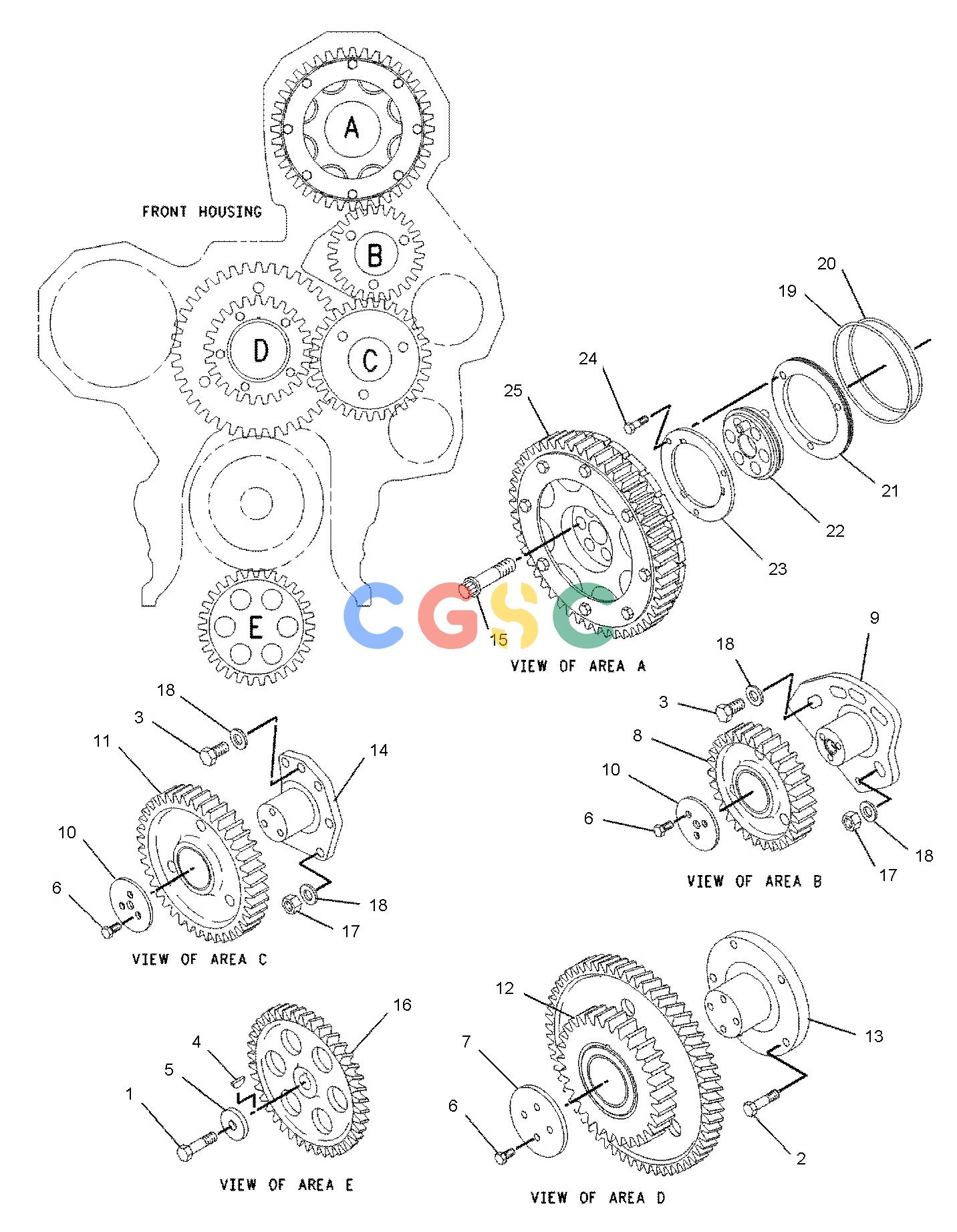

卡特零件查询（735） 124-6818: GEAR GP-FRONT
广数供应链运营团队, 15 02月, 2025，浏览：
618 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 0S-1571 | [1] | BOLT(3/8-16X1.75-IN) | |
| 2. | 2J-3118 | [5] | BOLT-LOCKING(3/8-16X1.25-IN) | |
| 3. | 5P-4142 | [2] | BOLT-LOCKING(3/8-16X1.5-IN) | |
| 4. | 1B-8705 | [1] | KEY-WOODRUFF | |
| 5. | 1P-7346 | [1] | WASHER-HARD(10.2X35X6-MM THK) | |
| 6. | 126-1756 | [10] | BOLT-LOCKING(5/16-18X0.875-IN) | |
| 7. | 112-9217 | [1] | PLATE-THRUST | |
| 8. | 130-4701 | [1] | GEAR AS(56-TEETH) | |
| | 130-4698 | [1] | BUSHING | |
| 9. | 151-5966 | [1] | SHAFT AS-STUB | |
| | 6I-3623 | [1] | DOWEL | |
| 10. | 6I-3624 | [2] | PLATE-THRUST | |
| 11. | 6I-3625 | [1] | GEAR AS(71-TEETH) | |
| | 101-8468 | [1] | BUSHING | |
| 12. | 128-2659 | [1] | GEAR AS(105, 63-TEETH) | |
| | 1B-8705 | [1] | KEY-WOODRUFF | |
| | 131-7123 | [1] | BUSHING | |
| 13. | 6I-3632 | [1] | SHAFT-STUB(CLUSTER) | |
| 14. | 158-3416 | [1] | SHAFT-STUB | |
| 15. | 031-3185 | [6] | BOLT-12 POINT HEAD(5/8-11X3-IN) | |
| 16. | 7E-5661 | [1] | GEAR-OIL PUMP DRIVE(69-TEETH) | |
| 17. | 9S-8752 | [10] | NUT-FULL(3/8-16-THD) | |
| 18. | 9X-6458 | [12] | WASHER-HARD(10.2X22.5X3-MM THK) | |
| 19. | 117-8801 | [1] | SEAL-O-RING | |
| 20. | 5E-8771 | [1] | SEAL-O-RING | |
| 21. | 117-8557 | [1] | PLATE-SEAL | |
| 22. | 128-8853 | [1] | ADAPTER AS | |
| | 6V-3677 | [1] | DOWEL | |
| 23. | 102-5861 | [1] | PLATE-THRUST | |
| 24. | 107-0583 | [3] | BOLT-LOCKING(1/4-20X0.87-IN) | |
| 25. | 136-8884 | [1] | GEAR GP-CAM(96-TEETH) | |
| | 9X-8872 | [8] | BOLT-LOCKING(3/8-16X0.875-IN) | |
