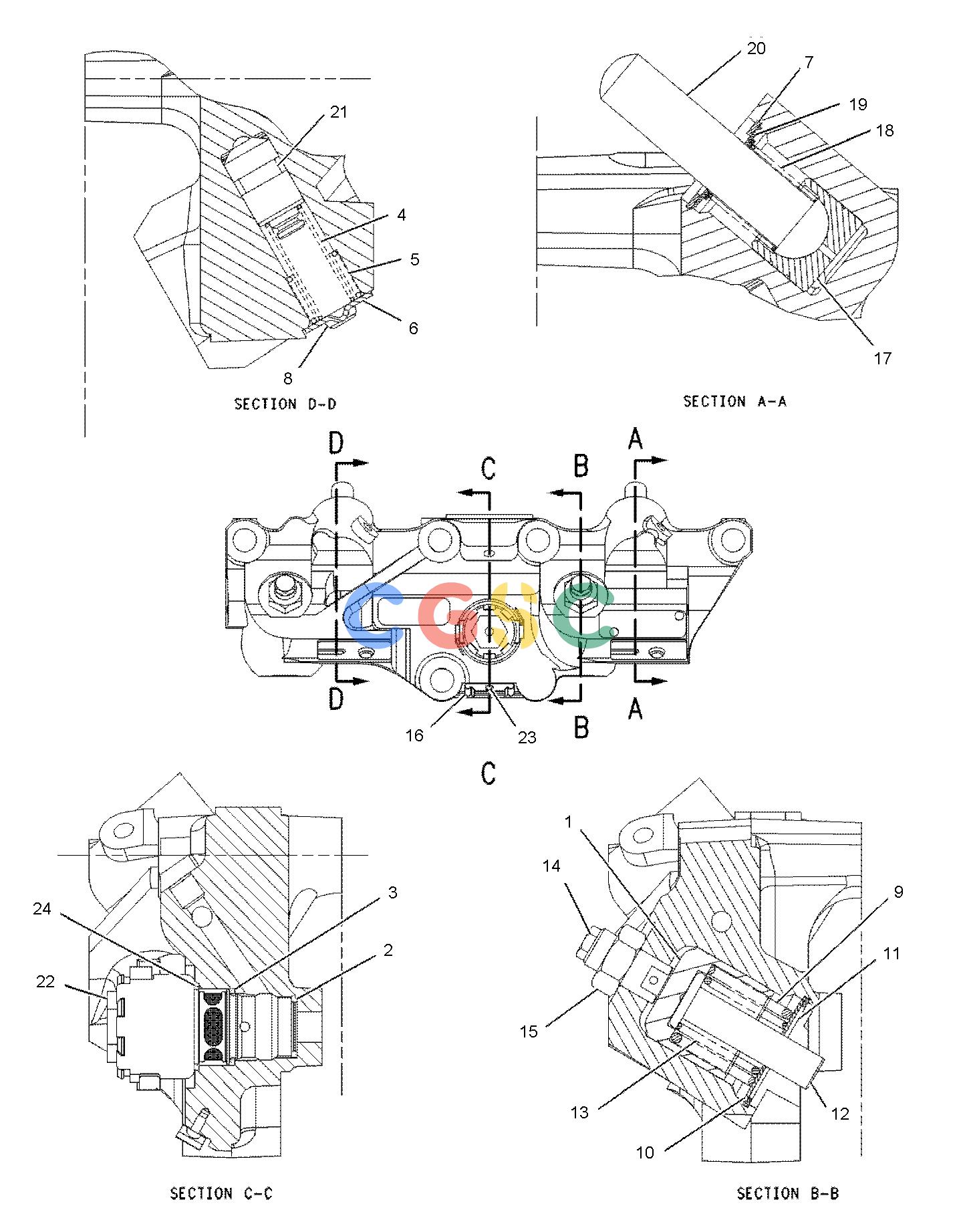

卡特零件查询（735） 189-5950: HOUSING GP-ENGINE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
989 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 143-6580 | [2] | PISTON | |
| 2. | 2U-1493 | [1] | SEAL | |
| 3. | 2U-1492 | [1] | SEAL | |
| 4. | 143-2536 | [2] | SPRING(INNER)(CONTROL VALVE) | |
| 5. | 143-2596 | [2] | SPRING(OUTER)(CONTROL VALVE) | |
| 6. | 143-6589 | [2] | COVER | |
| 7. | 143-6679 | [2] | RING-RETAINING | |
| 8. | 1Q-9551 | [2] | SCREW-BUTTON HEAD(1/2-20X3/8-IN) | |
| 9. | 143-6581 | [2] | SPRING(OUTER)(SLAVE PISTON) | |
| 10. | 143-6588 | [2] | WASHER(12.7X36.1X1.07-MM THK) | |
| 11. | 143-6561 | [2] | RING-RETAINING | |
| 12. | 192-5501 | [2] | PUSHROD AS | |
| 13. | 143-6582 | [2] | SPRING(INNER)(SLAVE PISTON) | |
| 14. | 192-5502 | [2] | SCREW AS-ADJUSTMENT | |
| 15. | 6B-6684 | [2] | NUT-FULL(1/2-20-THD) | |
| 16. | 143-6579 | [1] | CLIP-HARNESS | |
| 17. | 143-6583 | [2] | PISTON(MASTER) | |
| 18. | 143-6584 | [2] | SPRING(MASTER PISTON) | |
| 19. | 164-2025 | [2] | KIT-RETAINER(COMPRESSION BRAKE)(ENGINE BRAKE HOUSING) | |
| | | | (EACH INCLUDES RETAINER WASHERS) |
| 20. | 143-6585 | [2] | PUSHROD(MASTER PISTON) | |
| 21. | 102-8780 | [2] | SPOOL AS-VALVE | |
| 22. | 163-1553 | [1] | SOLENOID(24-VOLT)(ENGINE BRAKE) | |
| 23. | 143-6680 | [1] | SCREW-DRIVE | |
| 24. | 143-6642 | [1] | SEAL | |
