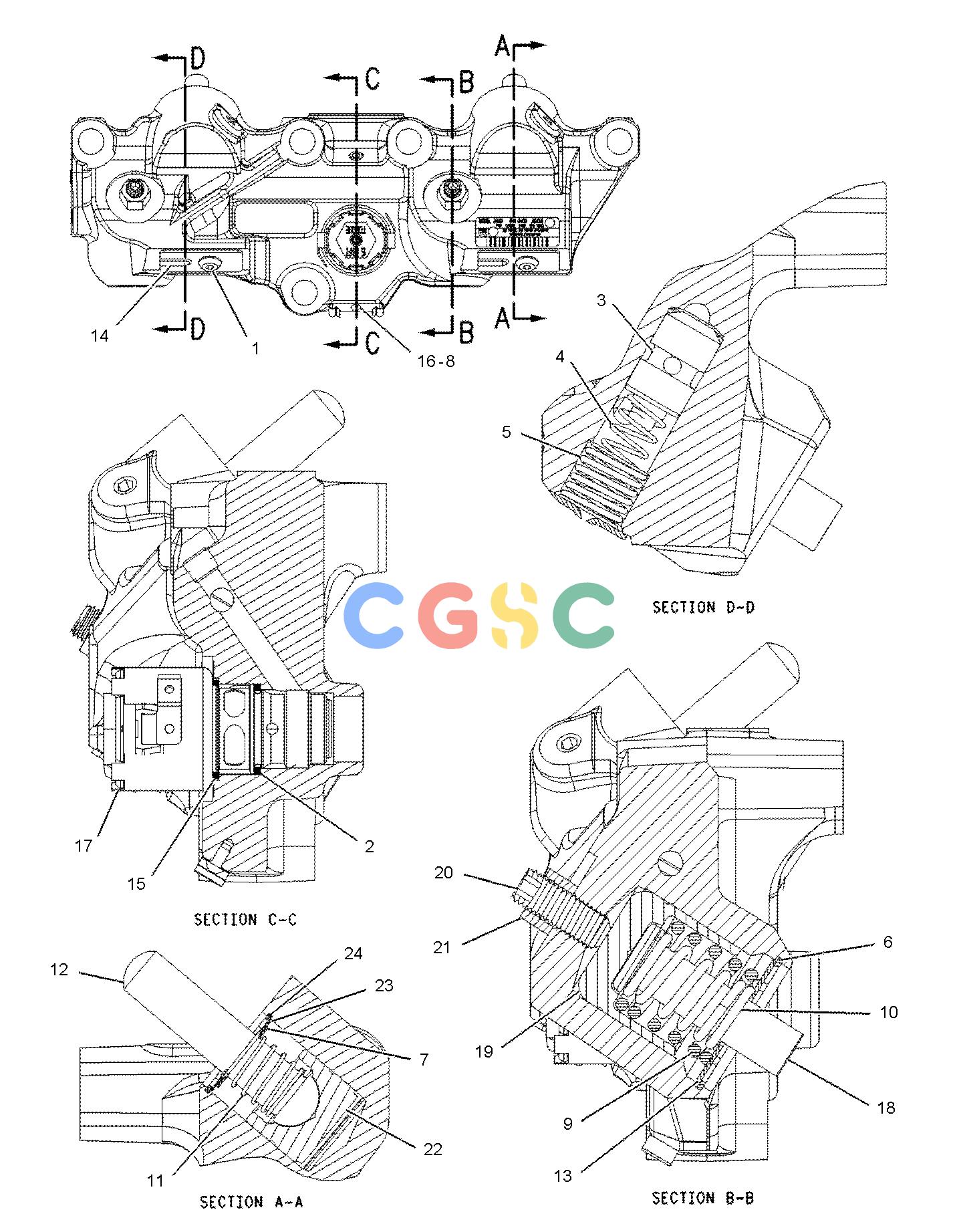

卡特零件查询（735） 221-1197: HOUSING GP-ENGINE BRAKE
广数供应链运营团队, 15 02月, 2025，浏览：
798 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1Q-9551 | [2] | SCREW-BUTTON HEAD(1/2-20X3/8-IN) | |
| 2. | 2U-1492 | [1] | SEAL | |
| 3. | 102-8780 | [2] | SPOOL AS-VALVE | |
| 4. | 143-2536 | [2] | SPRING(INNER)(CONTROL VALVE) | |
| 5. | 143-2596 | [2] | SPRING(OUTER)(CONTROL VALVE) | |
| 6. | 143-6561 | [2] | RING-RETAINING | |
| 7. | 143-6575 | [2] | WASHER(12.7X20.2X0.66-MM THK) | |
| 8. | 143-6579 | [1] | CLIP-HARNESS | |
| 9. | 143-6581 | [2] | SPRING(OUTER)(SLAVE PISTON) | |
| 10. | 143-6582 | [2] | SPRING(INNER)(SLAVE PISTON) | |
| 11. | 143-6584 | [2] | SPRING(MASTER PISTON) | |
| 12. | 143-6585 | [2] | PUSHROD(MASTER PISTON) | |
| 13. | 143-6588 | [2] | WASHER(12.7X36.1X1.07-MM THK) | |
| 14. | 143-6589 | [2] | COVER | |
| 15. | 143-6642 | [1] | SEAL | |
| 16. | 143-6680 | [3] | SCREW-DRIVE | |
| 17. | 163-1553 | [1] | SOLENOID(24-VOLT)(ENGINE BRAKE) | |
| 18. | 192-5501 | [2] | PUSHROD AS(SLAVE PISTON) | |
| 19. | 221-1190 | [2] | PISTON(SLAVE) | |
| 20. | 221-1191 | [2] | SCREW | |
| 21. | 221-1192 | [2] | NUT(3/8-24 THD) | |
| 22. | 221-1193 | [2] | PISTON(MASTER) | |
| 23. | 221-1194 | [2] | WASHER | |
| 24. | 221-1195 | [2] | RING-RETAINING | |
