神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (35.726.AE) - CONTROL LEVER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
218 次

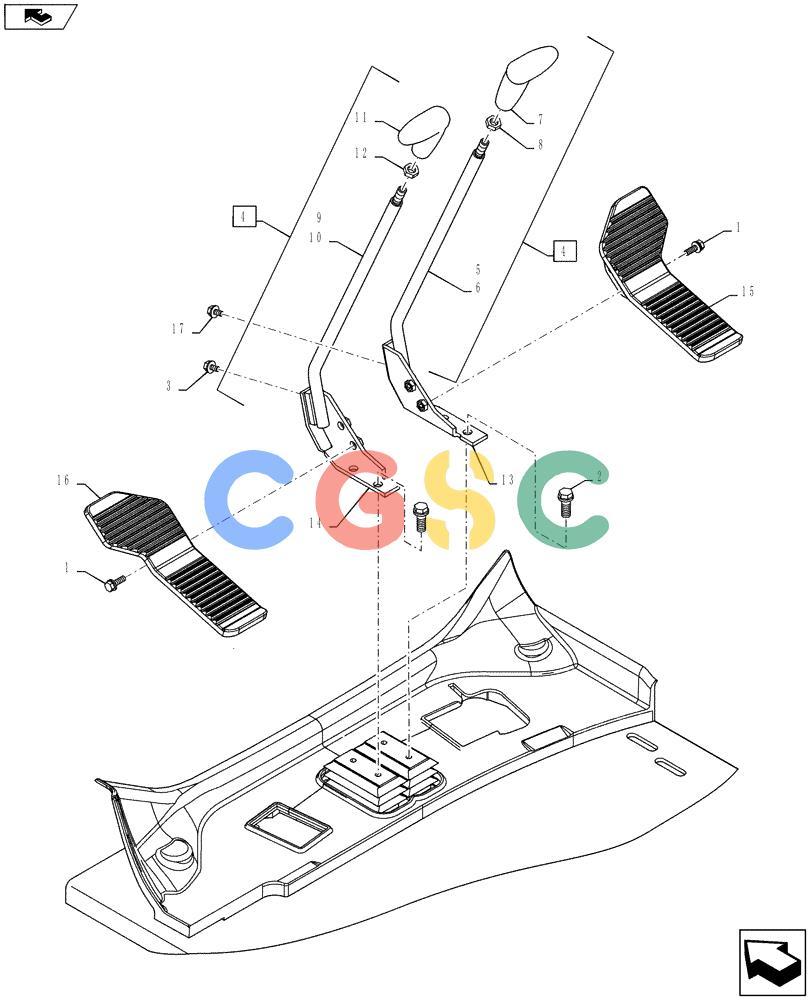

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZM22C08025 | [2] | BOLT | KOBSems |
| 2. | ZM73C10025 | [4] | BOLT,M10x25mm - Course Thread | KOBSems |
| 3. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBSems |
| 4. | YN50M00015F1 | [1] | LEVER | KOBAssy, Propel; Inc 5-8 or 9-12 |
| 5. | YN50M01051F1 | [1] | LEVER | KOB |
| 6. | YN50M01053P1 | [1] | LEVER | KOB |
| 7. | YN03M01040P1 | [1] | GRIP | KOB |
| 8. | 2420Z1232 | [1] | NUT | KOB |
| 9. | YN50M01052F1 | [1] | LEVER | KOB |
| 10. | YN50M01053P1 | [1] | LEVER | KOB |
| 11. | YN03M01040P1 | [1] | GRIP | KOB |
| 12. | 2420Z1232 | [1] | NUT | KOB |
| 13. | YN50M01056P1 | [1] | SUPPORT | KOB |
| 14. | YN50M01057P1 | [1] | SUPPORT | KOB |
| 15. | YN55M01010P1 | [1] | PEDAL | SM |
| 16. | YN55M01011P1 | [1] | PEDAL | SM |
| 17. | ZM73C08016 | [2] | BOLT,M8x16mm - Course Thread | KOBSems |
