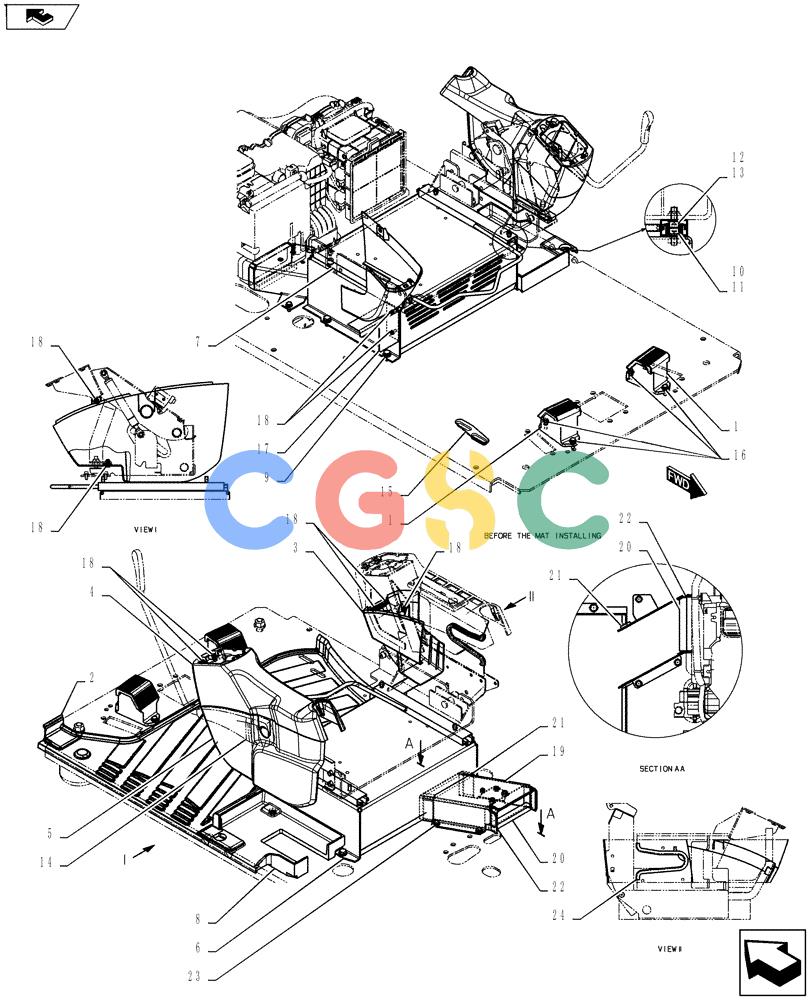

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.160.AF[01]) - CONTROL, OPERATOR Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
854 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87521852 | [2] | SUPPORT | SM(YN03M01859P2) Superseded by part number: YN03M01859P2 |
| 2. | YN26M00072P1 | [1] | CARPET | SMFloor |
| 3. | YN03M02109F1 | [1] | COVER | SMAssy |
| 4. | YN03M02110F3 | [1] | COVER ASSY | KOBAssy |
| 5. | YN03M02111F3 | [1] | COVER | SMAssy |
| 6. | YN25M01240P1 | [1] | SUPPORT | SMSeat |
| 7. | YN25M01238F1 | [1] | CROSSRAIL | SM |
| 8. | YN26M00077P1 | [1] | CARPET | SMFloor |
| 9. | 11106034 | [4] | BOLT,Hex, M10 x 20, 10.9, Full Thd | BURSems, (ZM73C10020) Superseded by part number: 11106031 |
| 10. | 14306234 | [4] | HEX SOC SCREW,M8 x 1.25 x 16mm, Cl 10.9, Full Thd | LECHEX SOC M8X16 FULL 10.9 DAC Superseded by part number: 14306230 |
| 11. | 10516674 | [4] | LOCK WASHER,M8 | TTFHELICAL SPR 8 HVY C72 DAC Superseded by part number: 83990583 |
| 12. | 14496531 | [4] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC(ZW16P08000) Superseded by part number: 86624184 |
| 13. | 14306334 | [4] | SCREW,M8 x 20mm, Cl 10.9 | HITCap Superseded by part number: 14306337 |
| 14. | YN03M02163P1 | [1] | COVER ASSY | KOB |
| 15. | YN03M02085P2 | [1] | GROMMET | KOB |
| 16. | 10902634 | [4] | SCREW,Hex, 6mm OD x 25mm L | LEC Superseded by part number: 10902631 |
| 17. | YN25M01239P1 | [1] | PLATE | SM |
| 18. | 16043834 | [10] | BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd | LECM8X30 FULL 10.9 DAC Superseded by part number: 16605734 |
| 19. | YN20M01797P1 | [1] | DUCT | SM |
| 20. | YN20M01847P1 | [1] | INSULATOR | SMInsulator |
| 21. | YN20M01835P1 | [1] | INSULATOR | SM |
| 22. | YN20M01848P1 | [1] | INSULATOR | SMInsulator |
| 23. | 16043434 | [3] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | LECM8X20 FULL 10.9 DAC, (ZM73C08020) Superseded by part number: 16043431 |
| 24. | YT02C01515D7 | [1] | GASKET | SMTrim |
