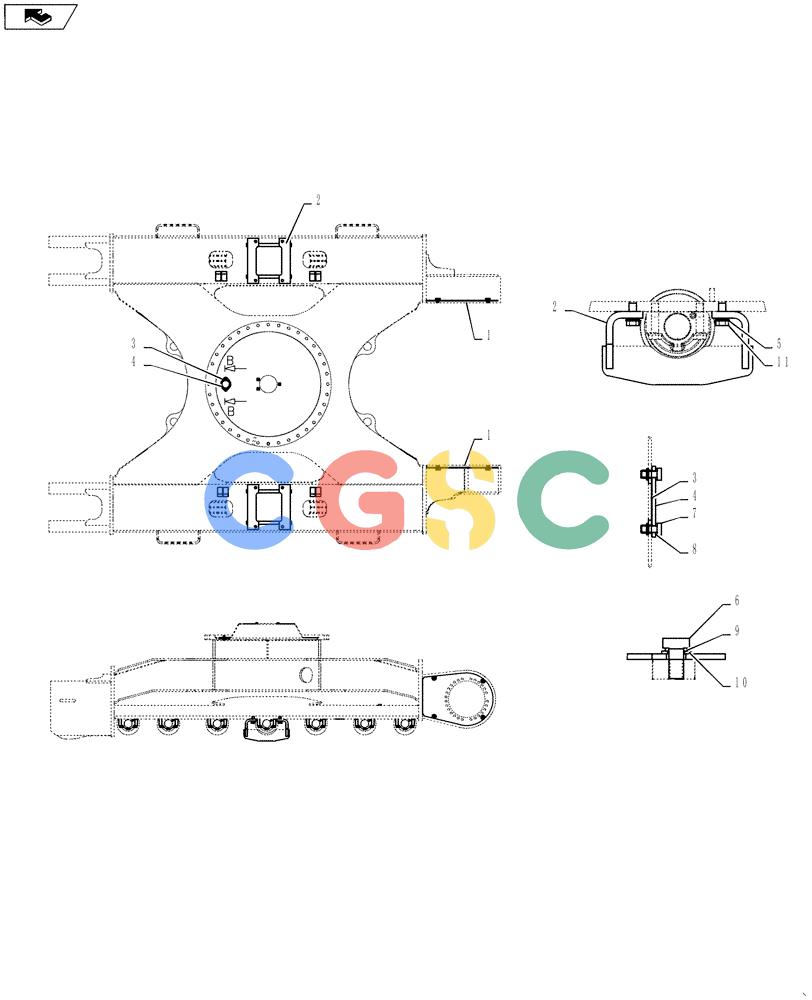

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (39.100.AB[01]) - FRAME, GROUP, LOWER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
937 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN01F01090P1 | [2] | COVER | SM |
| 2. | YN63D00003P2 | [2] | GUIDE | KOB(Used with Roller p/n LQ64D00054F1) |
| 3. | YM01F01003P1 | [1] | FLANGE | KOB(71442021) |
| 4. | YM01F01004P1 | [1] | SEAL,1mm Thk | KOB(71442022) |
| 5. | 15984134 | [8] | BOLT,Hex, M18 x 1.5 x 45mm, Cl 10.9, Full Thd | LEC(2420P1580D1) |
| 6. | ZS18C12025 | [8] | SCREW,Hex, M12 x 25mm | KOB(11112334) |
| 7. | ZS18C10025 | [2] | SCREW,Hex, M10 x 25mm | KOB(11106234) |
| 8. | ZW26X10000 | [2] | LOCK WASHER | KOB(10516874) |
| 9. | ZW16X12000 | [8] | WASHER | KOB(14496731) |
| 10. | ZW26X12000 | [8] | LOCK WASHER | KOB(10516874) ID 12 x OD 21 x Th 3.0mm |
| 11. | 10517374 | [8] | LOCK WASHER,18.2mm ID x 30.6mm OD x 4mm Thk | TTF(ZW26K18000) |
