神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (39.100.AB[02]) - STEP, UNDERCARRIAGE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
958 次

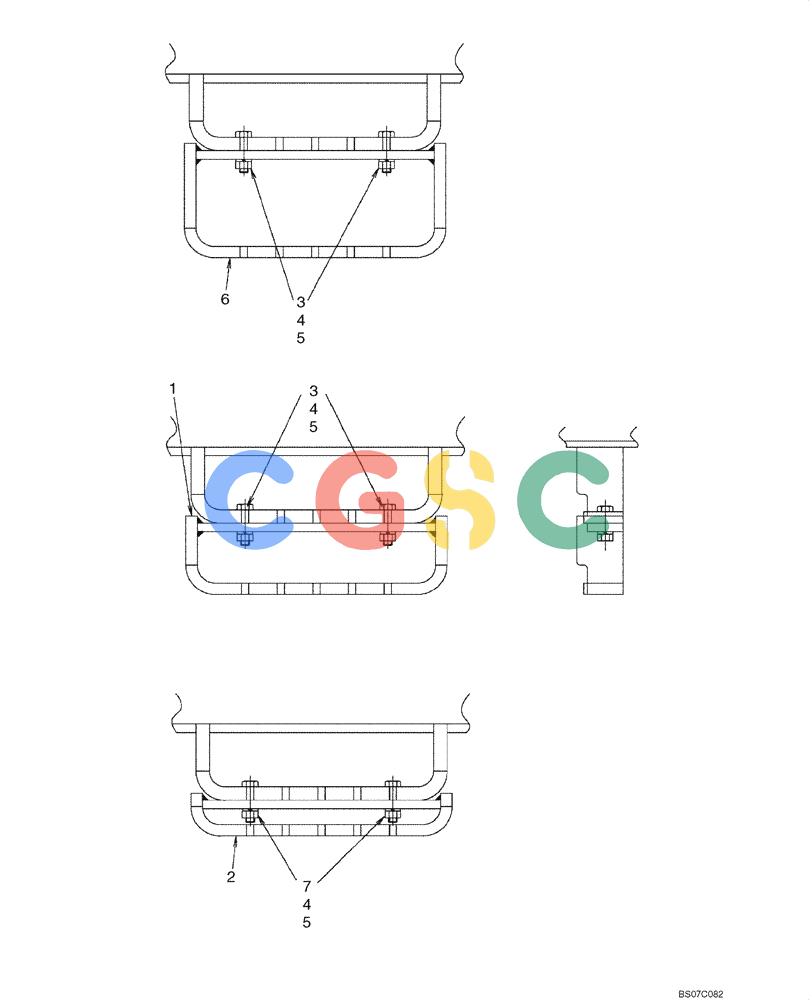

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN41CU0002F1 | [1] | STEP | KOBInstallation, 100mm Long (4in) -- Inc. 1, 3, 4, 5 Superseded by part number: ZN18C12010, ZS18C12050, YN41CU0003P1, ZW26X12000 |
| . . | YN41CU0002F3 | [1] | STEP | KOBInstallation, 150mm Long (6in) -- Inc. 3, 4, 5, 6 Superseded by part number: ZS18C12050, YN41CU0005P1, ZW26X12000, ZN18C12010 |
| 1. | YN41CU0003P1 | [4] | STEP | KOB100mm Long (4in) |
| 2. | YN41CU0004P1 | [4] | STEP | KOB50mm Long (2in) |
| 3. | ZS18C12050 | [8] | SCREW,Hex, M12 x 50mm | KOBM12x1.75x50mm |
| 4. | ZW26X12000 | [8] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| 5. | ZN18C12010 | [8] | NUT | KOBM12x1.75mm |
| 6. | YN41CU0005P1 | [4] | STEP | KOB150mm Long (6in) |
| 7. | ZS18C12040 | [8] | SCREW,Hex, M12 x 40mm | KOBM12x1.75x40mm |
