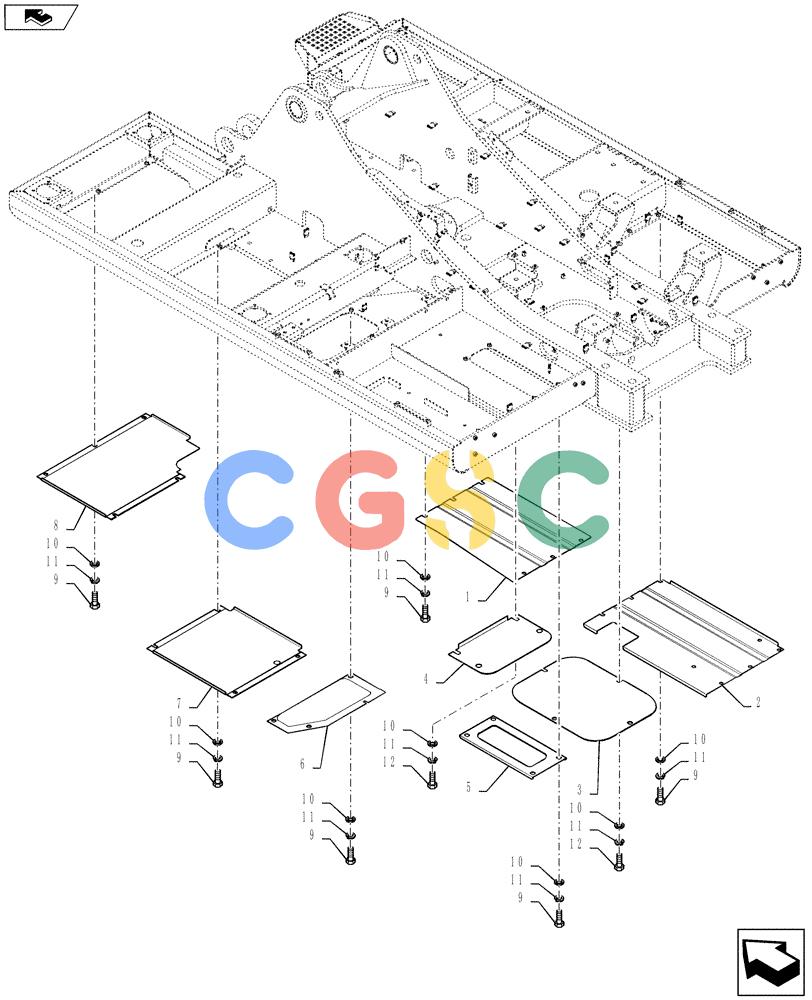

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (39.100.AH) - COVER ASSY, UNDERCARRIAGE Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
396 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB24C01025P1 | [1] | COVER | SM |
| 2. | YB24C01024P1 | [1] | COVER | SM |
| 3. | 87579596 | [1] | GUARD | SM Superseded by part number: YM24C01040P1 |
| 4. | 87616246 | [1] | GUARD | SM |
| 5. | 87357710 | [1] | GUARD | SM |
| 6. | LQ24C01213P1 | [1] | GUARD | SM |
| 7. | YM24C01044P1 | [1] | GUARD | SM |
| 8. | YM24C01043P1 | [1] | GUARD | SM |
| 9. | 11112434 | [29] | BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11112431 |
| 10. | 72201225 | [37] | WASHER,13mm ID x 30mm OD x 3.2mm Thk | IMO Superseded by part number: 4952483 |
| 11. | 10517074 | [37] | LOCK WASHER,12.2mm ID x 21.1mm OD x 3.1mm Thk | TTF Superseded by part number: 412123 |
| 12. | 11112834 | [8] | BOLT,Hex, M12 x 40mm, Cl 10.9, Full Thd | LEC Superseded by part number: 11112831 |
