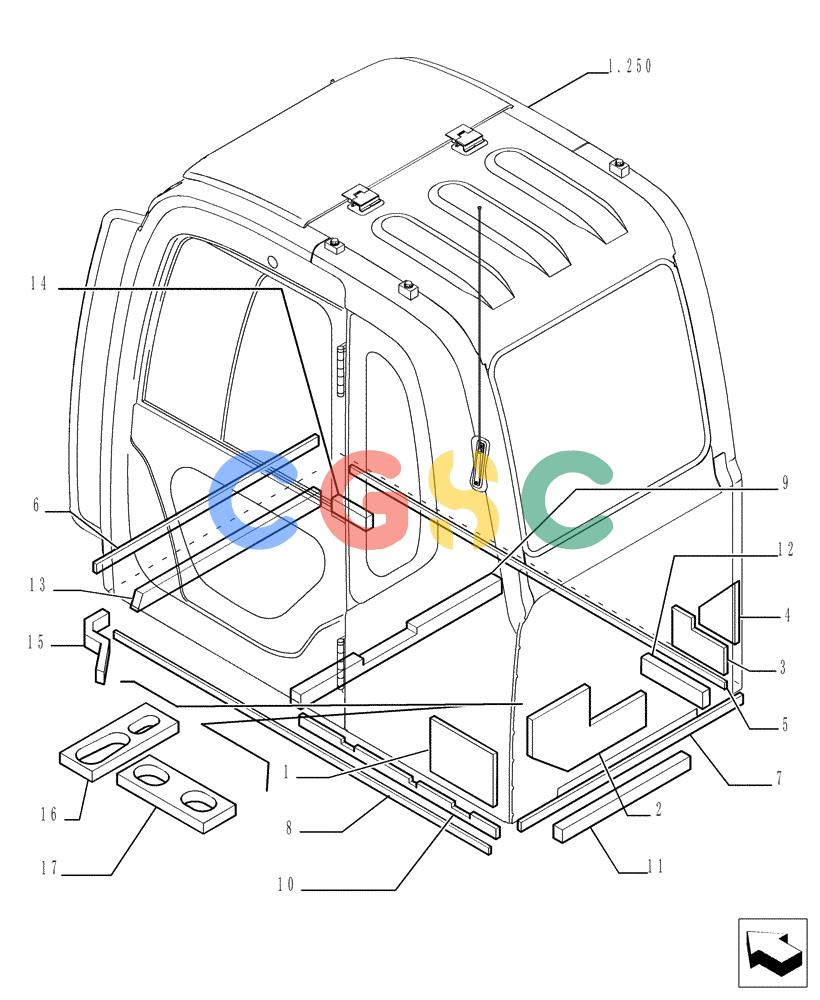

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (39.101.AC[03]) - FRAME, ASSY, UPPER, INSULATION Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
347 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN26C01003P1 | [1] | INSULATOR | SM |
| 2. | YN26C01023P1 | [1] | INSULATOR | SM |
| 3. | YN26C01004P1 | [1] | INSULATOR | SM |
| 4. | YN26C01005P1 | [1] | INSULATOR | SM |
| 5. | YN26C01006P1 | [1] | INSULATOR | SM |
| 6. | YN26C01007P1 | [1] | INSULATOR | SM |
| 7. | YN26C01008P1 | [1] | INSULATOR | SM |
| 8. | YN26C01009P1 | [1] | INSULATOR | SM |
| 9. | YN26C01010P1 | [1] | INSULATOR | SM |
| 10. | YN26C01011P1 | [1] | INSULATOR | SM |
| 11. | YN26C01012P1 | [1] | INSULATOR | SM |
| 12. | YN26C01013P1 | [1] | INSULATOR | SM |
| 13. | YN26C01014P1 | [1] | INSULATOR | SM |
| 14. | YN26C01015P1 | [1] | INSULATOR | SM |
| 15. | YN26C01016P1 | [1] | INSULATOR | SM |
| 16. | YN26C01024P1 | [1] | INSULATOR | SM |
| 17. | YN26C01018P1 | [1] | INSULATOR | SM |
