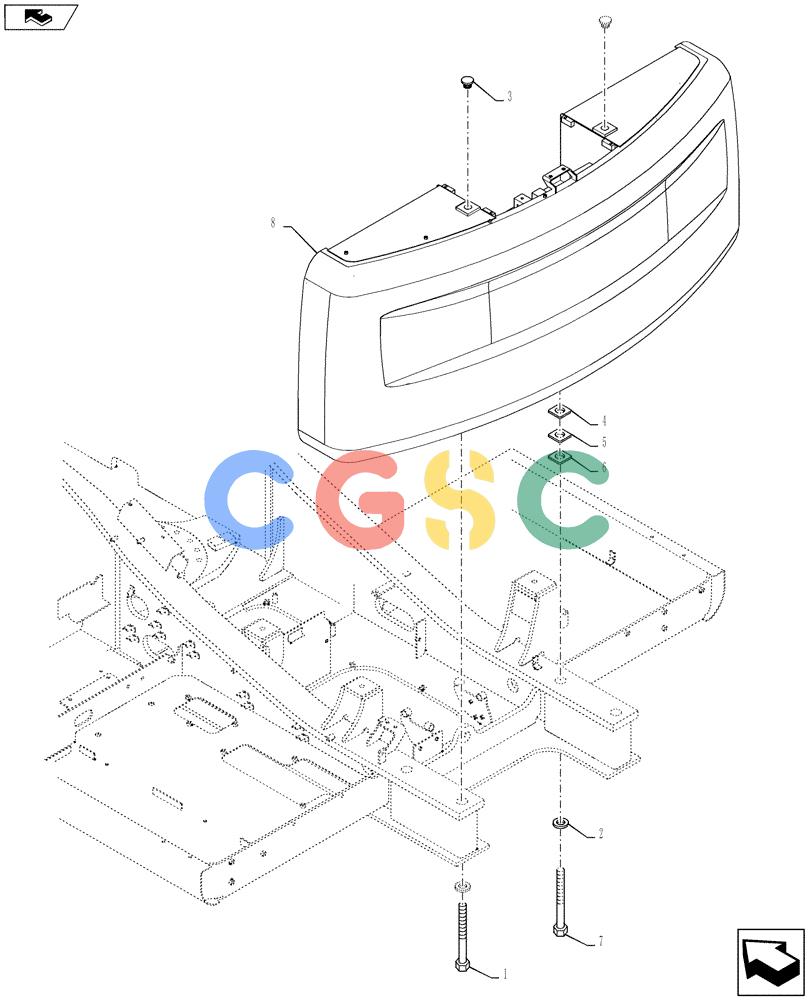

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (39.140.AM[01]) - COUNTERWEIGHT INSTALL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
767 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB60C01043P1 | [2] | BOLT,Hex, M27 x 3 x 345mm, Cl 10.9 | SM |
| 2. | 72210522 | [4] | WASHER | SM(YB60C01014P1) |
| 3. | 71415426 | [2] | PLUG | TOR |
| 4. | 72202944 | [3] | SHIM,2.5mm Thk | SM(YR60C01028D5) |
| 5. | 72202945 | [3] | SHIM,1.5mm Thk | SM(YR60C01028D6) Superseded by part number: YR60C01028D6 |
| 6. | 72202946 | [3] | SHIM,3mm Thk | SM(YR60C01028D7) |
| 7. | YB60C01044P1 | [2] | BOLT,Hex, M27 x 3 x 280mm, Cl 10.9 | SMM27 x 280 x 10.9 |
| 8. | YM60C00035P1 | [1] | COUNTERWEIGHT | KOB |
