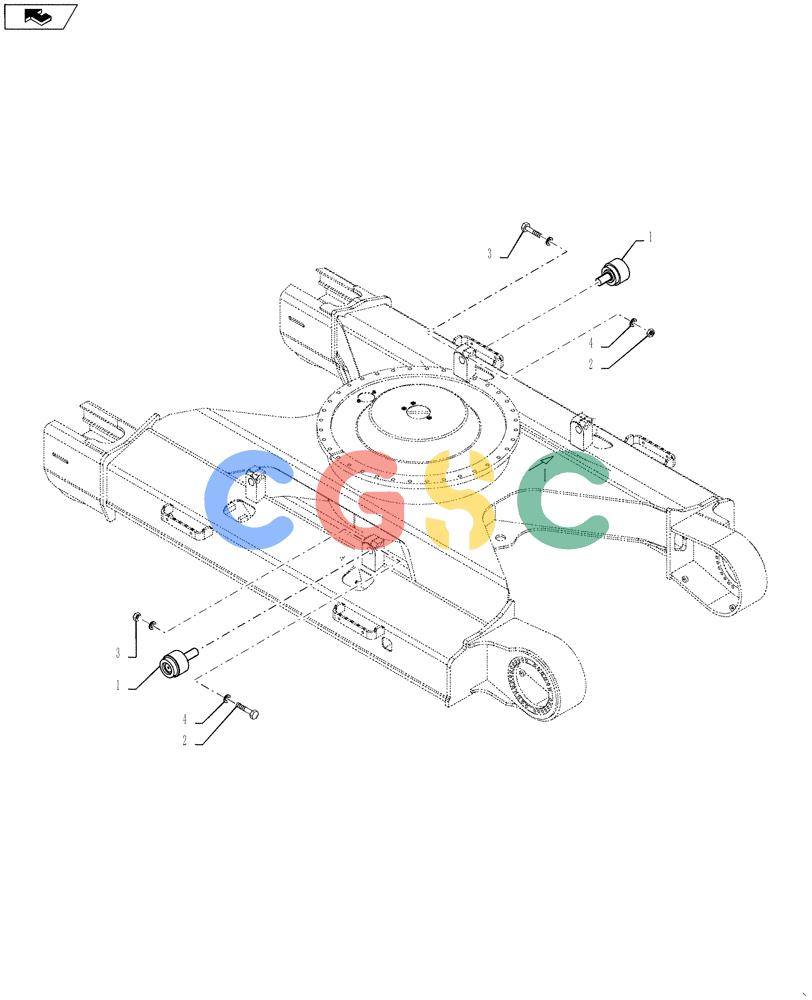

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (48.138.AB[02]) - UPPER ROLLER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
558 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN64D01068F1 | [4] | ROLLER | KOB, Years: -27-MAR-14 Superseded by part number: YN64D01144F1 |
| 1. | 47640366 | [4] | ROLLER | SM, Start Year: 27-MAR-14 |
| 2. | 11120334 | [8] | SCREW | IMO(ZS13C16120) |
| 3. | 12163321 | [8] | NUT,M16, Cl 10 | IMO(ZN13C16013) Superseded by part number: |
| 4. | 71405003 | [16] | WASHER | TOR(ZW13H16000) Superseded by part number: 98416514 |
