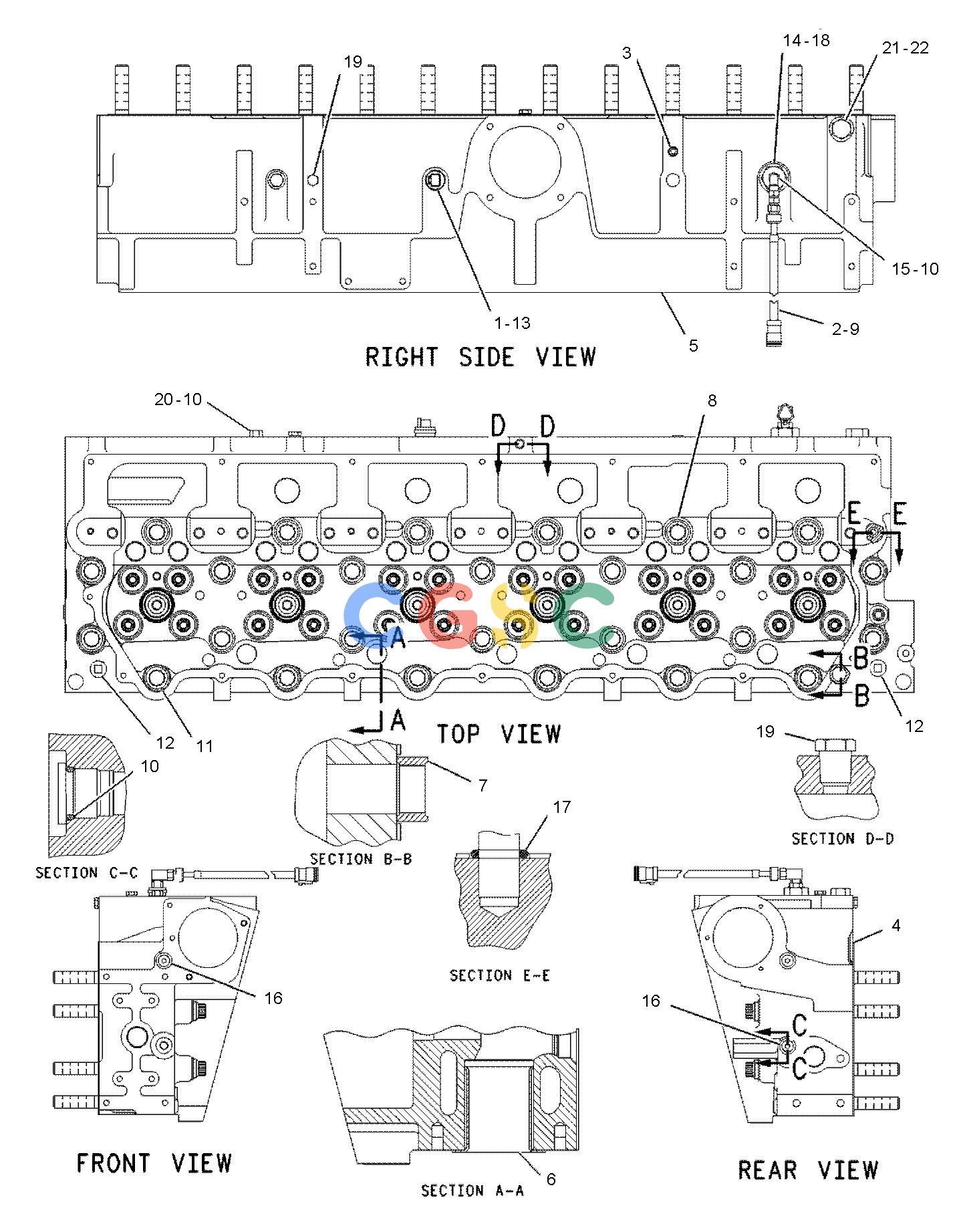

卡特零件查询（735） 173-8807: CYLINDER HEAD GP
广数供应链运营团队, 15 02月, 2025，浏览：
724 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 130-9811 | [1] | SENSOR GP-TEMPERATURE(INLET AIR) | |
| 2. | 194-6724Y | [1] | SENSOR GP-PRESSURE(TURBO OUTLET) | |
| 3. | 8T-6763 | [1] | PLUG-PIPE(1/4-18-THD) | |
| 4. | 224-5122 | [1] | GASKET(CYLINDER HEAD) | |
| 5. | 183-5296Y | [1] | CYLINDER HEAD GP | |
| 6. | 194-8124 | [6] | SLEEVE AS(EXHAUST PORT) | |
| 7. | 3E-6772 | [24] | SEAL(WATER) | |
| 8. | 6I-4025 | [16] | FASTENER GP-CYLINDER HEAD | |
| | | | (EACH INCLUDES) |
| | 5H-1504 | [1] | WASHER-HARD(20X33.5X5-MM THK) | |
| | 124-1855 | [1] | BOLT-12 POINT HEAD(3/4-16X7.638-IN) | |
| 9. | 6V-5048 | [1] | SEAL-O-RING | |
| 10. | 6V-5049 | [5] | SEAL-O-RING | |
| 11. | 106-5673 | [10] | FASTENER GP-CYLINDER HEAD | |
| | | | (EACH INCLUDES) |
| | 5H-1504 | [1] | WASHER-HARD(20X33.5X5-MM THK) | |
| | 124-1854 | [1] | BOLT-12 POINT HEAD(3/4-16X8.5-IN) | |
| 12. | 2B-0858 | [2] | PLUG-PIPE | |
| 13. | 8L-2786 | [1] | SEAL-O-RING | |
| 14. | 2P-8421 | [1] | ADAPTER-O-RING | |
| 15. | 3E-2332 | [1] | ELBOW | |
| 16. | 9S-8004 | [3] | PLUG(9/16-18-THD) | |
| 17. | 5P-0840 | [1] | SEAL-O-RING | |
| 18. | 3D-2824 | [1] | SEAL-O-RING | |
| 19. | 8T-6765 | [2] | PLUG-PIPE(1/4-18-THD) | |
| 20. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 21. | 9S-4190 | [1] | PLUG-O-RING(7/8-14-THD) | |
| 22. | 2M-9780 | [1] | SEAL-O-RING | |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
