卡特零件查询（735） 183-5296: CYLINDER HEAD GP
广数供应链运营团队, 15 02月, 2025，浏览：
593 次

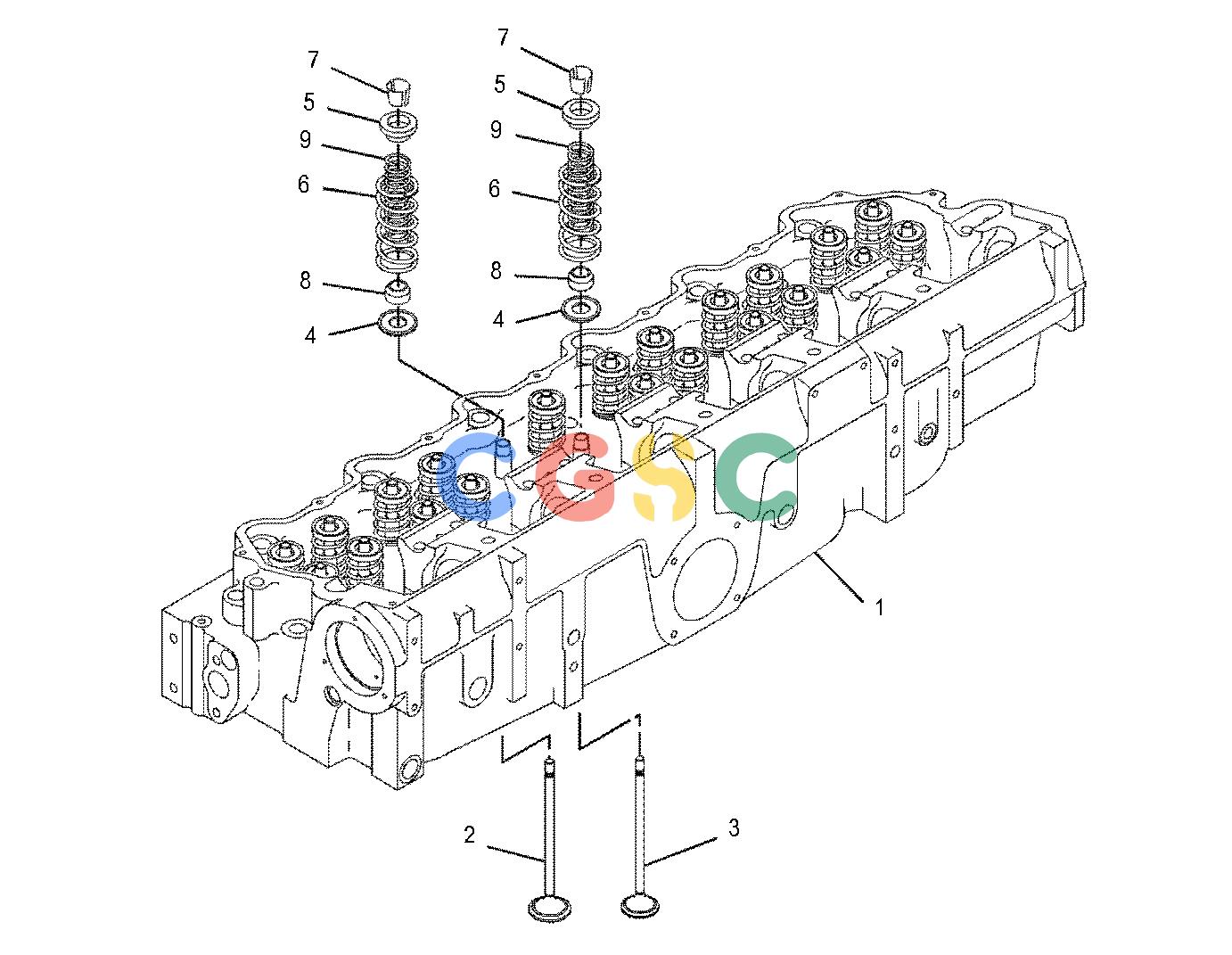

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 245-4324Y | [1] | CYLINDER HEAD AS | |
| 2. | 490-7198 | [12] | VALVE-INLET | |
| 3. | 490-7200 | [12] | VALVE-EXHAUST | |
| 4. | 6I-0928 | [24] | WASHER-SPECIAL | |
| 5. | 186-2001 | [24] | ROTOCOIL AS | |
| 6. | 247-9908 | [24] | SPRING-VALVE(OUTER) | |
| 7. | 2A-4429 | [48] | LOCK-RETAINER | |
| 8. | 163-2478 | [24] | SEAL-VALVE STEM | |
| 9. | 211-3122 | [24] | SPRING-VALVE(INNER) | |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 299-8342 | [1] | KIT-CYLINDER HEAD | |
| | | | (INCLUDES BRIDGE-VALVE & CYLINDER HEAD) |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
