神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (50.200.AB[04]) - AIR CONDITIONER Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
745 次

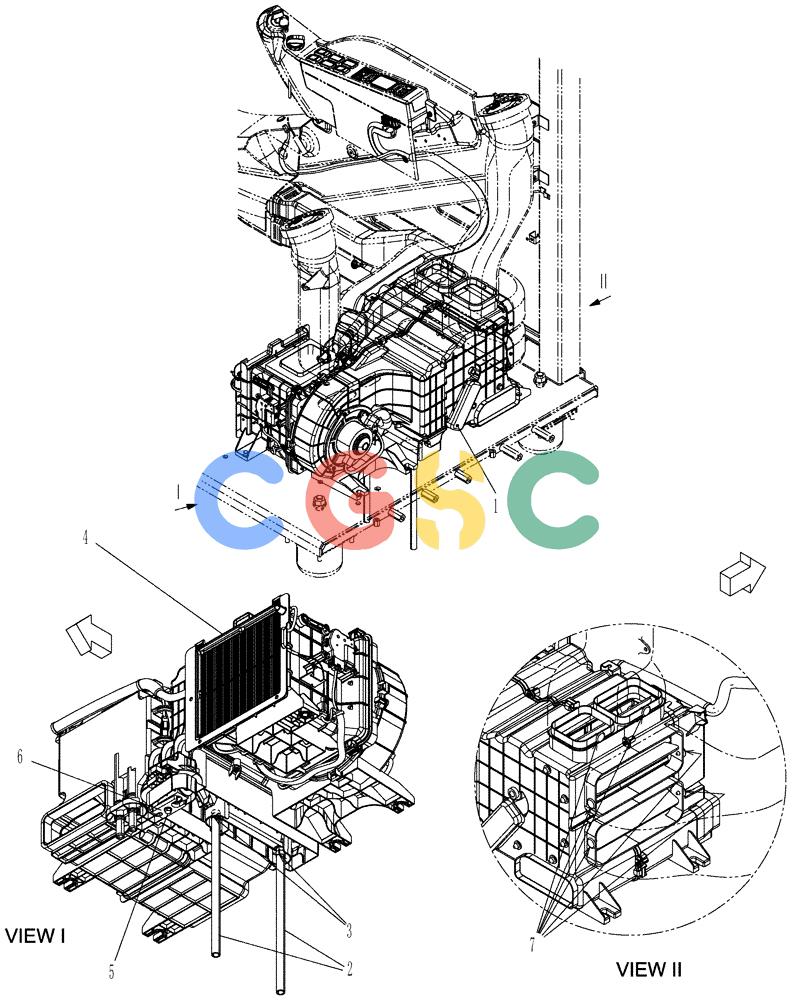

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | LQ20M00059F1 | [1] | AIR CONDITIONER | SMAIR CONDITIONING ASSY, See Fig. 01-088[05] |
| 2. | 87529476 | [2] | HOSE | SM(LC20M01014D2) ID 11 x OD 15 x 360mm Superseded by part number: LC20M01014D2 |
| 3. | 24100U1176S5 | [2] | CLAMP | KOB |
| 4. | LQ50V01007P1 | [1] | FILTER | SM Superseded by part number: 47814788 |
| 5. | YT20M00009S005 | [1] | BOLT | KOBCAP |
| 6. | LQ20M01169P1 | [1] | PLATE | SM |
| 7. | YN20M00016S078 | [5] | CLIP | KOB |
