神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (55.100.DO[02]) - RELAY, BOX, ASSY Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
432 次

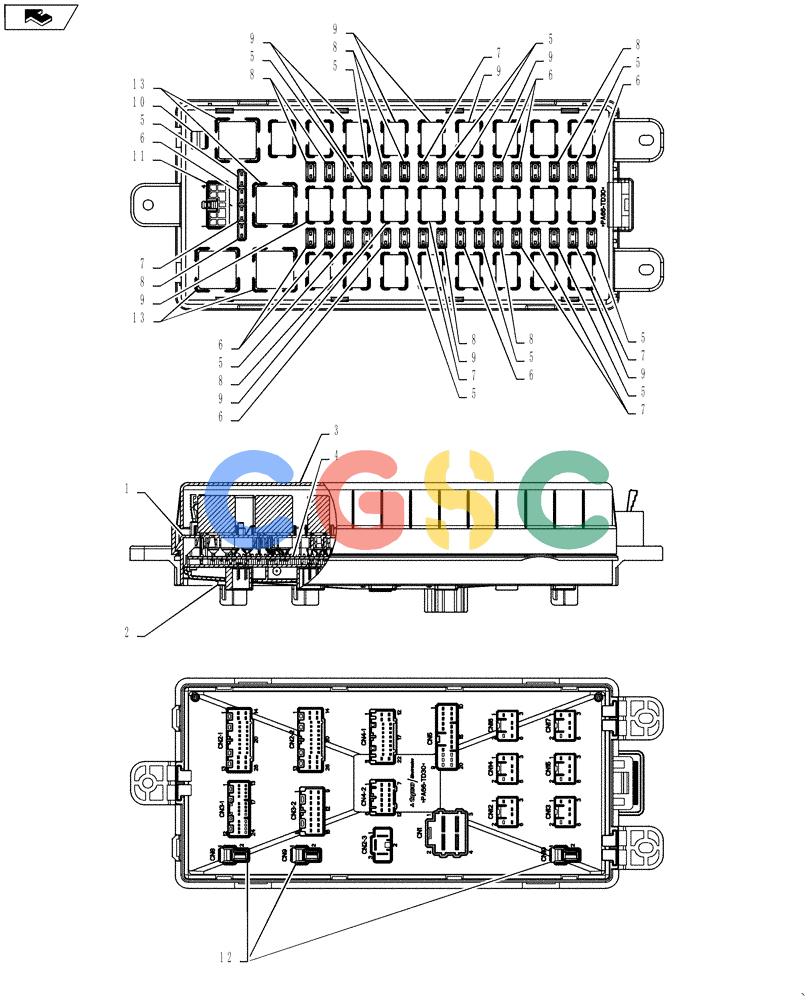

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN24E00016S001 | [1] | BOX | SMHousing |
| 2. | YN24E00016S002 | [1] | BOX | SMHousing |
| 3. | YN24E00016S003 | [1] | FUSE BOX | SM |
| 4. | YN24E00016S004 | [1] | PRINTED CIRCUIT BOAR | SM Superseded by part number: YN24E00016F3 |
| 5. | YN24E00016S005 | [11] | FUSE,5amp | SM5 Amp |
| 6. | YN24E00016S006 | [9] | FUSE,10amp | SM10 Amp |
| 7. | YN24E00016S007 | [6] | FUSE,15amp | SM15 Amp |
| 8. | YN24E00016S008 | [10] | FUSE,20amp | SM20 Amp |
| 9. | YN24S00010P1 | [9] | RELAY | KOB(87559156)(Used for Safety, Horn, Working Light, Travel Alarm, Cab Working Light, Auto Idle Stop, Eng Emerg Stop, Lever Lock, Alternator, Boom Light, Washer Motor, Wiper Motor) |
| 9. | 87559156 | [9] | RELAY | SM(YN24S00010P1) Superseded by part number: YN24S00010P1 |
| 10. | YN24E00016S011 | [1] | HANDLE | SM |
| 11. | YN24E00016S012 | [1] | WIRE CONNECTOR | SM |
| 12. | YN24E00016S013 | [3] | MULTIPOLE CONNECTOR | SM |
| 13. | YN24S00012P2 | [4] | RELAY,24V | SM |
