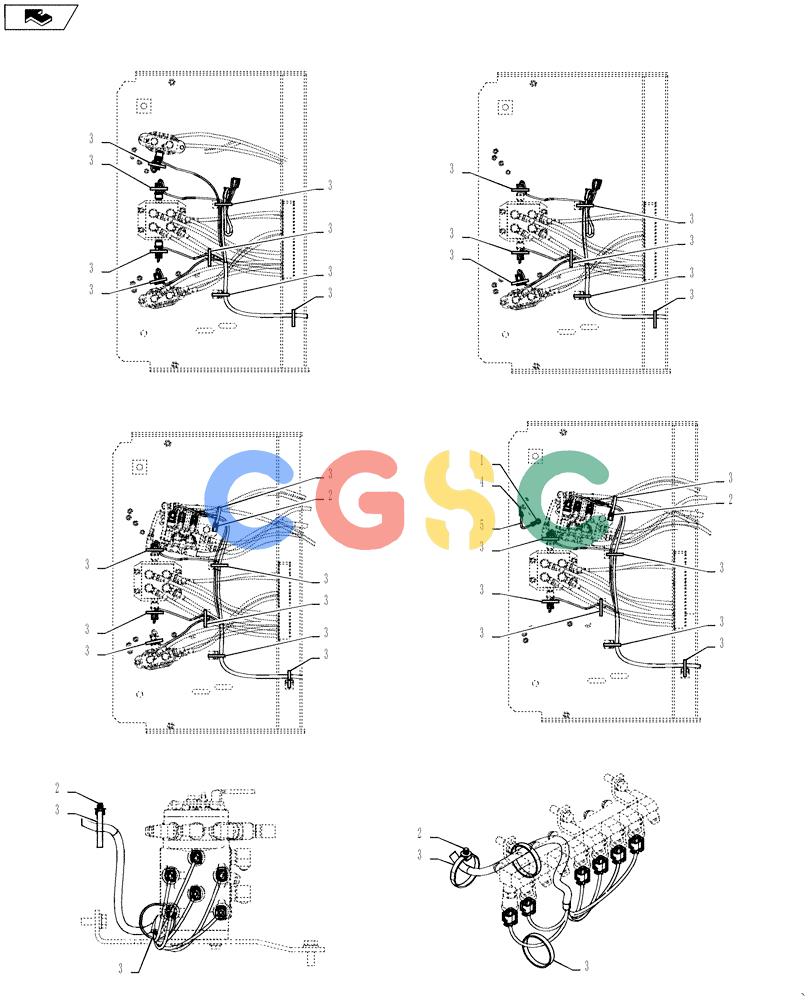

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (55.101.AC[05]) - HARNESS, ASSY, UPPER, CAB Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
605 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87564296 | [1] | ELECTRIC CABLE,400mm L | SM |
| 2. | 87526680 | [14] | RETAINER COLLAR | SM Superseded by part number: YN13E01375P1 |
| 3. | 72951499 | [45] | CLIP | IMO Superseded by part number: PY01P01043D8 |
| 4. | 10516674 | [1] | LOCK WASHER,M8 | TTF Superseded by part number: 83990583 |
| 5. | 16100821 | [1] | NUT,M8, Cl 10 | LEC Superseded by part number: 17037925 |
