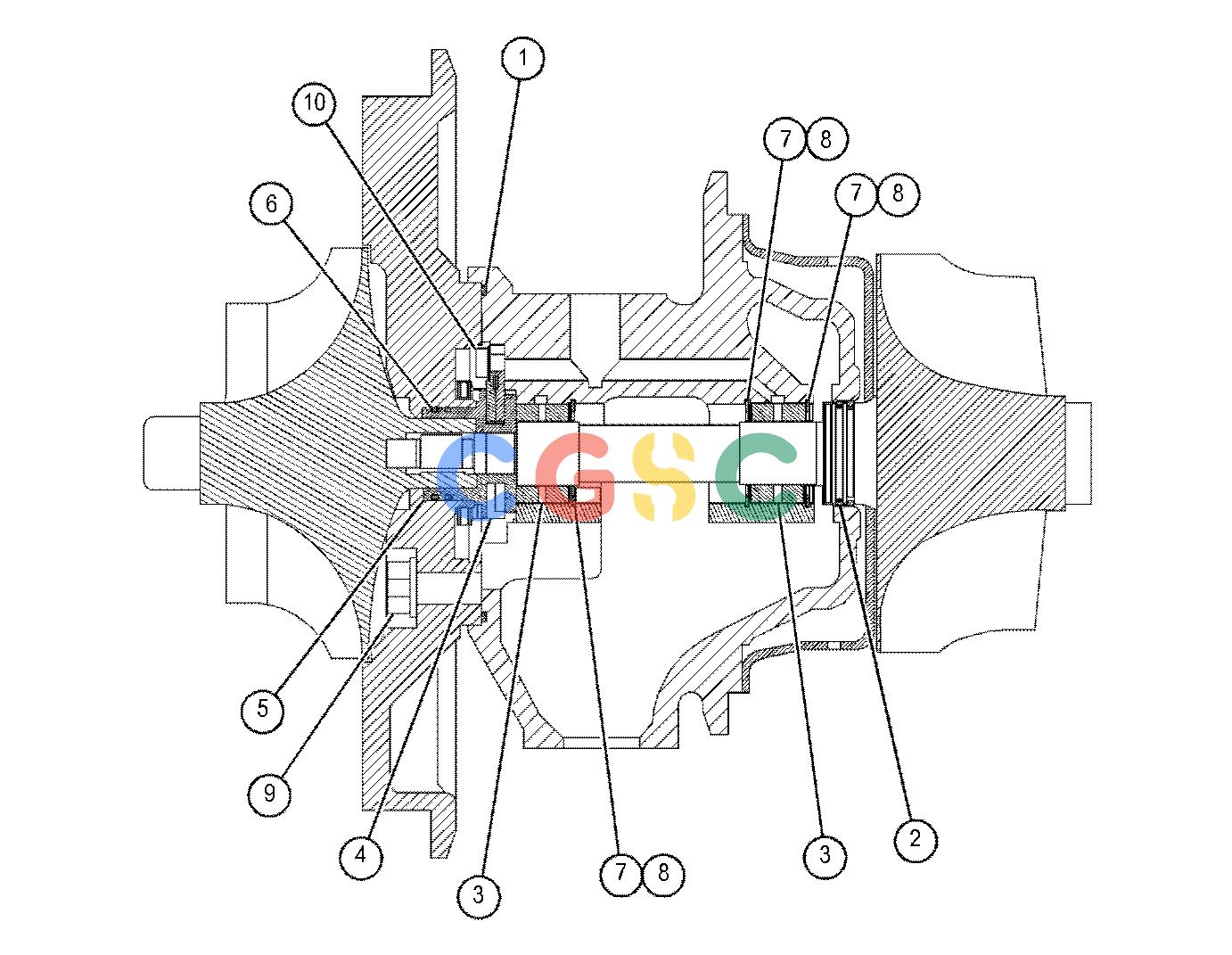

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 206-8868 | [1] | SEAL-RING | |
| 2. | 211-2264 | [1] | RING-PISTON | |
| 3. | 496-5224 | [2] | BEARING-JOURNAL(STANDARD) | |
| 4. | 211-2261 | [1] | BEARING-THRUST | |
| 5. | 211-2260 | [1] | COLLAR-THRUST | |
| 6. | 211-2259 | [2] | RING-PISTON | |
| 7. | 461-3792 | [3] | WASHER(WEAR) | |
| 8. | 461-3728 | [3] | RING-RETAINING | |
| 9. | 156-6964M | [4] | BOLT(M8X1.25X30-MM) | |
| 10. | 4P-3818M | [3] | BOLT(M4X0.7X10-MM) | |
| M | METRIC PART | |||
