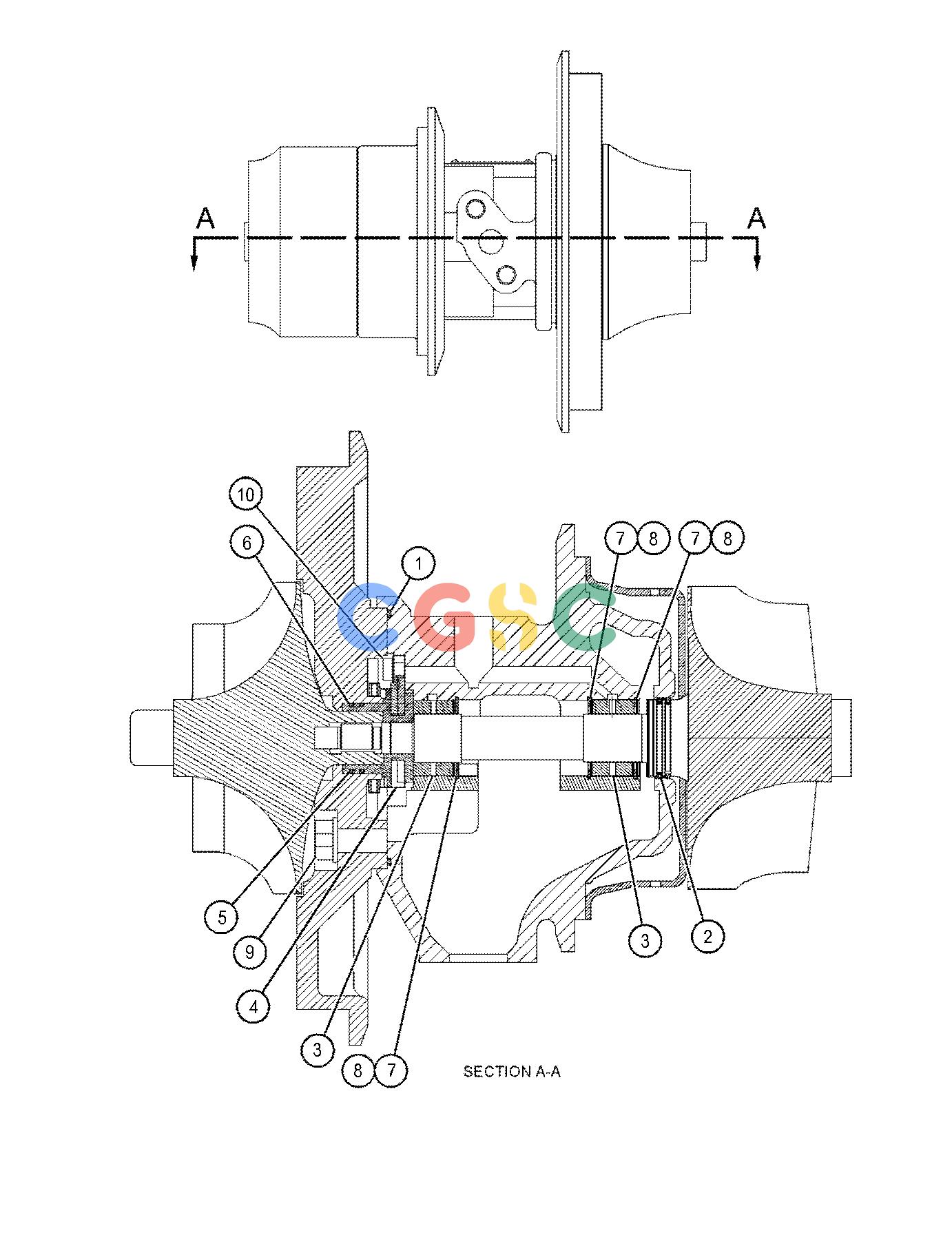

卡特零件查询（735） 207-8197: CARTRIDGE GP-TURBOCHARGER
广数供应链运营团队, 15 02月, 2025，浏览：
935 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 206-8868 | [1] | SEAL-RING | |
| 2. | 211-2264 | [1] | RING-PISTON | |
| 3. | 496-5224 | [2] | BEARING-JOURNAL(STANDARD) | |
| | 496-5225AB | | BEARING-JOURNAL(0.25-MM US) | |
| | 496-5226AB | | BEARING-JOURNAL(0.25-MM OS) | |
| | 496-5227AB | | BEARING-JOURNAL(0.25-MM OS, 0.25-MM US) | |
| | 496-5228AB | | BEARING-JOURNAL(0.51-MM OS) | |
| | 496-5229AB | | BEARING-JOURNAL(0.25-MM US, 0.51-MM OS) | |
| 4. | 211-2261 | [1] | BEARING-THRUST | |
| 5. | 211-2260 | [1] | COLLAR-THRUST | |
| 6. | 211-2259 | [2] | RING-PISTON | |
| 7. | 461-3792 | [3] | WASHER(WEAR) | |
| 8. | 461-3728 | [3] | RING-RETAINING | |
| 9. | 156-6964M | [4] | BOLT(M8X1.25X30-MM) | |
| 10. | 4P-3818M | [3] | BOLT(M4X0.7X10-MM) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
