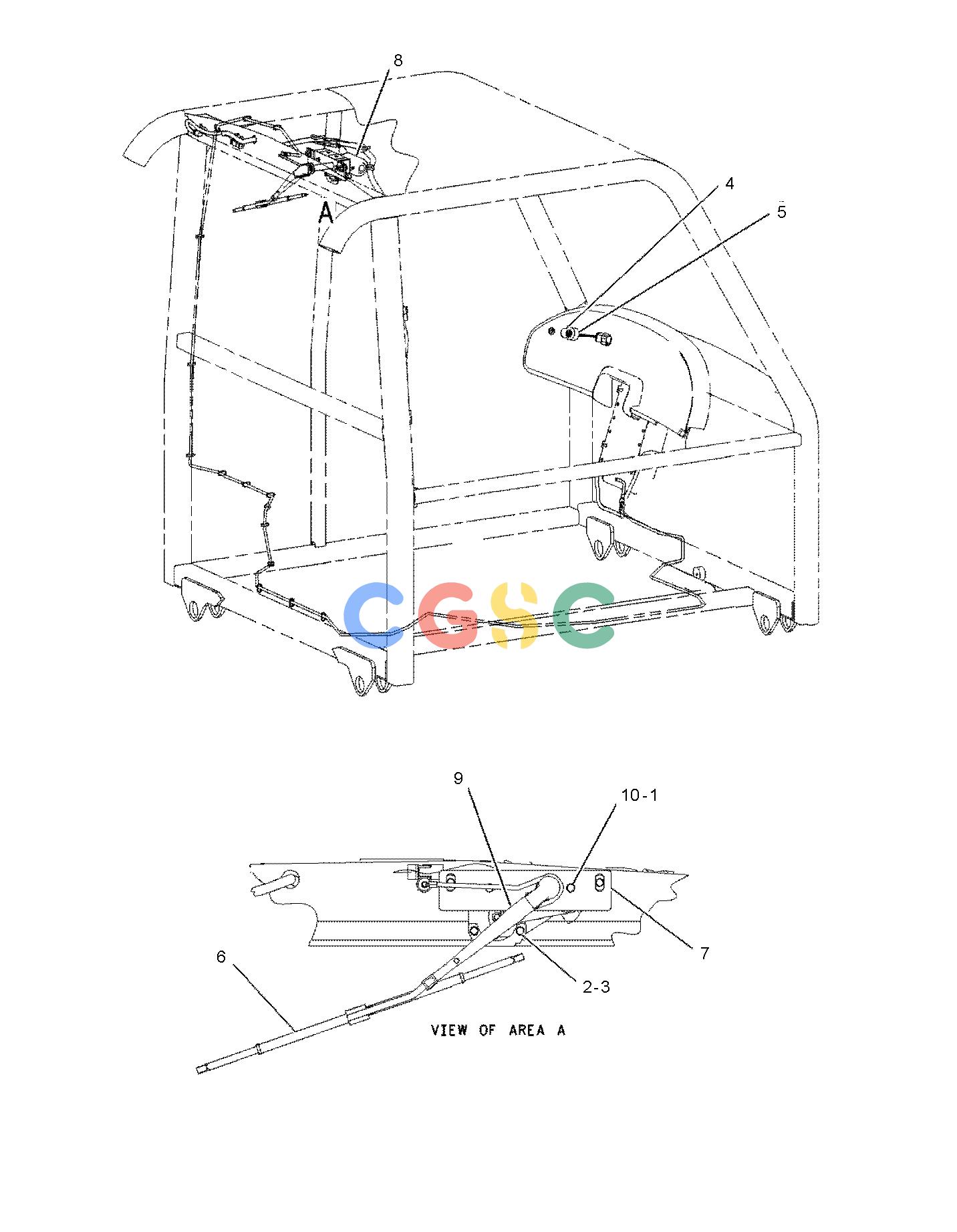

卡特零件查询（735） 149-0097: WIPER & WASHER GP-WINDOW
广数供应链运营团队, 15 02月, 2025，浏览：
205 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-8256 | [2] | WASHER(6.6X12X2-MM THK) | |
| 2. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 3. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 4. | 110-7885 | [1] | KNOB AS-WIPER SWITCH(WIPER, WASHER, REAR) | |
| | 014-0816 | [1] | SETSCREW(8-32X0.5-IN) | |
| 5. | 112-6174 | [1] | SWITCH GP-ROTARY(WIPER, WASHER)(REAR) | |
| | 2H-3920 | [1] | LOCKWASHER | |
| | 6V-8369 | [1] | NUT(7/16-28-THD) | |
| | 8T-8729 | [6] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | 8T-8737 | [2] | PLUG-SEAL | |
| | 102-8806 | [1] | KIT-RECEPTACLE(8-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| 6. | 130-7034 | [1] | BLADE AS-WIPER(500-MM)(REAR) | |
| 7. | 168-3392 | [1] | PLATE | |
| 8. | 168-8926Y | [1] | MOTOR GP-WINDOW WIPER(REAR) | |
| 9. | 168-8928 | [1] | ARM AS-WINDOW WIPER(REAR) | |
| 10. | 5C-9553M | [2] | BOLT(M6X1X16-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
