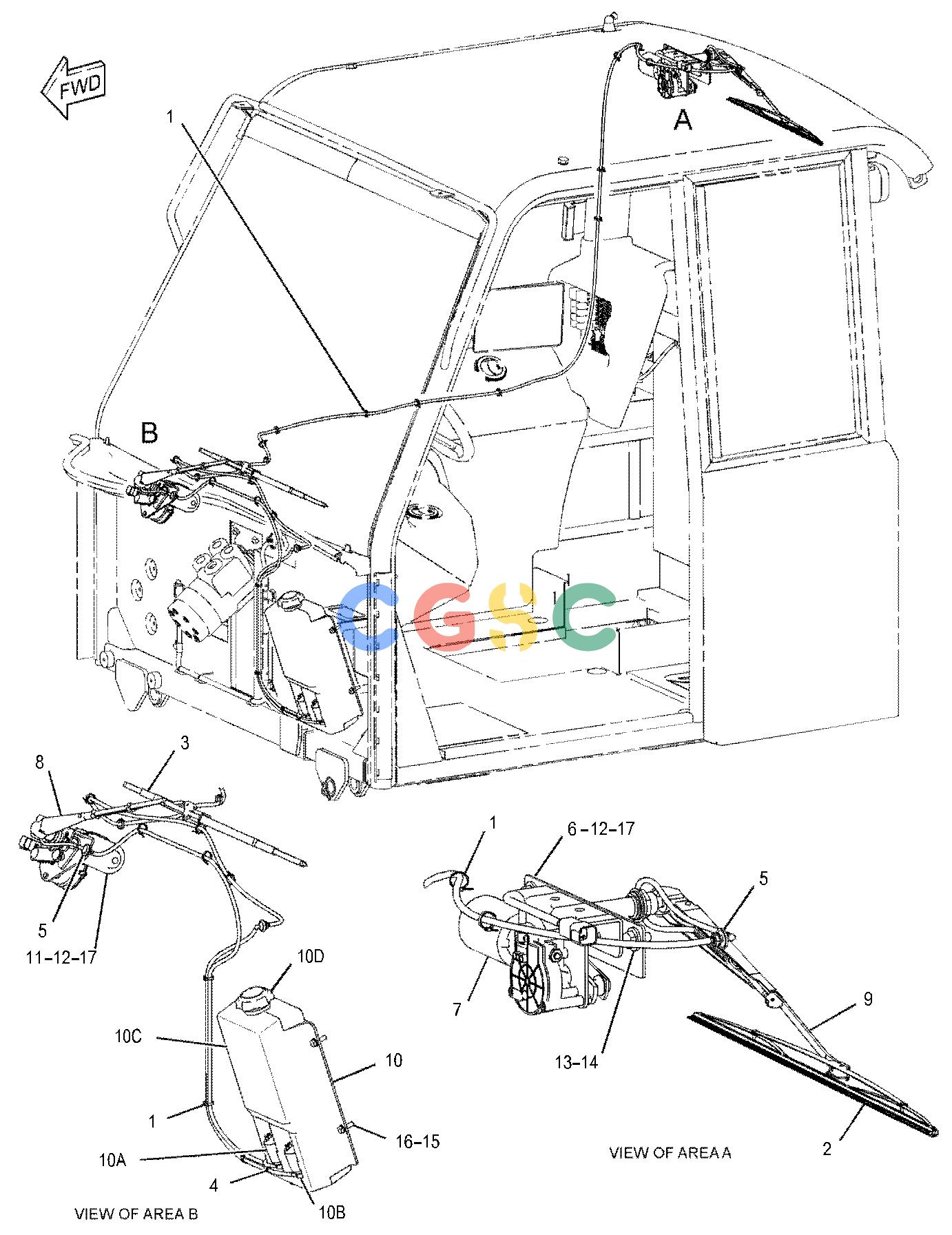

卡特零件查询（735） 237-7311: WIPER & WASHER GP-WINDOW
广数供应链运营团队, 15 02月, 2025，浏览：
220 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1S-9593 | [30] | STRAP-CABLE | |
| 2. | 130-7034 | [1] | BLADE AS-WIPER(500-MM)(REAR) | |
| 3. | 6V-7419 | [1] | BLADE AS-WIPER(700-MM)(FRONT) | |
| 4. | 204-2581 | [2] | VALVE AS-CHECK(WINDOW WASHER) | |
| 5. | 8T-5400 | [3] | CONNECTOR | |
| 6. | 168-3392 | [1] | PLATE | |
| 7. | 168-8926Y | [1] | MOTOR GP-WINDOW WIPER(REAR) | |
| 8. | 168-8927 | [1] | ARM AS-WINDOW WIPER(FRONT) | |
| 9. | 168-8928 | [1] | ARM AS-WINDOW WIPER(REAR) | |
| 10. | 235-2679 | [1] | TANK GP-WINDOW WASHER(SCREEN) | |
| 10A. | 7T-8891 | [2] | PUMP AS-WASHER(24-VOLT) | |
| 10B. | 147-3701 | [2] | GROMMET | |
| 10C. | 235-2680 | [1] | TANK | |
| 10D. | 235-2681 | [1] | CAP | |
| 11. | 147-7985Y | [1] | MOTOR GP-WINDOW WIPER(FRONT) | |
| 12. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 13. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4137M | [2] | BOLT(M10X1.5X20-MM) | |
| 15. | 8T-4224 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 16. | 8T-4908M | [4] | BOLT(M8X1.25X25-MM) | |
| 17. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| | | | |
| | 144-0195EF | | HOSE(850-CM) | |
| | E | | ORDER BY THE CENTIMETER |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
