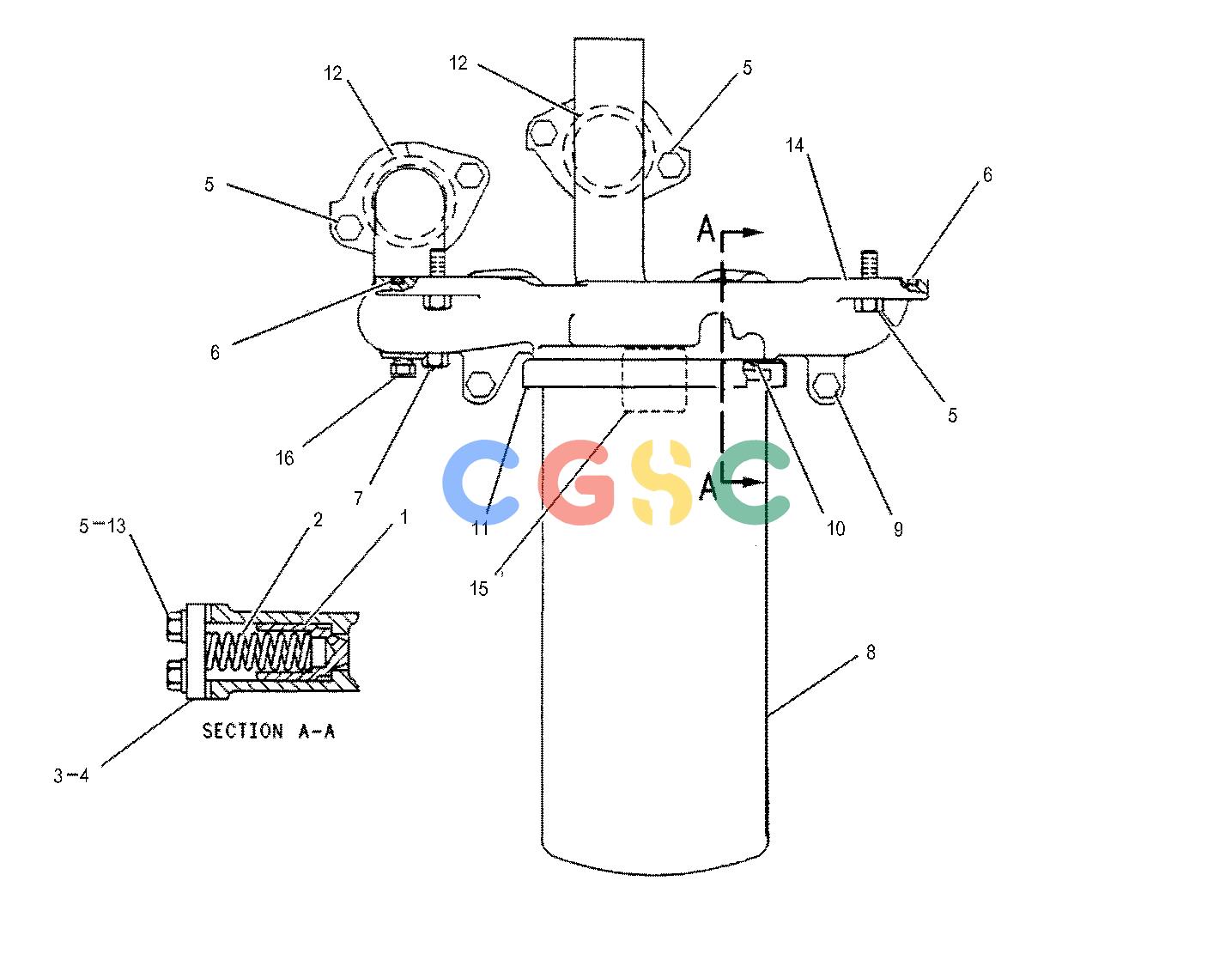

卡特零件查询（735） 119-7834: FILTER GP-ENGINE OIL
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1P-1367 | [2] | PLUNGER(RELIEF VALVE) | |
| 2. | 4N-8150 | [2] | SPRING | |
| 3. | 2P-3761 | [2] | COVER | |
| 4. | 2P-3760 | [2] | GASKET | |
| 5. | 0S-1594 | [11] | BOLT(3/8-16X1-IN) | |
| 6. | 3P-0650 | [2] | SEAL-O-RING | |
| 7. | 0L-2070 | [1] | BOLT(3/8-16X2.25-IN) | |
| 8. | 1R-1808 | [1] | FILTER-ENGINE OIL(ADVANCED EFFICIENCY) | |
| 9. | 0T-0065 | [2] | BOLT(3/8-16X3.5-IN) | |
| 10. | 4B-4161 | [4] | SCREW-DRIVE(NO 6X3/8-IN) | |
| 11. | 4N-6276 | [1] | SHIELD | |
| 12. | 8C-5230 | [2] | SEAL-O-RING | |
| 13. | 5M-2894 | [4] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 14. | 7N-3451 | [1] | BASE AS-OIL FILTER | |
| 15. | 2P-4304 | [1] | STUD-HOLLOW | |
| 16. | 5M-6213 | [2] | PLUG-PIPE(1/4-18-THD) | |
