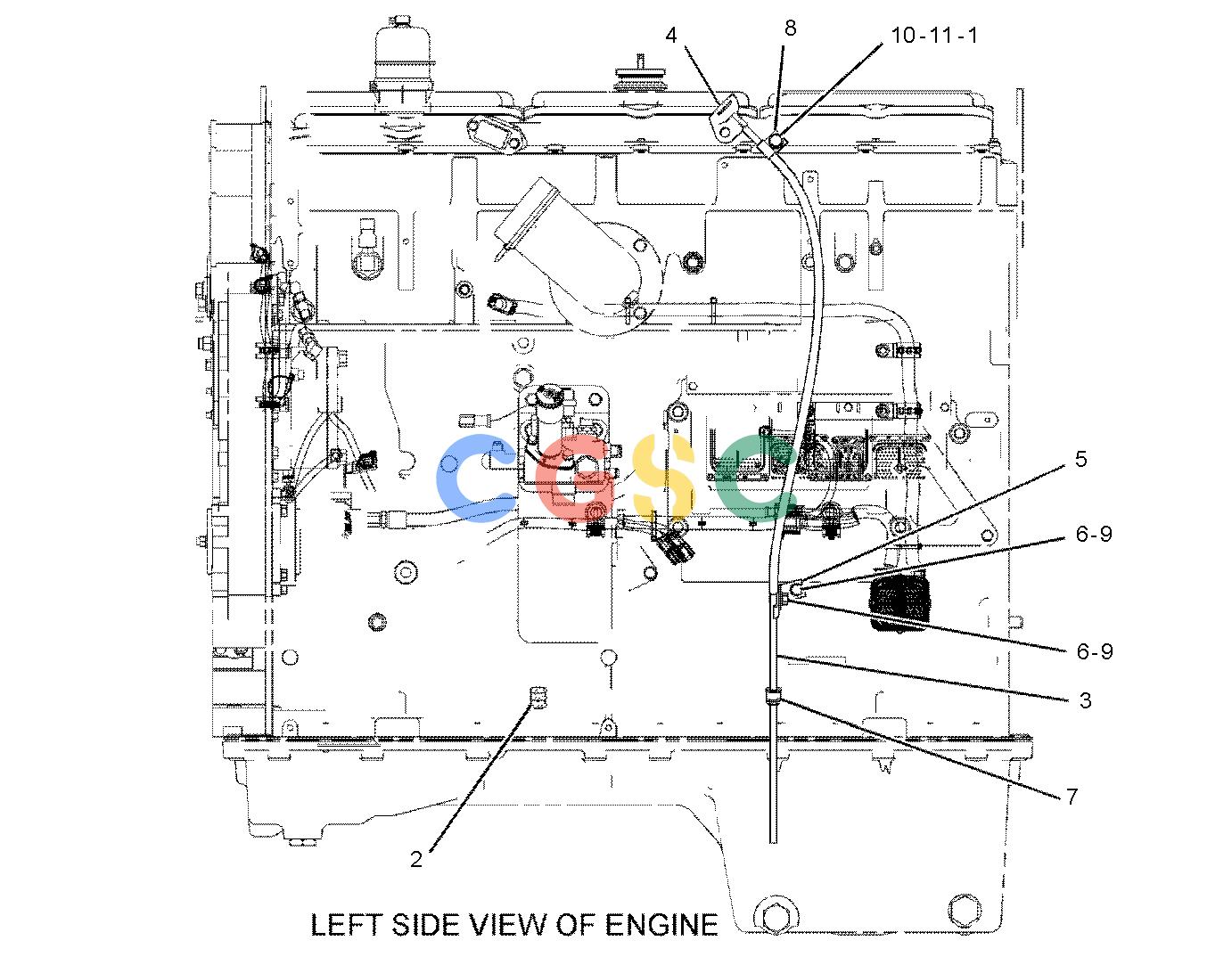

卡特零件查询（735） 302-2721: GAUGE GP-OIL LEVEL (DIPSTICK)
广数供应链运营团队, 15 02月, 2025，浏览：
1010 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-4136M | [1] | BOLT(M10X1.5X25-MM) | |
| 2. | 165-6170 | [3] | PLUG | |
| 3. | 302-2722 | [1] | TUBE AS-OIL GAUGE | |
| 4. | 302-2723 | [1] | GAUGE AS-OIL LEVEL (DIPSTICK)(ENGINE) | |
| 5. | 302-5345 | [1] | BRACKET | |
| 6. | 0S-0509 | [2] | BOLT(3/8-16X0.75-IN) | |
| 7. | 118-5068 | [1] | SEAL-O-RING | |
| 8. | 4B-0418 | [1] | CLIP | |
| 9. | 5M-2894 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 10. | 8T-4121 | [2] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 8T-4133M | [1] | NUT(M10X1.5-THD) | |
| | M | | METRIC PART |
