神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.01[10]) - CONTROL, LINE, REMOTE (N & N WITH FOOT CONTROL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
396 次

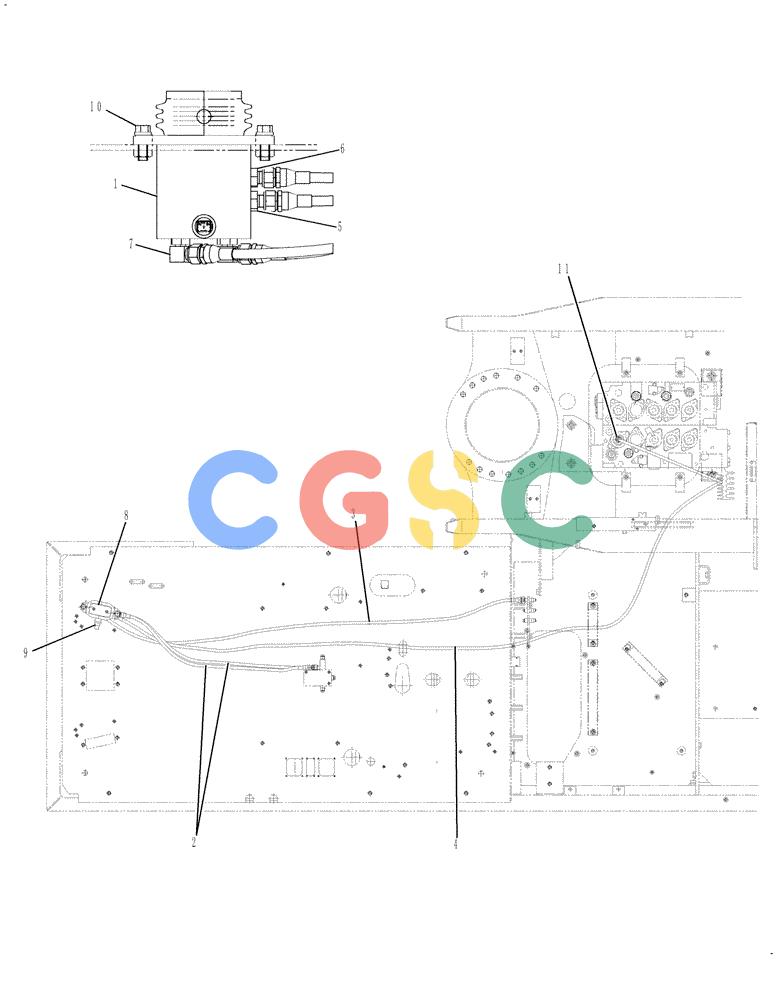

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 72204155 | [1] | HYDRAULIC VALVE | SMPilot Assy (YN30V00080F1) Superseded by part number: YN30V00080F1 |
| 2. | 87338415 | [2] | FLEXIBLE HOSE | SM(2420R349D090) Superseded by part number: 2420R349D090 |
| 3. | 87533078 | [1] | FLEXIBLE HOSE | SM(2420R349D160) Superseded by part number: 2420R349D160 |
| 4. | 87537460 | [1] | FLEXIBLE HOSE | SM(2420R349D165) Superseded by part number: 2420R349D165 |
| 5. | 87522432 | [1] | HYD CONNECTOR | SM(HH25X04004G2, Incls. O-Ring ZD12P01100) Superseded by part number: HH25X04004G2 |
| 6. | 72214744 | [1] | HYD CONNECTOR | SM1/4PFx36mm Long (ZH22X04000, Incls. O-Ring ZD12P01100) Superseded by part number: ZH22X04000 |
| 7. | 72214524 | [2] | HYD CONNECTOR | SMElbow, 90? -- PF 1/4, (ZH32X04000, Incls. O-Ring 237-6004) Superseded by part number: ZH32X04000 |
| 8. | 72214663 | [1] | PLUG | IMO(PF 1/4) (ZE72X04000, Incls. O-Ring ZD12P01100) Superseded by part number: ZE72X04000 |
| 9. | 87608371 | [1] | SENSOR | SMPressure (Low Pressure) (LC52S00019P1, Incls. O-Ring ZD12P01100) Superseded by part number: LC52S00019P1 |
| 10. | 11106434 | [2] | BOLT,Hex, M10 x 30mm, Cl 10.9, Full Thd | LECM10x30mm (ZM73C10030) Superseded by part number: 11106431 |
| 11. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
