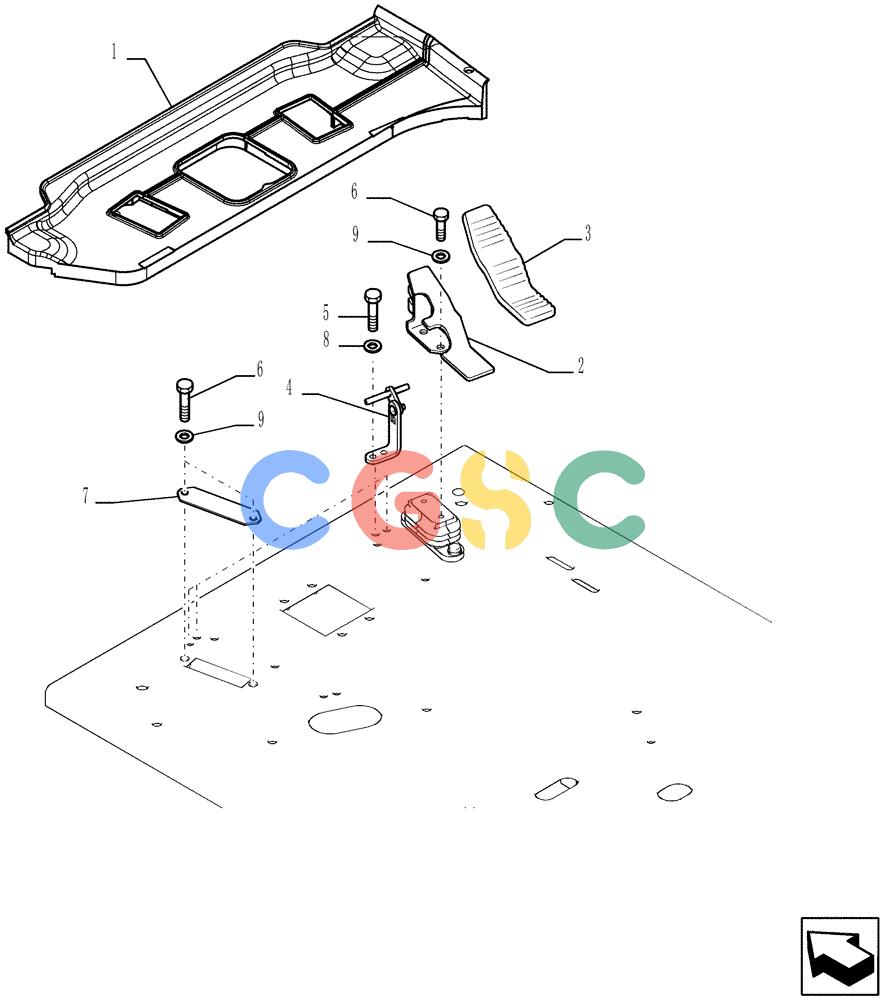

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.01[11]) - PEDAL (N & B WITH FOOT CONTROL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
1025 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YN26M00074P1 | [1] | CARPET | SM |
| 2. | 87539195 | [1] | PEDAL | SM(YN03M01852P1) Superseded by part number: YN03M01852P1 |
| 3. | 87539205 | [1] | RUBBER PEDAL PAD | SM(YN03M01858P1) Superseded by part number: YN03M01858P1 |
| 4. | 87539206 | [1] | BRACKET | SM(YN03M01684P1) Superseded by part number: YN03M01684P1 |
| 5. | 16043434 | [4] | BOLT,Hex, M8 x 1.25 x 20mm, Cl 10.9, Full Thd | LECM08x1.25x20mm (ZM73C08020) Incl 8 Superseded by part number: 16043431 |
| 6. | 11106034 | [4] | BOLT,Hex, M10 x 20, 10.9, Full Thd | BURM10x1.50x20mm (ZM73C10020) Incl 9 Superseded by part number: 11106031 |
| 7. | 87746013 | [1] | PLATE | SM(YY55M01009P1) |
| 8. | 14496531 | [1] | WASHER,8.4mm ID x 17mm OD x 1.6mm Thk | LEC(ZW16P08000) Incl in 5 Superseded by part number: 86624184 |
| 9. | 14496631 | [1] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LECM10 X 21 X 2 (ZW16X10000) Incl in 6 Superseded by part number: 14496621 |
