神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.02[09]) - CONTROL, LINE, REMOTE (N & B WITH HAND CONTROL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
601 次

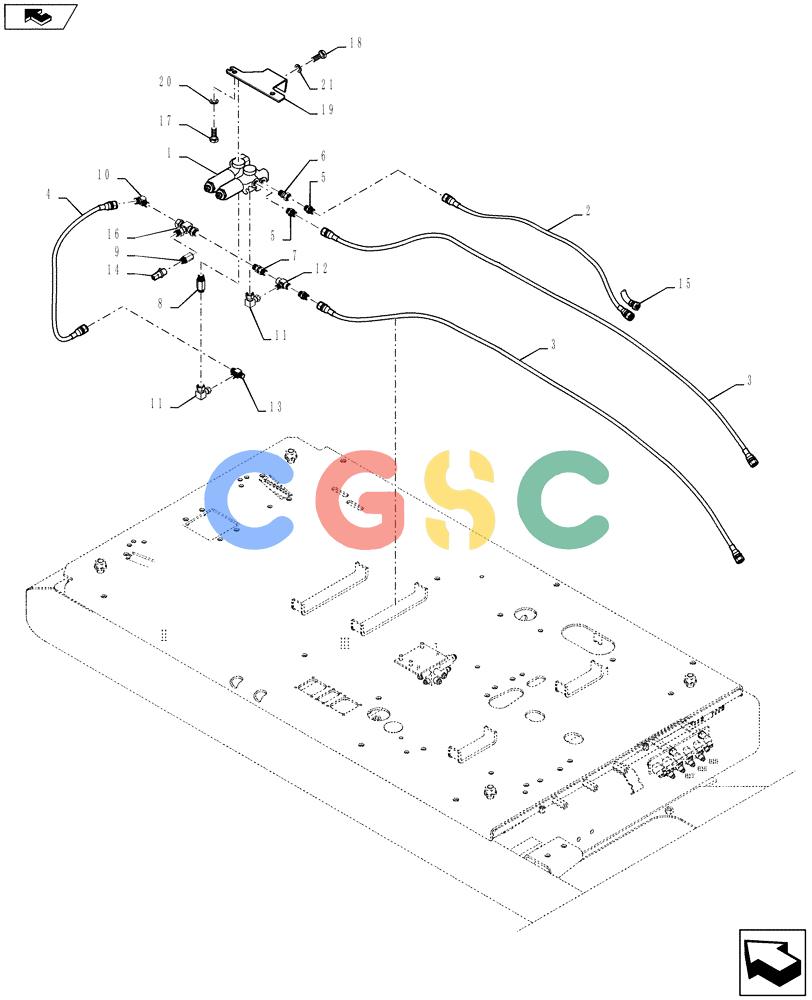

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | PW35V00002F1 | [1] | SOLENOID VALVE | KOB(Used Nibbler Open/Close Proportional, Revolution Left/Right Proportional, Extra Proportional Left/Right) |
| 2. | 87699392 | [1] | FLEXIBLE HOSE | SM(2420R349D086) L=860 Superseded by part number: HX21E04086DX |
| 3. | 87707919 | [1] | FLEXIBLE HOSE | SM(LS68H01016DB) L=1550 Superseded by part number: HX33L04034DY |
| 3. | LS68H01016DH | [1] | HOSE,6.3mm ID x 1600mm L | KOBL=1600 |
| 4. | 87707919 | [1] | FLEXIBLE HOSE | SM(HX33L04034DY) L=340 Superseded by part number: HX33L04034DY |
| 5. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB |
| 6. | HH25R04004G5 | [1] | HYD CONNECTOR | KOBw/filter (PF 1/4)(Incl O-Ring ZD12P01100) |
| 7. | 2444Z2294 | [1] | HYD CONNECTOR | KOB |
| 8. | 72961286 | [1] | HYD CONNECTOR | IMO(2444T2524D2) Superseded by part number: 2444T2524D2 |
| 9. | 72150180 | [1] | HYD CONNECTOR | SM(2444Z4252) Superseded by part number: 2444Z4252 |
| 10. | ZH32X04000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOB |
| 11. | 2444Z2894 | [2] | 90 ELBOW | KOB |
| 12. | 2444T2529 | [1] | TEE | KOB |
| 13. | ZH52X04000 | [1] | TEE,30 Degree Fl, Male, PF 1/4" x 1/4" x 1/4", O-Ring | KOB |
| 14. | LC52S00019P1 | [1] | SENSOR | SM(Low Pressure) (Used for Bucket, Boom Up/Down, Swing LH/RH, Arm In/Out, Travel LH/RH, P1/P2 Option, Dozer, N&B Revolution, Boom Rod Press, Boom Overload Alarm, Auto Accel, Option Selector Detect) (Incls. O-Ring ZD12P01100) |
| 15. | 72214546 | [1] | PLUG | SM(2444Z2729D1) Superseded by part number: 2444Z2729D1 |
| 16. | YB26V00002F1 | [1] | VALVE | KOB |
| 17. | ZS18C10020 | [2] | SCREW,Hex, M10 x 20mm | KOB |
| 18. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOB |
| 19. | YY68H01049P1 | [1] | BRACKET | SM |
| 20. | ZW16X10000 | [2] | WASHER | KOBID 10 x OD 21 x Th 2.0mm |
| 21. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOB |
