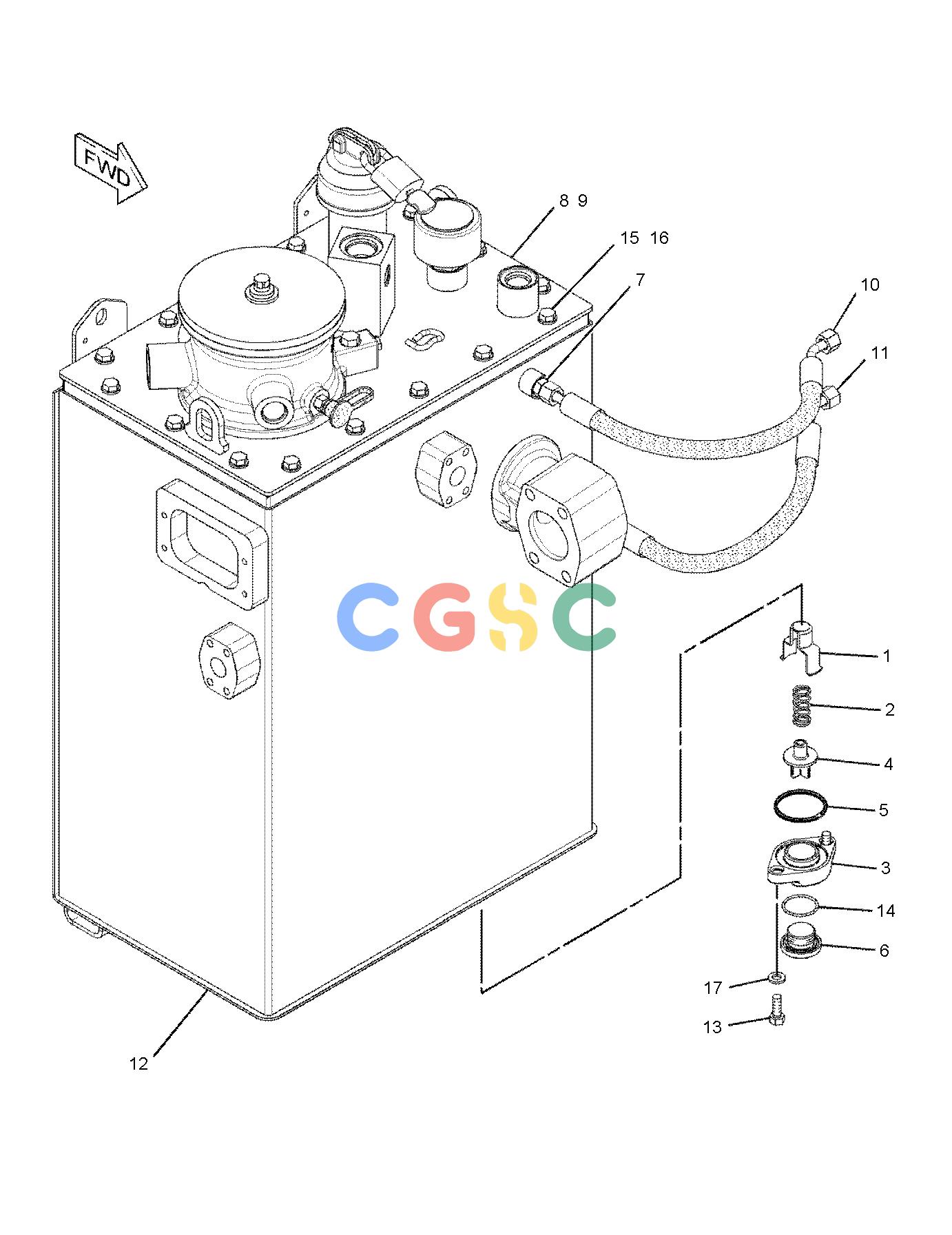

卡特零件查询（735） 186-9959: TANK GP-HYDRAULIC
广数供应链运营团队, 15 02月, 2025，浏览：
773 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1U-2827 | [1] | GUIDE-VALVE | |
| 2. | 7B-3039 | [1] | SPRING | |
| 3. | 8J-8782 | [1] | BODY-DRAIN VALVE | |
| 4. | 8J-8783 | [1] | VALVE-DRAIN(HYDRAULIC TANK DRAIN) | |
| 5. | 8T-3298 | [1] | SEAL-RECTANGULAR | |
| 6. | 9J-7031 | [1] | PLUG-DRAIN(HYDRAULIC TANK) | |
| 7. | 148-8336 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 8. | 185-1740Y | [1] | COVER GP-HYDRAULIC TANK(HYDRAULIC) | |
| 9. | 192-4900 | [1] | GASKET | |
| 10. | 194-5444I | [1] | HOSE AS | |
| 11. | 194-5445I | [1] | HOSE AS | |
| 12. | 293-5213 | [1] | TANK AS-HYDRAULIC | |
| 13. | 4L-6454 | [2] | BOLT(3/8-16X1-IN) | |
| 14. | 5M-2057 | [1] | SEAL-O-RING | |
| 15. | 8T-4121 | [16] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4136M | [16] | BOLT(M10X1.5X25-MM) | |
| 17. | 8T-4896 | [2] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
