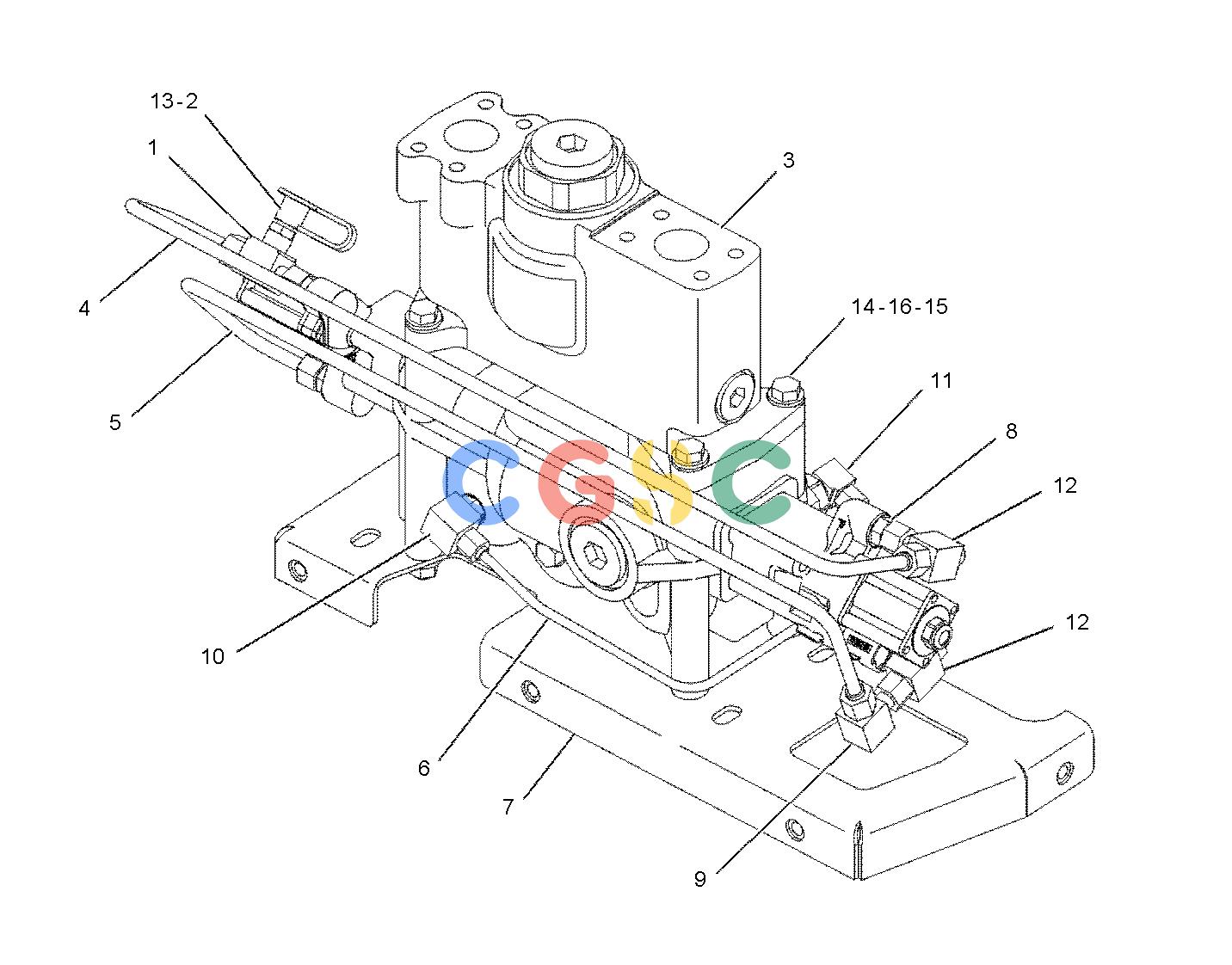

卡特零件查询（735） 152-7120: VALVE & MTG GP-HOIST CONTROL
广数供应链运营团队, 15 02月, 2025，浏览：
213 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-8902 | [1] | ADAPTER-TEE | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 2. | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 3. | 189-5772Y | [1] | VALVE GP-HOIST CONTROL | |
| 4. | 189-9263 | [1] | TUBE AS | |
| 5. | 189-9264 | [1] | TUBE AS | |
| 6. | 206-8994 | [1] | TUBE AS | |
| 7. | 192-7706 | [1] | PLATE AS | |
| 8. | 6V-8636 | [4] | CONNECTOR | |
| | 3J-1907 | [4] | SEAL-O-RING | |
| | 6V-8397 | [4] | SEAL-O-RING | |
| 9. | 6V-9850 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 10. | 6V-8627 | [1] | ELBOW | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 11. | 6V-8628 | [1] | ELBOW | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| 12. | 6V-9843 | [2] | TEE | |
| | 6V-8397 | [4] | SEAL-O-RING | |
| 13. | 6V-0852 | [1] | CAP-DUST | |
| 14. | 7X-7960M | [4] | BOLT(M12X1.75X220-MM) | |
| 15. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 16. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
