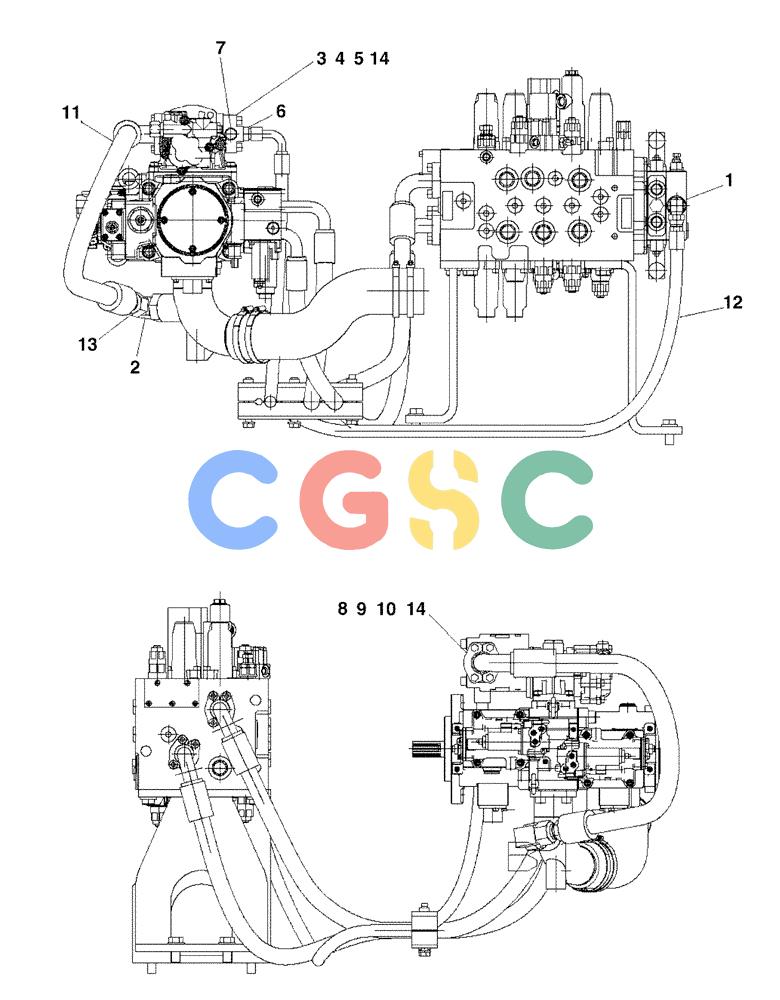

| 1. | 72962254 | [1] | ELBOW | KOB(2444R399D3) Superseded by part number: 2444R399D3 |
| 2. | 72106698 | [1] | HYD CONNECTOR | SM(YM03H01078P1) |
| 3. | YN30HU1006P1 | [1] | FLANGE | KOB |
| 4. | 14420534 | [4] | SCREW,M10 x 45mm, Cl 10.9 | SM(ZS28C10045) Superseded by part number: 14420531 |
| 5. | 72215443 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | SMID 33.70 ? 0.33 x OD 40mm (ZD12P03400) Superseded by part number: ZD12P03400 |
| 6. | 72214717 | [1] | HYD CONNECTOR | SM(Incls. O-Ring 237-6012) (ZH22X12000) Superseded by part number: ZH22X12000 |
| . . | 237-6012 | [1] | O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro | CAS(Part of ZH22X12000), Not Shown Superseded by part number: 167266, 79051113, 72186120 |
| 7. | 72214663 | [1] | PLUG | IMO(Incls. O-Ring ZD12P01100)(ZE72X04000) Superseded by part number: ZE72X04000 |
| . . | ZD12P01100 | [1] | O-RING | KOB(Part of ZE72X04000), ID 10.80 ? 0.18 x OD 15mm, Not Shown |
| 8. | 71404909 | [2] | CLAMP | TOR(ZE12X20000) |
| 9. | 14420334 | [4] | HEX SOC SCREW,M10 x 1.5 x 35mm, Cl 10.9, Full Thd | LECM10x1.50x35 (ZS28C10035) Superseded by part number: 14420331 |
| 10. | 70924192 | [1] | O-RING | LECID 37.70 ? 0.37 x OD 44.7mm (ZD12P03800) Superseded by part number: 14464080 |
| 11. | 87607785 | [1] | HYDRAULIC HOSE,25.40 mm ID x 850.00 mm | SM(YM03H01079D1) |
| 12. | ZX35M12190 | [1] | HOSE | KOB |
| 13. | 70931640 | [1] | O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro | LECID 23.52 ? 0.15 x OD 27.08mm (ZD12A02100) Superseded by part number: 87473574 |
| 14. | 10569474 | [8] | LOCK WASHER,10.2mm ID x 16mm ID x 2.5mm Thk | JESID 10 x OD 15.7 x Th 2.5mm (ZW26K10000) Superseded by part number: 10569471 |
| . . | YB10V00003F1 | [1] | PUMP | KOBGear |
