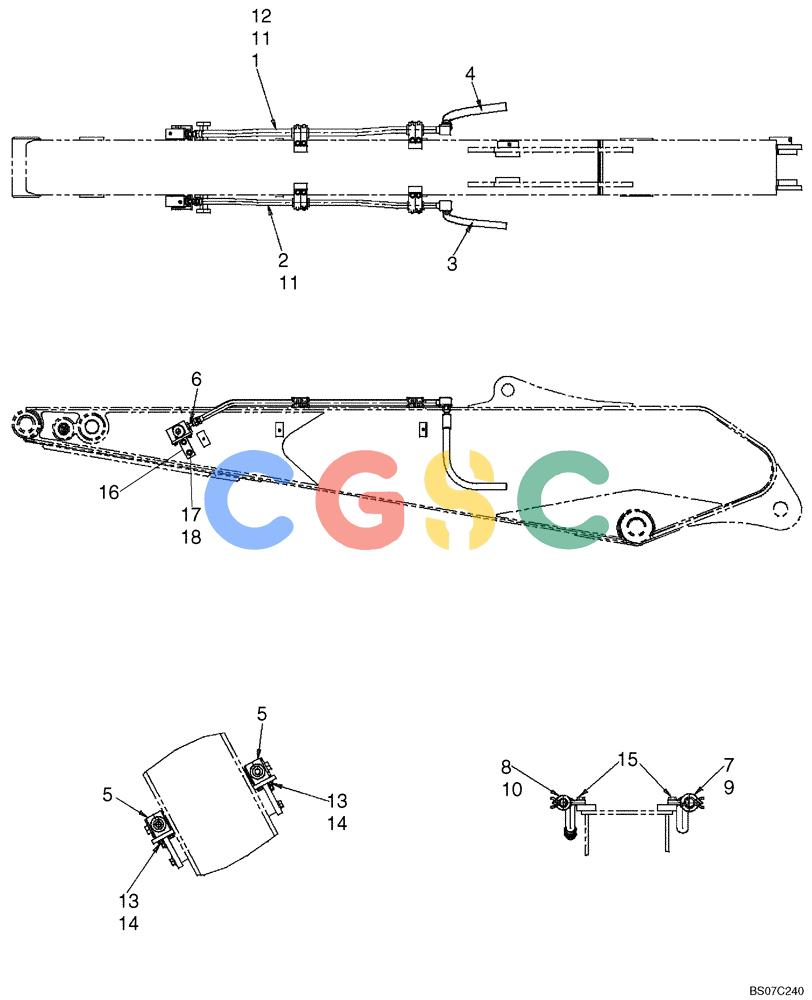

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.11) - HYD. LINE, ARM 3.1M (N & B) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
828 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM43HU1002P1 | [1] | TUBE,1261, 98.6 mm L | KOB1261mm Long (49-41/64 in) |
| 2. | YM43HU1001P1 | [1] | TUBE,1260, 98 mm L | KOB1260mm Long (49-19/32 in) 3.1M Arm |
| 3. | ZX50H12185 | [1] | HOSE | KOB1850mm Long (72-53/64 in) 3.1M Arm |
| 4. | ZX50H16185 | [1] | HOSE | KOB1850mm Long (72-53/64 in) 3.1M Arm |
| 5. | 24100P1006F1 | [2] | VALVE | KOBStop -- See Figure Superseded by part number: 24100P1006F2 |
| 6. | HG23H12012G1 | [2] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| . . | ZD12P02400 | [1] | O-RING | KOB(Part of HG23H12012G1), ID 23.70 ? 0.24 x OD 30mm, Not Shown |
| 7. | YN42H02363P1 | [4] | CLAMP,46mm ID, J Type | KOB?23x65x52mm |
| 8. | YN42H02357P1 | [4] | CLAMP,37mm ID, J Type | KOB?18.5x65x52mm 3.1M Arm Superseded by part number: 84528832 |
| 9. | YN43H01524P1 | [2] | BUSHING,34mm ID x 53mm OD x 83mm L | KOBID 34 x OD 43 x 83mm Long 3.1M Arm Superseded by part number: 84354629 |
| 10. | YN42H02319P1 | [2] | BUSHING,27.2mm ID x 34mm OD x 83mm L | SMID 27.20 x OD 34 x 83mm Long Superseded by part number: 84354627 |
| 11. | ZD12A01800 | [3] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ? 0.12 x OD 22.33mm |
| 12. | ZD12A02100 | [1] | O-RING | KOBID 23.52 ? 0.15 x OD 27.08mm |
| 13. | ZS18C08025 | [8] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 14. | ZW16H08000 | [8] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 15. | ZM73C12030 | [8] | BOLT,M12x30mm - Course Thread | KOBM12x1.75x30mm (Incls. Washer) |
| 15. | ZS18C10030 | [8] | SCREW,Hex, M10 x 30mm | KOB2.6M Arm |
| 16. | YW43H01044P1 | [2] | BRACKET | KOB |
| 17. | ZS18C12045 | [4] | SCREW,Hex, M12 x 45mm | KOBM12x1.75x45mm |
| 18. | ZW16H12000 | [4] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
