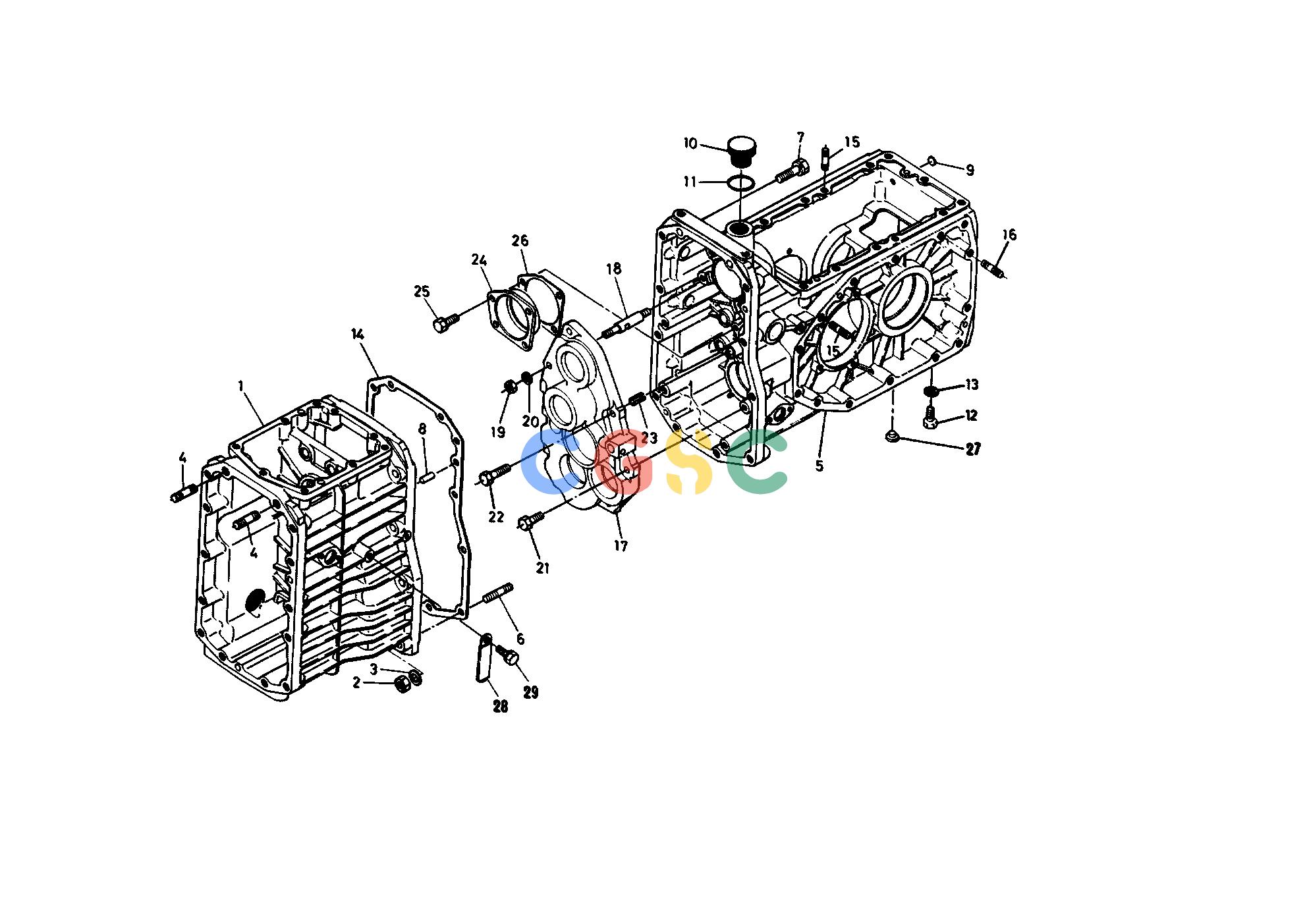

久保田零件查询T02000 TRANSMISSION CASE TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
508 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6711111110
|
[1] |
CASE TRANSMISSION
|
0.0000(lbs); 0.000
|
| 002. |
0217650100
|
[10] |
NUT
|
0.0110(lbs); 0.005
|
| 003. |
0451250100
|
[10] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 004. |
0155451245
|
[2] |
STUD
|
0.0990(lbs); 0.045
|
| 005. |
6711111120
|
[1] |
CASE DIFFERENTIAL
|
22.4400(lbs); 10.200
|
| 006. |
0155451040
|
[10] |
STUD
|
0.0638(lbs); 0.029
|
| 007. |
0112351050
|
[2] |
BOLT
|
0.0770(lbs); 0.035
|
| 008. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 009. |
0631175012
|
[2] |
PLUG EXPANSION
|
0.0044(lbs); 0.002
|
| 010. |
0631460060
|
[1] |
PLUG OIL FILLER
|
0.0638(lbs); 0.029
|
| 011. |
0481100260
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 012. |
0633135016
|
[1] |
PLUG
|
0.0880(lbs); 0.040
|
| 013. |
0471701600
|
[1] |
WASHER SEAL
|
0.0066(lbs); 0.003
|
| 014. |
6711111130
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 015. |
0155451030
|
[4] |
STUD
|
0.0440(lbs); 0.020
|
| 016. |
0155451040
|
[2] |
STUD
|
0.0638(lbs); 0.029
|
| 017. |
6780011413
|
[1] |
SUPPORT BEARING
|
5.7200(lbs); 2.600
|
| 018. |
6780011432
|
[1] |
STUD
|
0.1320(lbs); 0.060
|
| 019. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 020. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 021. |
0112350825
|
[3] |
BOLT
|
0.0286(lbs); 0.013
|
| 022. |
0112050840
|
[2] |
BOLT
|
0.0396(lbs); 0.018
|
| 023. |
6711111420
|
[2] |
PIN KNOCK
|
0.0110(lbs); 0.005
|
| 024. |
6711111510
|
[1] |
HOLDER BEARING
|
0.3630(lbs); 0.165
|
| 025. |
0112350820
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 026. |
6711111540
|
[1] |
SHIM 1
|
0.0066(lbs); 0.003
|
| 027. |
6721111140
|
[4] |
PLUG M12
|
0.0022(lbs); 0.001
|
| 028. |
3224034490
|
[1] |
CLAMP CORD 2
|
0.0066(lbs); 0.003
|
| 029. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
