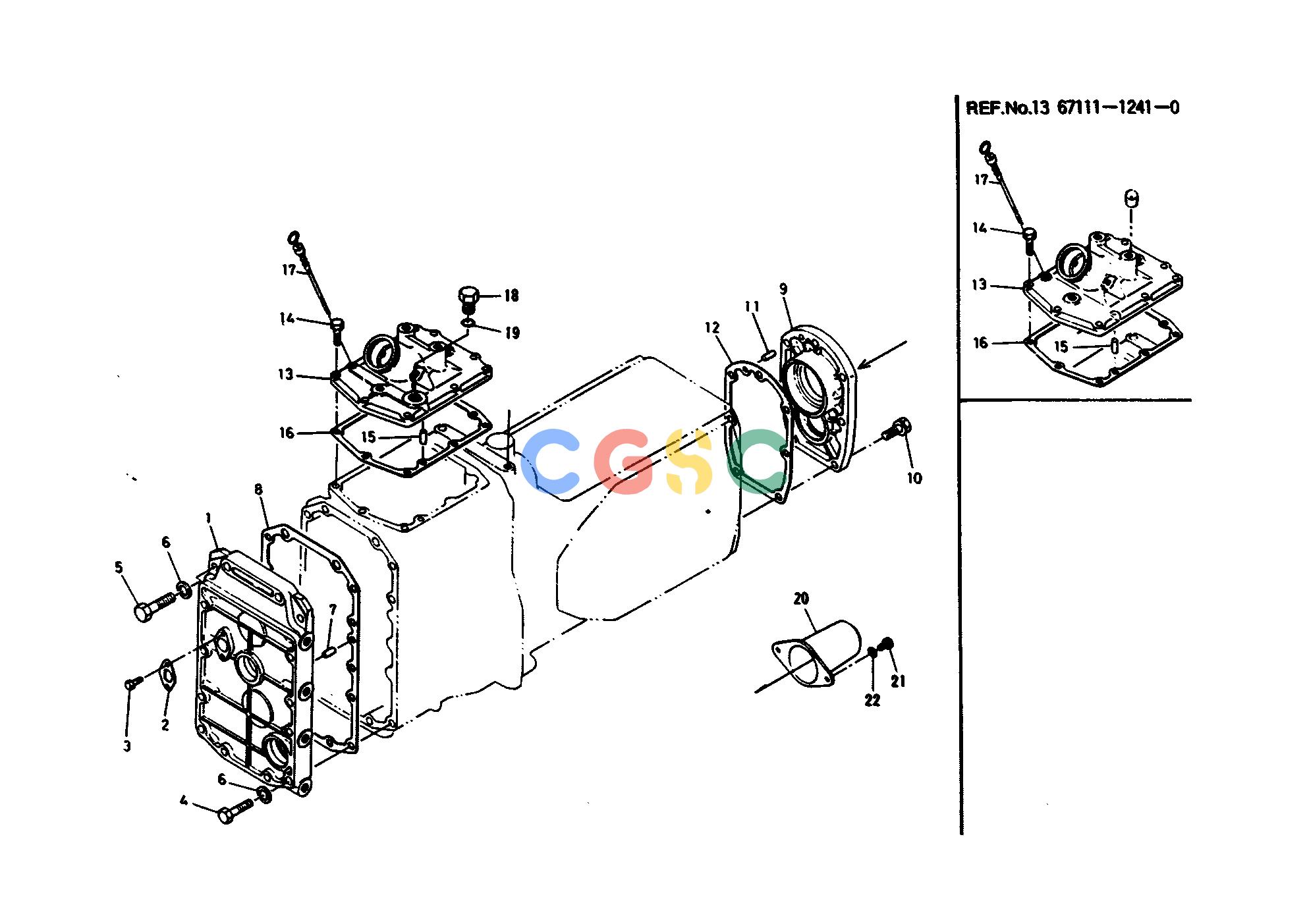

久保田零件查询T02100 COVER TRANSMISSIONEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
868 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
6711112110
|
[1] |
COVER FRONT
|
4.5540(lbs); 2.070
|
| 002. |
6711112120
|
[1] |
PLATE LOCK
|
0.0286(lbs); 0.013
|
| 003. |
0120250614
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 004. |
0115351050
|
[10] |
BOLT
|
0.0660(lbs); 0.030
|
| 005. |
0115351030
|
[2] |
BOLT
|
0.0506(lbs); 0.023
|
| 006. |
0451250100
|
[12] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 007. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 008. |
6711112130
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 009. |
6711112210
|
[1] |
COVER REAR
|
3.6740(lbs); 1.670
|
| 010. |
0112051035
|
[7] |
BOLT
|
0.0660(lbs); 0.030
|
| 011. |
0501200818
|
[1] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 012. |
6711112220
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 013. |
6711112410
|
[1] |
COVER CASE FRONT
|
1.2430(lbs); 0.565
|
| 013. |
6780012410
|
[1] |
COVER CASE FRONT
|
1.2760(lbs); 0.580
|
| 013. |
6784012410
|
[1] |
COVER CASE FRONT
|
1.3640(lbs); 0.620
|
| 014. |
0112350828
|
[9] |
BOLT
|
0.0308(lbs); 0.014
|
| 015. |
0501200818
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 016. |
6711112420
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 017. |
6711112430
|
[1] |
GAUGE OIL
|
0.0396(lbs); 0.018
|
| 018. |
0631460040
|
[1] |
PLUG
|
0.0352(lbs); 0.016
|
| 019. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 020. |
6711161510
|
[1] |
COVER PTO
|
0.0770(lbs); 0.035
|
| 021. |
0120250612
|
[2] |
BOLT
|
0.0110(lbs); 0.005
|
| 022. |
0401350060
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
