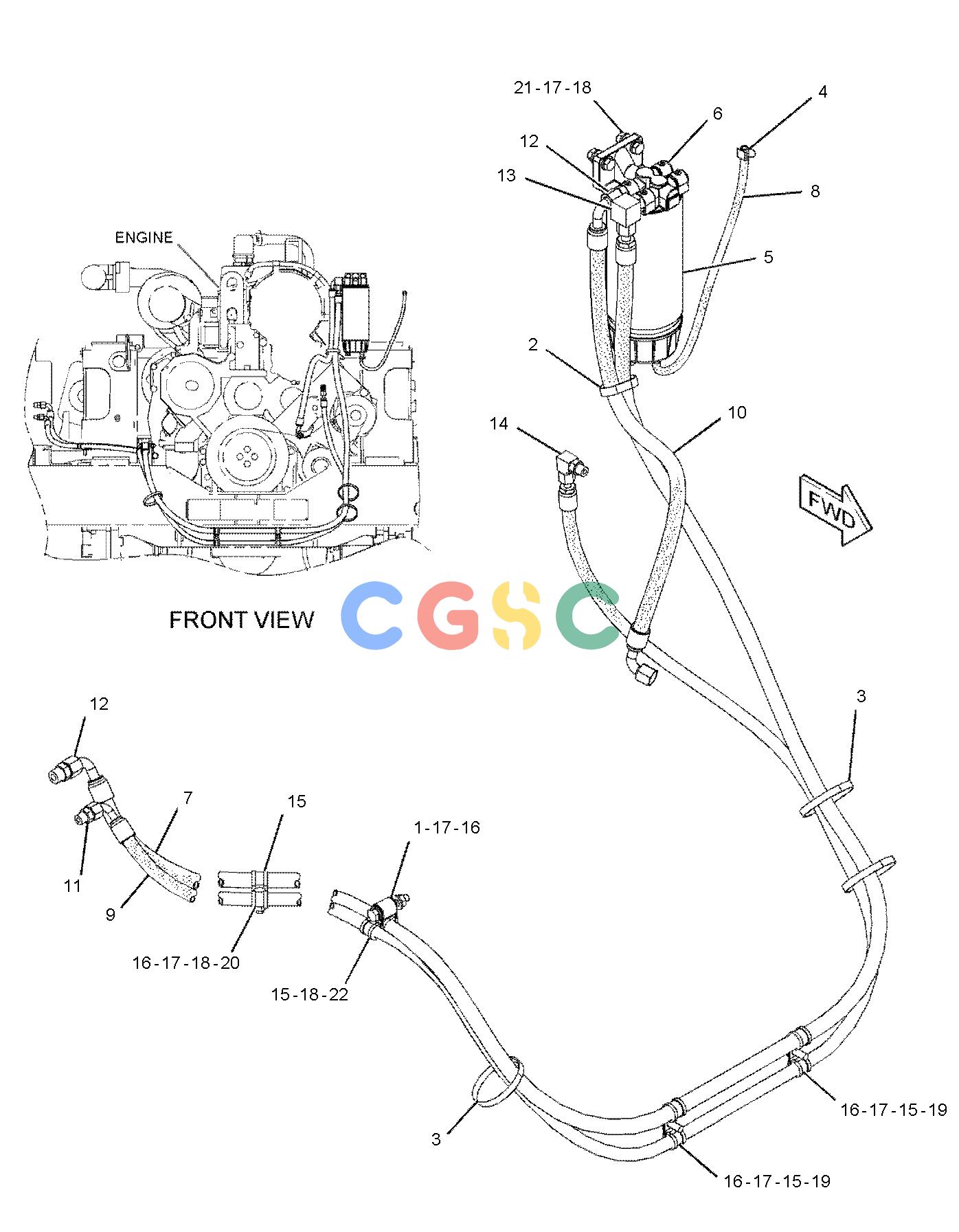

卡特零件查询（735） 152-7113: LINES GP-FUEL
广数供应链运营团队, 15 02月, 2025，浏览：
830 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4U-6354 | [3] | BOSS | |
| 2. | 6U-3890 | [1] | CLIP | |
| 3. | 133-5671Y | [1] | FILTER GP-WATER SEP & FUEL | |
| 4. | 136-9354I | [1] | HOSE AS | |
| 5. | 148-8395 | [2] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8005 | [1] | PLUG(3/4-16-THD) | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| 6. | 200-7743I | [1] | HOSE AS | |
| 7. | 8C-3681E | | HOSE(50-CM) | |
| 8. | 207-9506I | [1] | HOSE AS | |
| 9. | 148-8336 | [1] | CONNECTOR AS | |
| | 6V-8636 | [1] | CONNECTOR | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| 10. | 148-8340 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 6V-8639 | [1] | CONNECTOR | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 11. | 148-8364 | [1] | ELBOW AS | |
| | 6V-8625 | [1] | ELBOW | |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| 12. | 148-8378 | [1] | ELBOW AS | |
| | 6V-8724 | [1] | ELBOW | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| 13. | 3U-2753 | [4] | CLIP | |
| 14. | 3U-2754 | [4] | CLIP(LOOP) | |
| 15. | 8T-4121 | [9] | WASHER-HARD(11X21X2.5-MM THK) | |
| 16. | 8T-4133M | [3] | NUT(M10X1.5-THD) | |
| 17. | 8T-4195M | [1] | BOLT(M10X1.5X30-MM) | |
| 18. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 19. | 8T-6466M | [3] | BOLT(M10X1.5X60-MM) | |
| 20. | 6U-0456 | [2] | STRAP | |
| | E | | ORDER BY THE CENTIMETER |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
