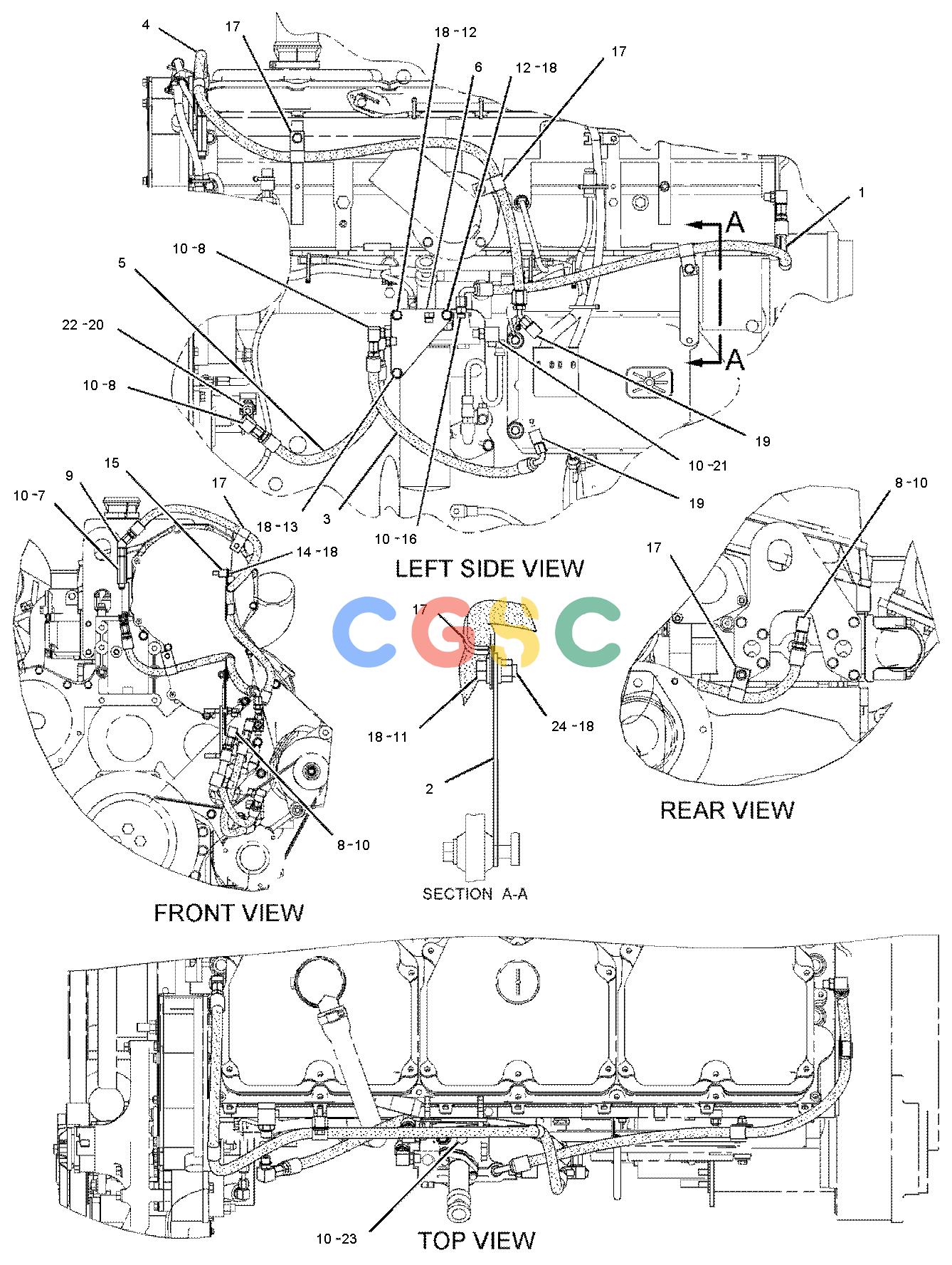

卡特零件查询（735） 188-9138: LINES GP-FUEL
广数供应链运营团队, 15 02月, 2025，浏览：
897 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 4P-0902I | [1] | HOSE AS | |
| 2. | 8N-4326 | [1] | BRACE | |
| 3. | 113-9002I | [1] | HOSE AS | |
| 4. | 136-9141I | [1] | LINE-FUEL | |
| 5. | 136-9497I | [1] | HOSE AS | |
| 6. | 189-1917 | [1] | PLATE | |
| 7. | 030-7937 | [1] | CONNECTOR-PORT | |
| 8. | 030-7947 | [4] | ADAPTER-ELBOW | |
| 9. | 030-7962 | [1] | ELBOW | |
| 10. | 033-6042 | [8] | SEAL-O-RING | |
| 11. | 0L-1351 | [1] | BOLT(3/8-16X0.875-IN) | |
| 12. | 0L-2070 | [2] | BOLT(3/8-16X2.25-IN) | |
| 13. | 0S-1571 | [1] | BOLT(3/8-16X1.75-IN) | |
| 14. | 0S-1591 | [1] | BOLT(3/8-16X1.5-IN) | |
| 15. | 2A-2677 | [1] | SPACER(10.7X17.14X19.05-MM THK) | |
| 16. | 2R-6806 | [1] | CONNECTOR | |
| 17. | 4D-7735 | [5] | CLIP | |
| 18. | 5M-2894 | [6] | WASHER-HARD(10.2X18.5X2.5-MM THK) | |
| 19. | 6K-9194 | [2] | ELBOW | |
| 20. | 6V-8625 | [1] | ELBOW | |
| 21. | 6V-8627 | [1] | ELBOW | |
| 22. | 8L-2786 | [1] | SEAL-O-RING | |
| 23. | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 24. | 9S-8752 | [1] | NUT-FULL(3/8-16-THD) | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
