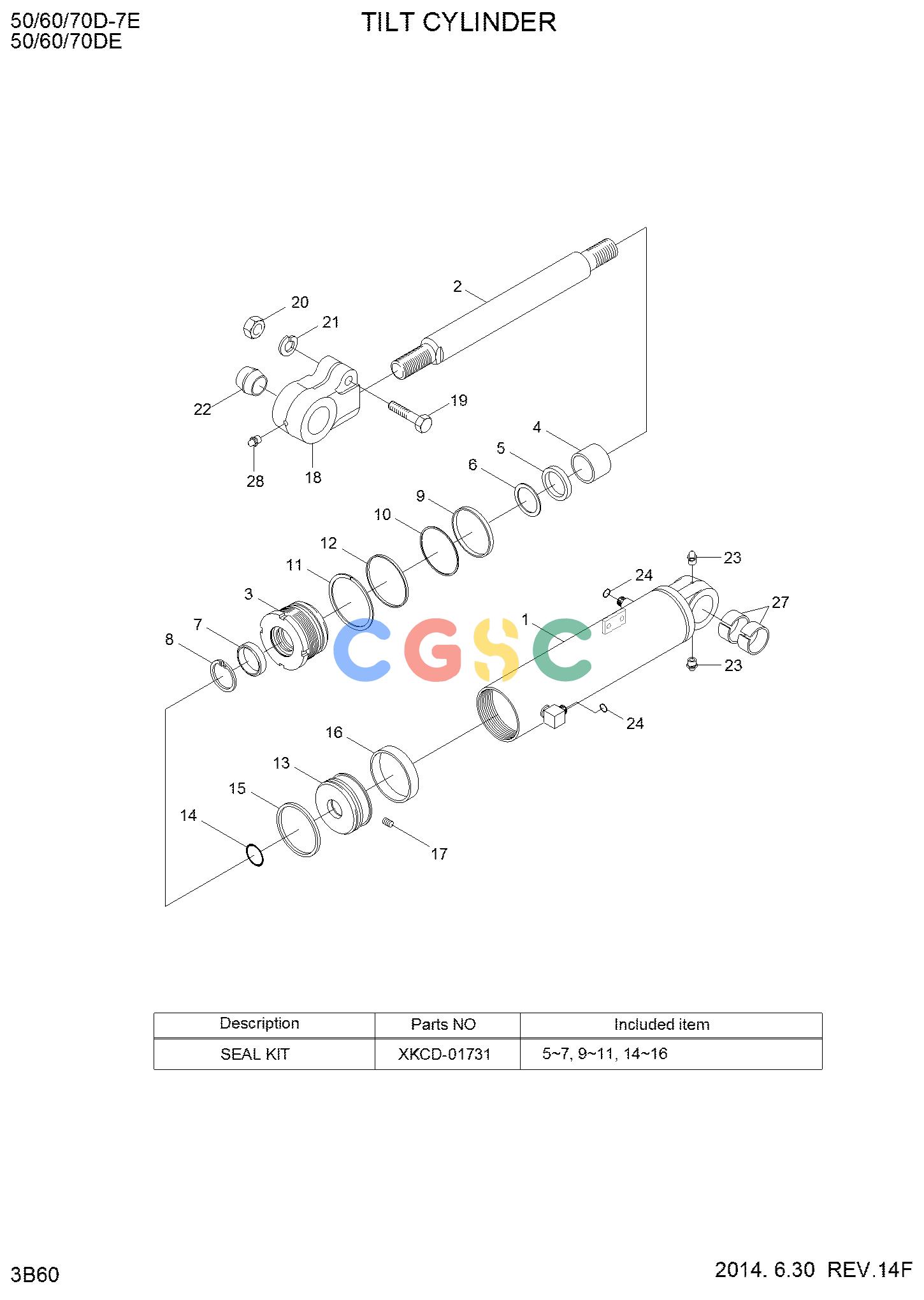

现代零件查询50/60/70D-7A TILT CYLINDEREPC Hyundai
广数供应链运营团队, 15 02月, 2025，浏览：
898 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| . |
31FQ-08500
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08501
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08500
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08501
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08500
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08501
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08600
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08601
|
[1] |
CYLINDER ASSY
|
|
| . |
31FQ-08600
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08601
|
[1] |
CYLINDER ASSY
|
|
| . |
31FQ-08600
|
[1] |
TILT CYLINDER ASSY
|
|
| . |
31FQ-08601
|
[1] |
CYLINDER ASSY
|
|
| 1. |
XKCD-01715
|
[1] |
TUBE ASSY
|
|
| 2. |
XKCD-01716
|
[1] |
ROD
|
|
| 2. |
XKCD-03760
|
[1] |
ROD
|
|
| 3. |
XKCD-01717
|
[1] |
ROD COVER
|
|
| 4. |
XKCD-01031
|
[1] |
BUSHING-ROD
|
|
| K5. |
XKCD-01718
|
[1] |
U-PACKING
|
|
| K6. |
XKCD-01719
|
[1] |
BACK UP RING
|
|
| K7. |
XKCD-00846
|
[1] |
DUST WIPER
|
|
| 8. |
XKCD-01720
|
[1] |
STOP RING
|
|
| K9. |
XKCD-01012
|
[1] |
O-RING
|
|
| K10. |
XKCD-01013
|
[1] |
BACK UP RING
|
|
| K11. |
XKCD-01014
|
[1] |
O-RING
|
|
| 12. |
XKCD-01721
|
[1] |
WASHER
|
|
| 13. |
XKCD-01722
|
[1] |
PISTON
|
|
| 13. |
XKCD-03761
|
[1] |
PISTON
|
|
| K14. |
XKCD-00499
|
[1] |
O-RING
|
|
| K15. |
XKCD-01723
|
[1] |
PISTON SEAL
|
|
| K16. |
XKCD-01724
|
[1] |
WEAR RING
|
|
| 17. |
XKCD-01725
|
[1] |
NUT-HEX,NYLON
|
|
| 17. |
XKCD-01205
|
[1] |
SCREW-SET
|
|
| 18. |
XKCD-01726
|
[1] |
EYE
|
|
| 19. |
XKCD-01727
|
[1] |
BOLT-HEX
|
|
| 20. |
XKCD-01728
|
[1] |
NUT-HEX
|
|
| 21. |
XKCD-00470
|
[1] |
SPRING WASHER
|
|
| 22. |
XKCD-01729
|
[1] |
SPHERICAL BEARING
|
|
| 23. |
XKCD-01048
|
[2] |
NIPPLE-GREASE
|
|
| 24. |
XKCD-00992
|
[2] |
O-RING
|
|
| 27. |
XKCD-01730
|
[2] |
ROD BUSH
|
|
| 28. |
XKCD-01024
|
[1] |
NIPPLE-GREASE
|
|
| K. |
XKCD-01731
|
[1] |
SEAL KIT
|
|
| K. |
XKCD-01731
|
[1] |
SEAL KIT
|
|
