神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.17[04]) - CAB GUARD, ROOF Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
576 次

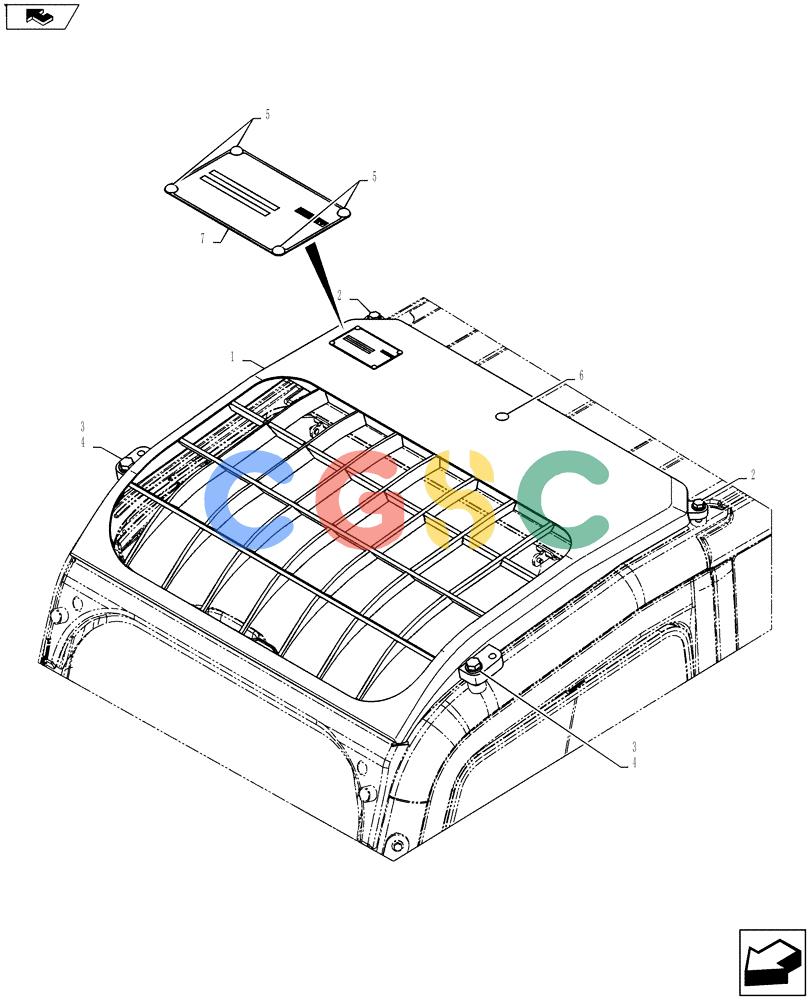

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| .. | 47682003 | [1] | KIT | KOBGuard Assembly, Incl 1 - 7 |
| 1. | LQ02C01213P1 | [1] | GUARD | SM |
| 2. | ZM73C12035 | [2] | BOLT,M12x35mm - Course Thread | KOBSems |
| 3. | ZS18C16045 | [2] | SCREW,Hex, M16 x 45mm | KOBCap |
| 4. | ZW16H16000 | [2] | WASHER | KOB |
| 5. | 4020Z64 | [4] | RIVET | KOB Superseded by part number: 2420P623D7 |
| 6. | LQ02C01310P1 | [1] | PLATE | KOB |
| 7. | NSS | [1] | NOT SOLD SEPARAT | CONPlate Number |
