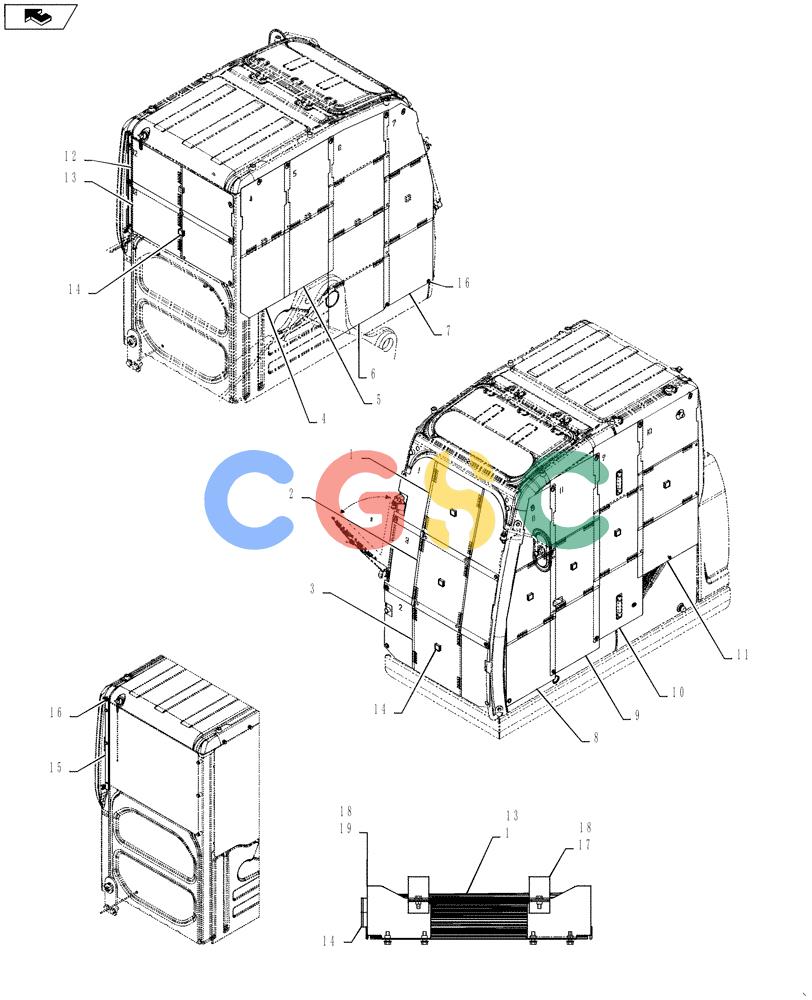

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (88.100.18) - CAB GUARD, VANDALISM Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
212 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN25C00015F1 | [1] | GUARD ASSY. | KOBVandalism Guard Kit, Incl 1 - 19 |
| 1. | LQ25C01072P1 | [1] | GUARD | KOB |
| 2. | LQ25C01073P1 | [1] | GUARD | KOB |
| 3. | LQ25C01074P1 | [1] | GUARD | KOB |
| 4. | LQ25C01075P1 | [1] | GUARD | KOB |
| 5. | LQ25C01076P1 | [1] | GUARD | KOB |
| 6. | LQ25C01077P1 | [1] | GUARD | KOB |
| 7. | LQ25C01078P1 | [1] | GUARD | KOB |
| 8. | LQ25C01079P1 | [1] | GUARD | KOB |
| 9. | LQ25C01080P1 | [1] | GUARD | KOB |
| 10. | LQ25C01081P1 | [1] | GUARD | KOB |
| 11. | LQ25C01082P1 | [1] | GUARD | KOB |
| 12. | LQ25C01083P1 | [1] | GUARD | KOB |
| 13. | LQ25C01084P1 | [1] | GUARD | KOB |
| 14. | LQ25C01070P1 | [13] | MAGNET PLATE | KOB |
| 15. | LQ25C01062P1 | [1] | PLATE | KOB |
| 16. | ZM73C08016 | [7] | BOLT,M8x16mm - Course Thread | KOB |
| 17. | YN25C01040P1 | [2] | SUPPORT | KOB |
| 18. | ZM73C08025 | [12] | BOLT,M8x25mm - Course Thread | KOB |
| 19. | YN25C01038P1 | [2] | BRACKET | KOB |
