神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.119.AB[02]) - GUARD INSTALL (COMMON) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
509 次

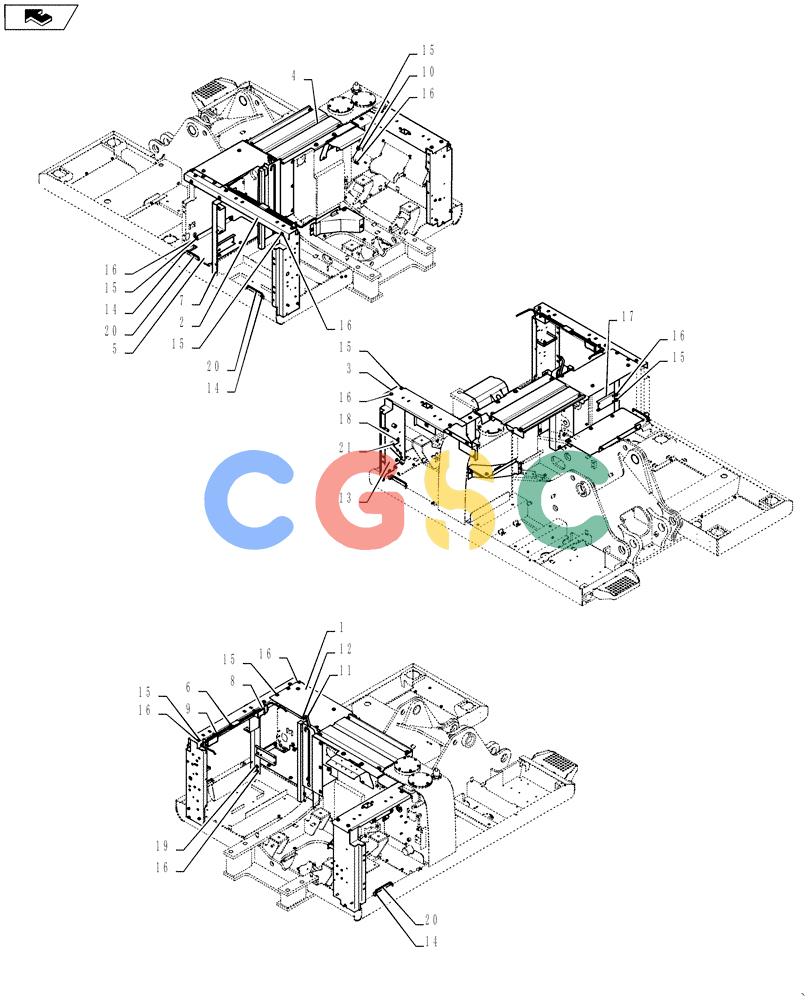

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YM21C01309F1 | [1] | COVER ASSY | SM(Used without Handrail) |
| 1. | YM21C01367F1 | [1] | COVER ASSY | SM(Used with Handrail) |
| 2. | YM21C01308P1 | [1] | BEAM | SM(Used without Handrail) |
| 2. | 47464552 | [1] | BEAM | SM(Used with Handrail) |
| 3. | YM21C01336P1 | [1] | COVER ASSY | SMAssembly |
| 4. | 87587958 | [1] | GUARD | SM(YB21C01433P1) |
| 5. | YM21C01301P1 | [1] | COVER | SM |
| 6. | 72212948 | [1] | BRACKET | SM(YN21C01716P1) |
| 7. | 87558718 | [1] | PILLAR | SM(YN21C03704P1) |
| 8. | 87361700 | [1] | SPRING | SM(YB21C01228P1) |
| 9. | 87361702 | [1] | SPRING | SM(YB21C01229P1) |
| 10. | YM21C01346P1 | [1] | PLATE | SMAssembly |
| 11. | 87361703 | [1] | BAR | SM(YB21C01230P1) |
| 12. | 87361706 | [1] | COTTER PIN,7mm x 48.8mm L | SM(2419R906) Superseded by part number: 2419R9D6 |
| 13. | 87576553 | [1] | PLATE | SM(YB21C01441P1) |
| 14. | 72275189 | [3] | COTTER PIN | IMO(2419R902) |
| 15. | 11112234 | [31] | BOLT,Hex, M12 x 25mm, Cl 10.9, Full Thd | LEC(ZS18C12025) Superseded by part number: 11112231 |
| 16. | 72201225 | [31] | WASHER,13mm ID x 30mm OD x 3.2mm Thk | IMO(2418T10357) Superseded by part number: 4952483 |
| 17. | 87362153 | [1] | PLATE | SM(YN21C01267P1) |
| 18. | 14496631 | [2] | WASHER,10.5mm ID x 21mm OD x 2mm Thk | LECM10 X 21 X 2 (ZW16X10000) Superseded by part number: 14496621 |
| 19. | 11112434 | [7] | BOLT,Hex, M12 x 30mm, Cl 10.9, Full Thd | LEC(ZS18C12030) Superseded by part number: 11112431 |
| 20. | 87537856 | [3] | ROD | SM(YM21C01171P1) Superseded by part number: 84529322 |
| 21. | 11106034 | [5] | BOLT,Hex, M10 x 20, 10.9, Full Thd | BUR(ZS18C10020) Superseded by part number: 11106031 |
