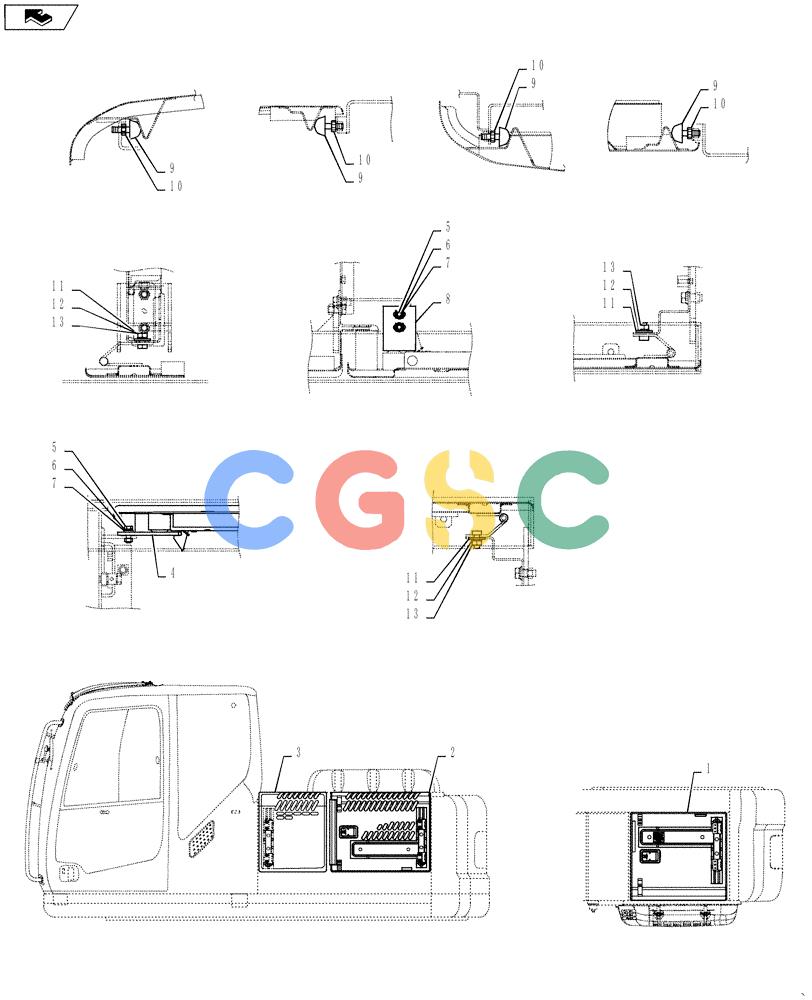

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.119.AB[03]) - GUARD INSTALL (SIDE PANEL) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
214 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 87359943 | [1] | LID | SM(YB21C01195F1) |
| 2. | 87359926 | [1] | LID | SM(YB21C01184F1) |
| 3. | YM21C01316F1 | [1] | PANEL | SM |
| 4. | 87531612 | [1] | PLATE | SM(YN21C03334P1) |
| 5. | 16043634 | [4] | SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd | LEC(ZS18C08025) Superseded by part number: 16043637 |
| 6. | 10516674 | [4] | LOCK WASHER,M8 | TTF(ZW26X08000) Superseded by part number: 83990583 |
| 7. | 12654401 | [4] | WASHER,8.15mm ID x 17mm OD x 3mm Thk | MKT(ZW16H08000) Superseded by part number: 12654421 |
| 8. | 87531613 | [1] | PLATE | SM(YN21C03335P1) |
| 9. | 72201210 | [4] | RUBBER BUMPER | IMO(YN21C03212P1) Superseded by part number: 84530718 |
| 10. | 12164721 | [4] | NUT,M10 x 1.25, Cl 10 | TTF(ZN18F10008) |
| 11. | 72201224 | [12] | WASHER | IMO(2418T12346) |
| 12. | 10516874 | [12] | LOCK WASHER,10.2mm ID x 17.7mm OD x 2.5mm Thk | TTF(ZW26X10000) Superseded by part number: 140028 |
| 13. | 11701721 | [12] | NUT,M10, Cl 10 | LEC(ZN18C10008) Superseded by part number: 17038131 |
