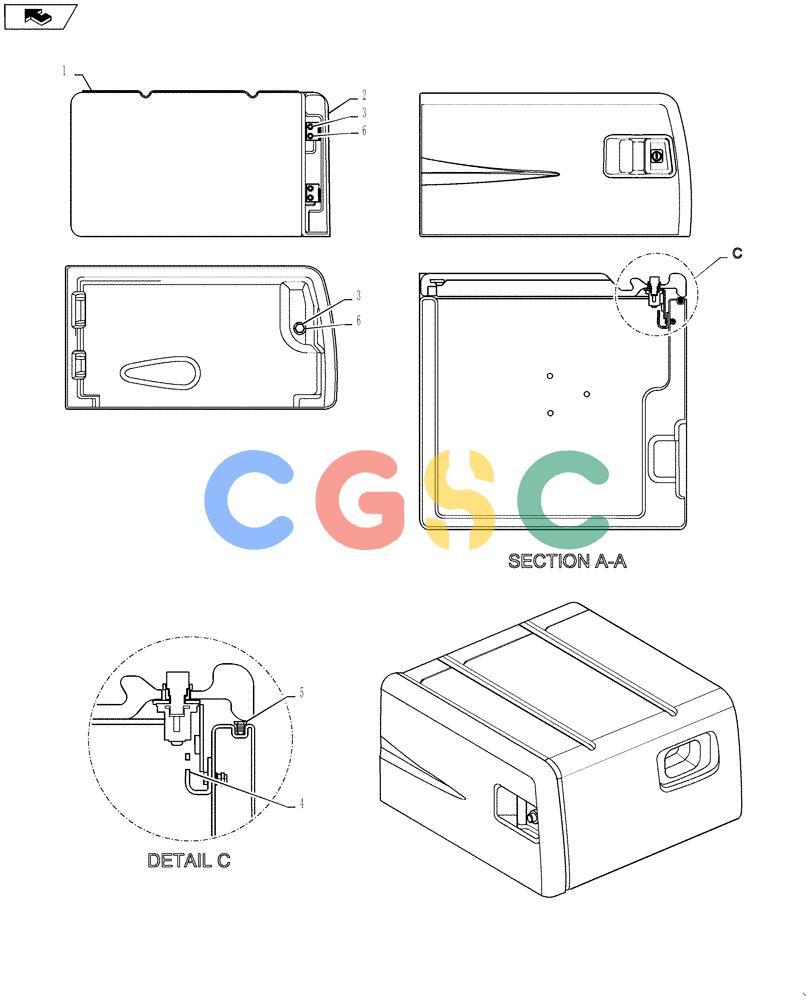

神钢零件查询(SK170 ACERA M-9) - CRAWLER EXCAVATOR - TIER 3 NON-REGULATED (1/12-12/13) (90.119.AB[05]) - GUARD INSTALL (TOOL BOX) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
879 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YB21C01596P1 | [1] | GUARD | KOBAssembly, Incl 2 - 6 |
| 2. | YN21C05277P1 | [1] | GUARD | KOB |
| 3. | 10902034 | [6] | SCREW | LEC Superseded by part number: 10902030 |
| 4. | LC21C03159P1 | [1] | PLATE | KOBAssembly |
| 5. | YN21C05320P1 | [1] | RUBBER SEAL,900mm L | SM |
| 6. | 14496431 | [6] | WASHER,6.4mm ID x 12.5mm OD x 1.6mm Thk | LEC Superseded by part number: 86588450 |
